Displacement

Year

Model

Finish line

Parts catalogue

Parts diagram

CLUTCH 2

TRANSMISSION FOR YAMAHA TMAX 2023

FRAME

Item numbers

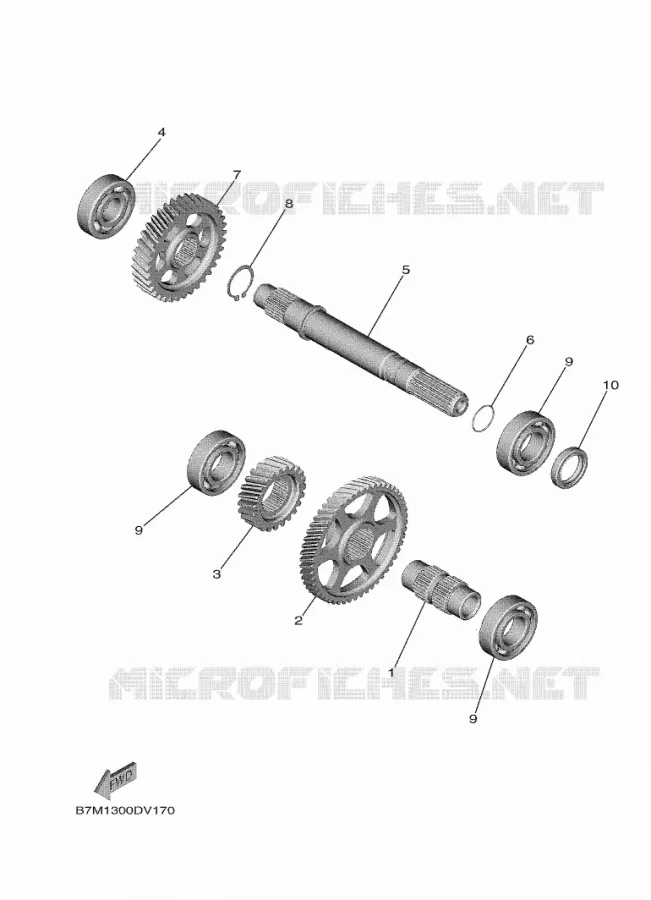

TRANSMISSION Yamaha SCOOTER 560 2023 TMAX XP560D
1
2
3
4
5
6
7
8
9
9
9
10
1
AXLE, MAIN

59C174111000   59C174111000

59C174111000

Unit Price

2
GEAR, PRIMARY DRIVEN (52T)

59C161510000   59C161510000

59C161510000

Unit Price

3
GEAR, 1ST PINION (23T)

BBW171110000   BBW171110000

BBW171110000
Not available
4
BEARING

933063042700  

933063044300
 933063042700

Unit Price

5
AXLE, DRIVE

B7M174210000   B7M174210000

B7M174210000
Not available
6
O-RING

932102100600   932102100600

932102100600
Not available
7
GEAR, 1ST WHEEL (36T)

BBW172110000   BBW172110000

BBW172110000
Not available
8
CIRCLIP(JF7)

990092540000   990092540000

990092540000

Unit Price

9
BEARING

93306205A800   93306205A800

93306205A800

Unit Price

10
OIL SEAL (25X35X7-256)

931022506400   931022506400

931022506400

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Yamaha, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
