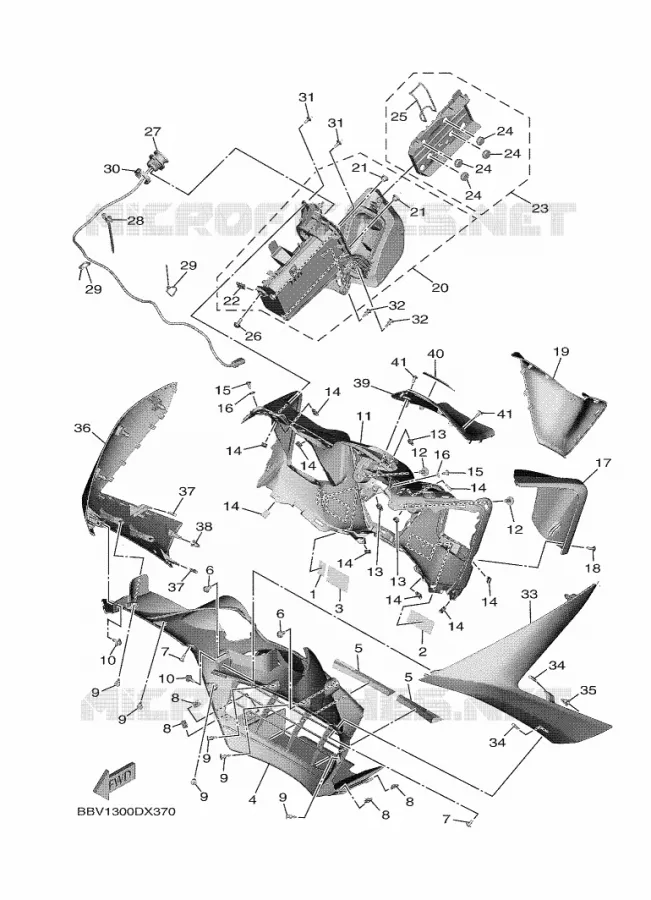

Parts diagram

STAND / FOOTREST 2

BOTTOM COWLING FOR YAMAHA TMAX 2023

WINDSCREEN

Item numbers

LABEL, FUEL

B882817K2000 B882817K2000

Not available

LABEL, WARNING

26P215681100 26P215681100

Not available

LABEL, CAUTION

BBW2415E0000 BBW2415E0000

Not available

DUCT, AIR

BBW215570000 BBW215570000

Not available

DAMPER, PLATE

905201001500 905201001500

4,44 $

Unit Price

BOLT

901090626400 901090626400

2,00 $

Unit Price

SCREW, TAPPING

901670507900 901670507900

2,42 $

Unit Price

NUT, SPRING

901830507600

90183050A600

4,94 $

Unit Price

RIVET

902690600800 902690600800

2,66 $

Unit Price

RIVET

902690608300 902690608300

4,50 $

Unit Price

LEG SHIELD 1

BBW283110000 BBW283110000

Not available

SCREW, WITH WASHER

901590602100 901590602100

1,68 $

Unit Price

NUT, SPRING

901830507600

90183050A600

4,94 $

Unit Price

NUT, SPRING(1YT)

901830504200 901830504200

1,46 $

Unit Price

SCREW, TRUSS TAP.

977025001200

977075001200

1,95 $

Unit Price

WASHER, PLATE

902010504500 902010504500

Not available

LID

BBW283130000 BBW283130000

Not available

TAPPING SCREW

901690500100 901690500100

0,65 $

Unit Price

LEG SHIELD 2

BBW2831200P3 BBW2831200P3

Not available

BOX SUB ASSY

BBW2830R0000 BBW2830R0000

Not available

PLUG (17J)

903381013200 903381013200

3,20 $

Unit Price

NUT, SPRING

90183060A600 90183060A600

6,81 $

Unit Price

SMART PHONE HOLDER ASSY.

BBW283J30000 BBW283J30000

Not available

GROMMET 285216390000

904801410000 904801410000

3,11 $

Unit Price

O-RING (4H7)

932106042600 932106042600

11,29 $

Unit Price

SCREW, WITH WASHER

901590602200 901590602200

1,73 $

Unit Price

LEAD, USB 1

BBW821F10000 BBW821F10000

Not available

CLAMP

904643001000 904643001000

2,62 $

Unit Price

CLAMP

904641606100 904641606100

0,44 $

Unit Price

NUT

BBW821140000 BBW821140000

19,69 $

Unit Price

SCREW, TRUSS TAP.

977025001200

977075001200

1,95 $

Unit Price

RIVET

902690600800 902690600800

2,66 $

Unit Price

PANEL 1

BBW2835U00P1 BBW2835U00P1

Not available

NUT, SPRING(1YT)

901830504200 901830504200

1,46 $

Unit Price

CLAMP

904640701800 904640701800

0,67 $

Unit Price

PANEL 2

BBW2835V00P1 BBW2835V00P1

Not available

NUT, SPRING(1YT)

901830504200 901830504200

1,46 $

Unit Price

CLAMP

904640701800 904640701800

0,67 $

Unit Price

COVER

BBW283650000 BBW283650000

Not available

EMBLEM, 3D

BBW260310000 BBW260310000

Not available

SCREW, TAPPING

901670507900 901670507900

2,42 $

Unit Price
