STAND / FOOTREST

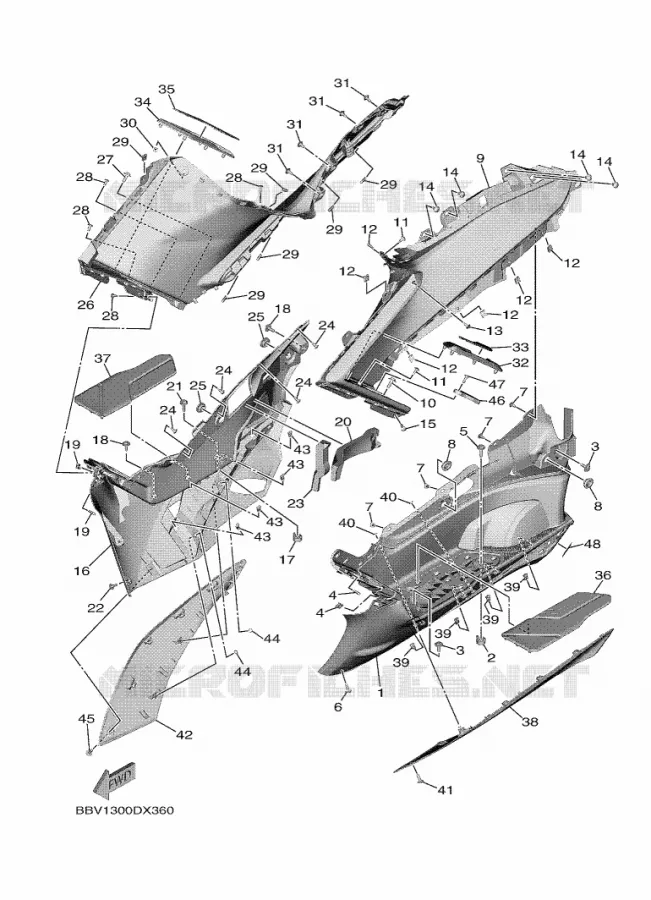

STAND / FOOTREST 2 FOR YAMAHA TMAX 2023

BOTTOM COWLING

Item numbers

BOARD, FOOTREST

BBW274810000 BBW274810000

Not available

SPACER

BBW278230000 BBW278230000

Not available

BOLT, WITH WASHER

901190631800 901190631800

Not available

NUT, SPRING(1YT)

901830504200 901830504200

1,46 $

Unit Price

BOLT, WITH WASHER

901190631900 901190631900

Not available

BOLT, HEX. SOCKET BUTTON

901110502100 901110502100

Not available

SCREW, TRUSS TAP.

977025001200

977075001200

1,95 $

Unit Price

GROMMET(4BH)

904800155900 904800155900

12,86 $

Unit Price

PANEL, CONSOLE 1

BBW2837L0000 BBW2837L0000

Not available

BOLT, WITH WASHER

901190631800 901190631800

Not available

SCREW, TRUSS TAP.

977025001200

977075001200

1,95 $

Unit Price

NUT, SPRING(1YT)

901830504200 901830504200

1,46 $

Unit Price

SCREW, TAPPING

901670507900 901670507900

2,42 $

Unit Price

BOLT

901090502200 901090502200

1,77 $

Unit Price

SCREW, TAPPING

977025001600 977025001600

2,49 $

Unit Price

BOARD, FOOTREST 2

BBW274880000 BBW274880000

Not available

SPACER

BBW278230000 BBW278230000

Not available

BOLT, WITH WASHER

901190631800 901190631800

Not available

NUT, SPRING(1YT)

901830504200 901830504200

1,46 $

Unit Price

DAMPER, PLATE

905202001800 905202001800

Not available

BOLT, WITH WASHER

901190631900 901190631900

Not available

BOLT, HEX. SOCKET BUTTON

901110502100 901110502100

Not available

DAMPER, PLATE

905202001900 905202001900

Not available

SCREW, TRUSS TAP.

977025001200

977075001200

1,95 $

Unit Price

GROMMET(4BH)

904800155900 904800155900

12,86 $

Unit Price

PANEL, CONSOLE 2

BBW2837M0000 BBW2837M0000

Not available

BOLT, WITH WASHER

901190631800 901190631800

Not available

SCREW, TRUSS TAP.

977025001200

977075001200

1,95 $

Unit Price

NUT, SPRING(1YT)

901830504200 901830504200

1,46 $

Unit Price

SCREW, TAPPING

901670507900 901670507900

2,42 $

Unit Price

BOLT

901090502200 901090502200

1,77 $

Unit Price

MAT 1

BBW274830000 BBW274830000

Not available

COVER, FOOTREST

BBW274130000 BBW274130000

Not available

MAT 2

BBW274840000 BBW274840000

Not available

COVER, FOOTREST

BBW274230000 BBW274230000

Not available

MAT 3

BBW274930000 BBW274930000

Not available

MAT 4

BBW274940000 BBW274940000

Not available

MOLE, SIDE COVER 1

BBW2171L00P4 BBW2171L00P4

Not available

CLAMP

904640400500 904640400500

5,99 $

Unit Price

NUT, SPRING (6E5)

9018305M0200 9018305M0200

1,68 $

Unit Price

BOLT, HEX. SOCKET BUTTON

901110502100 901110502100

Not available

MOLE, SIDE COVER 2

BBW2171M00P4 BBW2171M00P4

CLAMP

904640400500 904640400500

5,99 $

Unit Price

NUT, SPRING (6E5)

9018305M0200 9018305M0200

1,68 $

Unit Price

BOLT, HEX. SOCKET BUTTON

901110502100 901110502100

Not available

COVER 2

59C274630100 59C274630100

Not available

SCREW, TAPPING

977025001600 977025001600

2,49 $

Unit Price

OIL, LABEL

B5Y1548B0000 B5Y1548B0000

4,07 $

Unit Price
