ELECTRICAL 1

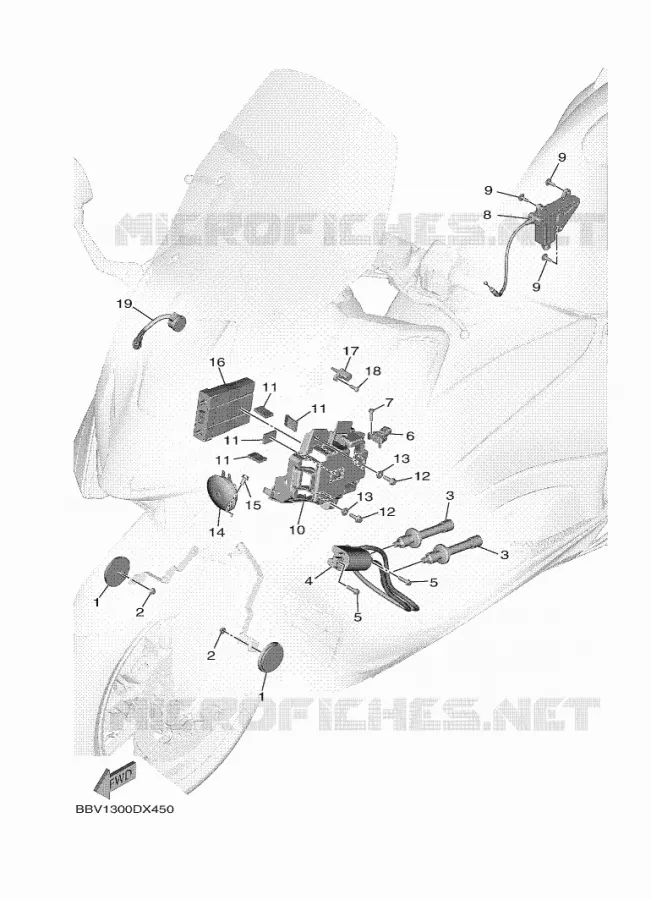

ELECTRICAL 2 FOR YAMAHA TMAX 2023

ELECTRICAL 3

Item numbers

REFLECTOR, REAR 1

59C851310000 59C851310000

20,53 $

Unit Price

NUT, FLANGE

957020550000 957020550000

1,72 $

Unit Price

PLUG CAP ASSY

B7M823700000 B7M823700000

Not available

IGNITION COIL ASSY

BBW823100000 BBW823100000

Not available

BOLT, FLANGE DEEP RECESS

95E320602000 95E320602000

0,56 $

Unit Price

SENSOR, PRESSURE

1WS823800000 1WS823800000

246,51 $

Unit Price

BOLT, SOCKET

913120502000

913170502000

2,59 $

Unit Price

MOTOR UNIT

BBW8A3100000 BBW8A3100000

Not available

SCREW(3YF)

901490529900 901490529900

5,42 $

Unit Price

COVER

BBW8252U0000 BBW8252U0000

Not available

DAMPER, LOCATING 1

18A217780000 18A217780000

2,07 $

Unit Price

BOLT, FLANGE

901050655700

958170602000

3,91 $

Unit Price

COLLAR

903870610700 903870610700

9,23 $

Unit Price

HORN

BC3833711100 BC3833711100

Not available

BLOT, FLANGE DEEP RECESS

95D320601200 95D320601200

0,41 $

Unit Price

COMMUNICATION CONTROL UNIT

BBW832100100

BBW832100400

1 965,49 $

Unit Price

COMMUNICATION CONTROL UNIT

BBW832101100 BBW832101100

Not available

SENSOR, AIR TEMPERATURE

5YU858860000 5YU858860000

46,82 $

Unit Price

SCREW, PAN HEAD TAPPING (AK5)

977025051600

977805011600

2,55 $

Unit Price

BUZZER

BC3833830000 BC3833830000

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Yamaha, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
