SEAT

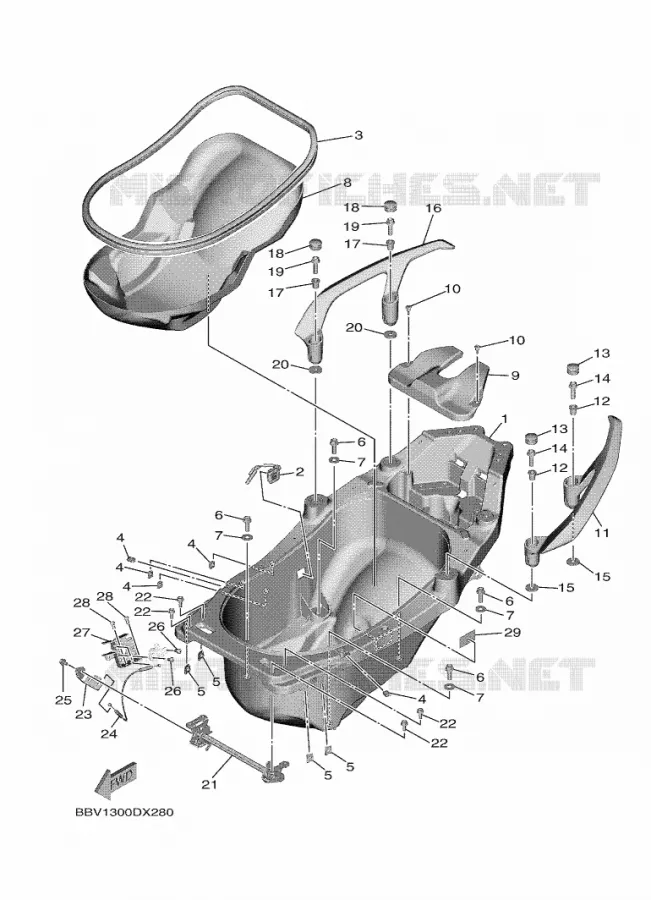

SEAT 2 FOR YAMAHA TMAX 2023

FRONT WHEEL

Item numbers

BOX 1

BBW2473R0000 BBW2473R0000

Not available

LIGHT, ACCESSORY

B74H47700000 B74H47700000

66,69 $

Unit Price

SEAL 3

BBW2173M0000 BBW2173M0000

Not available

NUT, SPRING

901830507600

90183050A600

4,94 $

Unit Price

NUT, SPRING

90183060A600 90183060A600

6,81 $

Unit Price

BOLT, FLANGE DEEP RECESS

95D320802500 95D320802500

Not available

WASHER 6154275100

902010810300 902010810300

3,38 $

Unit Price

DAMPER, SEAT

BBW247470000 BBW247470000

Not available

PLATE, COVER

BBW2471P0000 BBW2471P0000

Not available

RIVET

902690600800 902690600800

2,66 $

Unit Price

ASSIST, GRIP

BBW2474A00P4 BBW2474A00P4

Not available

COLLAR

903870812800 903870812800

Not available

PROTECTOR, 1

4B52476U0000 4B52476U0000

11,32 $

Unit Price

BOLT, FLANGE

901050815000 901050815000

5,22 $

Unit Price

WASHER, PLATE

902010812200 902010812200

Not available

ASSIST, GRIP 2

BBW2474W00P4 BBW2474W00P4

Not available

COLLAR

903870812800 903870812800

Not available

PROTECTOR, 1

4B52476U0000 4B52476U0000

11,32 $

Unit Price

BOLT, FLANGE

901050815000 901050815000

5,22 $

Unit Price

WASHER, PLATE

902010812200 902010812200

Not available

SEAT LOCK ASSY

BBW247800000 BBW247800000

Not available

BOLT, FLANGE DEEP RECESS

95D320601600 95D320601600

0,64 $

Unit Price

GUIDE, WIRE

BBW248850000 BBW248850000

Not available

WIRE, SEAT LOCK 2

BBW2479D0000 BBW2479D0000

Not available

BLOT, FLANGE DEEP RECESS

95D320601000 95D320601000

0,49 $

Unit Price

BOLT, BUTTON HEAD

920120601200 920120601200

1,68 $

Unit Price

STAY, LOCK

BBW2117K0000 BBW2117K0000

Not available

BOLT, BUTTON HEAD

920120601200 920120601200

1,68 $

Unit Price

LABEL, TIRE

BC3216680100 BC3216680100

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Yamaha, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
