FENDER

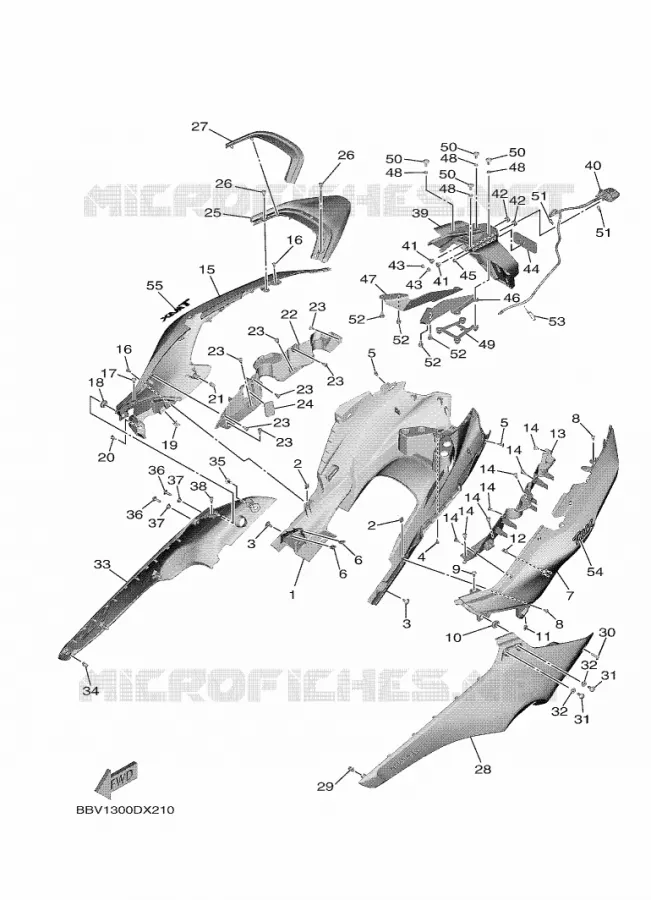

SIDE COVER FOR YAMAHA TMAX 2023

SIDE COVER 2

Item numbers

COVER, SIDE 5

BBW2171E0000 BBW2171E0000

Not available

NUT, SPRING(1YT)

901830504200 901830504200

1,46 $

Unit Price

BOLT, HEX. SOCKET BUTTON

901110619000 901110619000

2,12 $

Unit Price

SCREW, TRUSS TAP.

977025001200

977075001200

1,95 $

Unit Price

RIVET

902690600800 902690600800

2,66 $

Unit Price

NUT, SPRING

90183060A600 90183060A600

6,81 $

Unit Price

COVER, SIDE 1

BBW2171100P4 BBW2171100P4

SCREW, TRUSS TAP.

977025001200

977075001200

1,95 $

Unit Price

BOLT

901090502200 901090502200

1,77 $

Unit Price

GROMMET(4BH)

904800155900 904800155900

12,86 $

Unit Price

NUT, SPRING

90183060A600 90183060A600

6,81 $

Unit Price

CLAMP

904640701800 904640701800

0,67 $

Unit Price

PANEL 3

BBW2172G0000 BBW2172G0000

Not available

RIVET

902690600800 902690600800

2,66 $

Unit Price

COVER, SIDE 2

BBW2172100P4 BBW2172100P4

SCREW, TRUSS TAP.

977025001200

977075001200

1,95 $

Unit Price

BOLT

901090502200 901090502200

1,77 $

Unit Price

GROMMET(4BH)

904800155900 904800155900

12,86 $

Unit Price

NUT, SPRING

90183060A600 90183060A600

6,81 $

Unit Price

RIVET

902690600800 902690600800

2,66 $

Unit Price

CLAMP

904640701800 904640701800

0,67 $

Unit Price

PANEL 4

BBW2172H0000 BBW2172H0000

Not available

RIVET

902690600800 902690600800

2,66 $

Unit Price

PLUG

903383600400 903383600400

Not available

COVER, TOP

BBW2171A00P4 BBW2171A00P4

Not available

RIVET

902690600800 902690600800

2,66 $

Unit Price

COVER, FLANGE

BBW2175N0000 BBW2175N0000

Not available

COVER, SIDE 3

BBW2173100P2 BBW2173100P2

Not available

CLAMP

904640701800 904640701800

0,67 $

Unit Price

SCREW(4DN)

901490630200 901490630200

6,93 $

Unit Price

SCREW(4DN)

901490630200 901490630200

6,93 $

Unit Price

COLLAR

903870627000 903870627000

Not available

COVER, SIDE 4

BBW2174100P2 BBW2174100P2

Not available

CLAMP

904640701800 904640701800

0,67 $

Unit Price

SCREW(4DN)

901490630200 901490630200

6,93 $

Unit Price

SCREW(4DN)

901490630200 901490630200

6,93 $

Unit Price

COLLAR

903870627000 903870627000

Not available

RIVET

902690600800 902690600800

2,66 $

Unit Price

GUARD, MUD

BBW216290000 BBW216290000

Not available

LICENSE LIGHT ASSY

BBWH47400000 BBWH47400000

Not available

COLLAR

903870500300 903870500300

5,46 $

Unit Price

GROMMET

904801100900 904801100900

6,47 $

Unit Price

NUT, S-L FLANGE

956070520000 956070520000

4,71 $

Unit Price

REFLECTOR

3Y6851300200 3Y6851300200

31,86 $

Unit Price

NUT, S-L FLANGE

956070520000 956070520000

4,71 $

Unit Price

STAY 1

BBW2164F0000 BBW2164F0000

Not available

STAY 2

BBW2164G0000 BBW2164G0000

Not available

COLLAR 27583923000

903870637200 903870637200

2,39 $

Unit Price

BRACKET 6

BBW2161G0000 BBW2161G0000

Not available

BOLT

901110608900

901110606100

2,94 $

Unit Price

CLAMP

904651009800 904651009800

1,78 $

Unit Price

BOLT, FLANGE

901050618100

958170601200

1,39 $

Unit Price

CLAMP

904651009800 904651009800

1,78 $

Unit Price

EMBLEM 3D

BBW2173B1000 BBW2173B1000

Not available

EMBLEM 3D

BBW2173B1000 BBW2173B1000

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Yamaha, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
