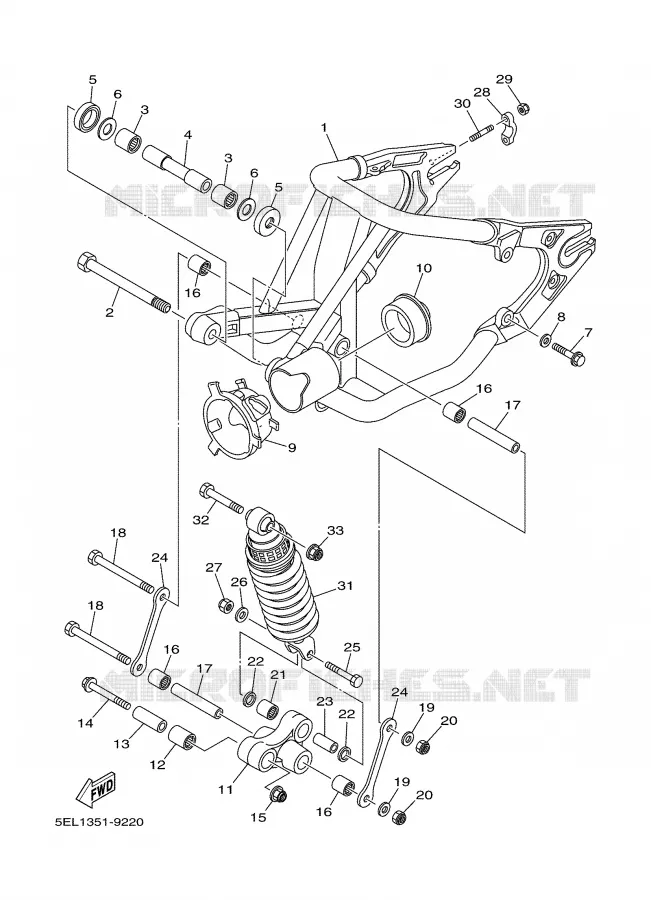

SWINGARM / SHOCK ABSORBER FOR YAMAHA DRAGSTAR 2002

FINAL DRIVE SHAFT / GEAR COUPLING

REAR ARM COMP.

5KS221100100

5KS221100200

1 527,54 $

Unit Price

SHAFT, PIVOT

5EL221410000

5EL221410900

53,05 $

Unit Price

BEARING (4X7)

933203240300 933203240300

50,21 $

Unit Price

BUSH 2

4X7221240000 4X7221240000

41,89 $

Unit Price

COVER, THRUST 2

5EL221290000 5EL221290000

32,21 $

Unit Price

WASHER, PLATE

90201243U900 90201243U900

8,21 $

Unit Price

FLANGE BOLT

90105101A900 90105101A900

12,44 $

Unit Price

WASHER, PLATE

90201112U000 90201112U000

4,61 $

Unit Price

BOOT, RUBBER

5EL221890000 5EL221890000

45,73 $

Unit Price

BUSH

4VR221840000 4VR221840000

36,59 $

Unit Price

ARM, RELAY

4KM2217A0000 4KM2217A0000

256,31 $

Unit Price

BEARING, CYLINDRICAL(2GH)

933174206000 933174206000

61,95 $

Unit Price

COLLAR(2MF)

90387100T800 90387100T800

27,79 $

Unit Price

BOLT, WASHER BASED(3FA)

901051072700 901051072700

14,80 $

Unit Price

NUT, SELF-LOCKING(JN5)

956071020000 956071020000

4,90 $

Unit Price

BEARING, CYLINDRICAL(2GH)

933174176100 933174176100

53,46 $

Unit Price

COLLAR(2GH)

90387126T100 90387126T100

25,72 $

Unit Price

BOLT(2GH)

901011267300 901011267300

16,73 $

Unit Price

WASHER, PLATE (4N0)

90201126A700 90201126A700

6,72 $

Unit Price

NUT, U (4PM)

956171210000 956171210000

12,69 $

Unit Price

BEARING, CYLINDRICAL(3YL)

933173177100 933173177100

37,88 $

Unit Price

OIL SEAL

931091707100 931091707100

5,30 $

Unit Price

COLLAR(3TJ)

90387127W000 90387127W000

18,74 $

Unit Price

ARM 1

2KT2217M0000 2KT2217M0000

33,82 $

Unit Price

BOLT(1WG)

901011065900 901011065900

8,11 $

Unit Price

WASHER, PLATE(47X)

90201101J100 90201101J100

6,46 $

Unit Price

NUT, U

956171010000 956171010000

9,95 $

Unit Price

HOLDER, HANDLE UPPER

1E6234411098

1E6234410000

27,38 $

Unit Price

NUT, SELF-LOCKING

956070820000

901850816900

7,57 $

Unit Price

BOLT, STUD 2

956270833000

956170833000

6,33 $

Unit Price

AMORTISSEUR, ARRIERE

5EL222100100 5EL222100100

Not available

BOLT (1M1)

901091055400

901091045300

11,26 $

Unit Price

NUT, SELF-LOCKING(JN5)

956071020000 956071020000

4,90 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the SWINGARM / SHOCK ABSORBER of your Yamaha XVS1100 of 2002. Let us know if you have any questions.
