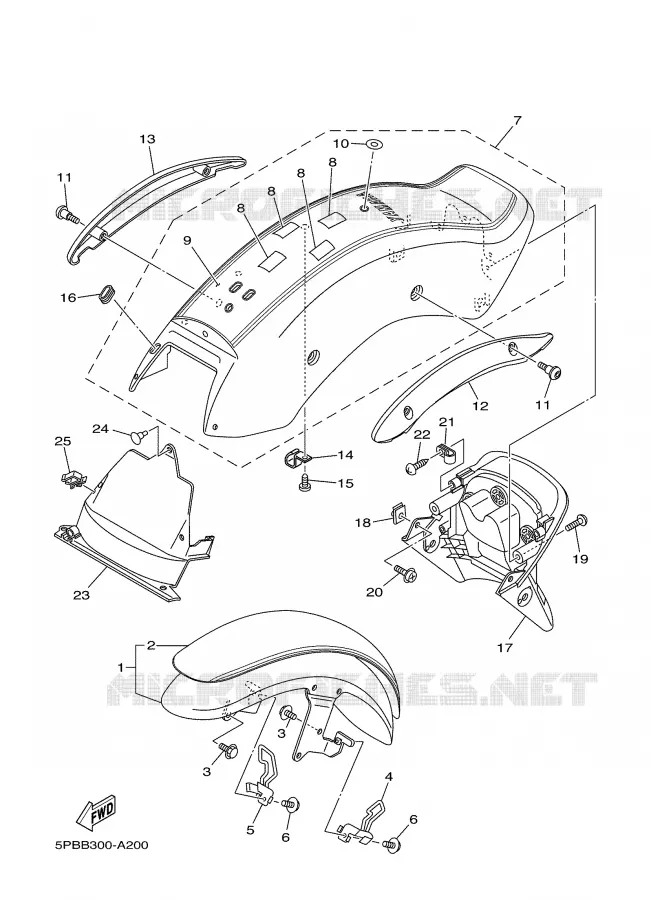

Parts diagram

FRAME

FENDER FOR YAMAHA DRAGSTAR 2002

SIDE COVER

GARDE BOUE AV

5ELY2151A1P2 5ELY2151A1P2

Not available

GARDE BOUE AV

5ELY2151H133 5ELY2151H133

Not available

.GRAPHIQUE 1 GRAPHIQUE 1

5PB215691000 5PB215691000

Not available

.GRAPHIQUE 1 GRAPHIQUE 1

5PB215692000 5PB215692000

Not available

BOLT, SMALL FLANGE

950270801200 950270801200

3,94 $

Unit Price

SUPPORT, CABLE 1

5EL215970000 5EL215970000

Not available

SUPPORT, CABLE 2

5EL215980000 5EL215980000

Not available

BOLT, FLANGE

958070601400

958170601400

4,16 $

Unit Price

REAR FENDER

5ELW2161N0P1 5ELW2161N0P1

296,67 $

Unit Price

GARDE BOUE AR

5ELW2161P033 5ELW2161P033

Not available

SEAL 1

3SP217320000 3SP217320000

21,19 $

Unit Price

.JEU D EMBLEMES JEU D EMBLEMES

5PB216751000 5PB216751000

Not available

.JEU D EMBLEMES JEU D EMBLEMES

5PB216752000 5PB216752000

Not available

SEAL 2

5VN217350000 5VN217350000

2,54 $

Unit Price

BOLT

901110800100 901110800100

9,16 $

Unit Price

STAY 1

5EL2164F0000 5EL2164F0000

232,04 $

Unit Price

STAY 2

5EL2164G0000 5EL2164G0000

220,00 $

Unit Price

CLAMP

904610600100 904610600100

3,23 $

Unit Price

SCREW, TRUSS TAP.

977075001200 977075001200

1,95 $

Unit Price

GROMMET

904800100100 904800100100

8,19 $

Unit Price

FENDER 2

5EL2162R0000 5EL2162R0000

93,83 $

Unit Price

NUT, SPRING

901830502400

90183051A000

3,59 $

Unit Price

SCREW, C.R. BINDING (2T4)

901540500400 901540500400

3,65 $

Unit Price

SCREW, WITH WASHER

901590508300

901590505600

1,02 $

Unit Price

CLAMP(N07)

904611013500 904611013500

24,45 $

Unit Price

SCREW, TRUSS TAP.

977075001200 977075001200

1,95 $

Unit Price

GUARD, MUD

5EL216290000 5EL216290000

79,77 $

Unit Price

RIVET(4PH)

902690707700 902690707700

4,03 $

Unit Price

CLAMP (1J7)

904641602100 904641602100

5,99 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FENDER of your Yamaha XVS1100 of 2002. Let us know if you have any questions.
