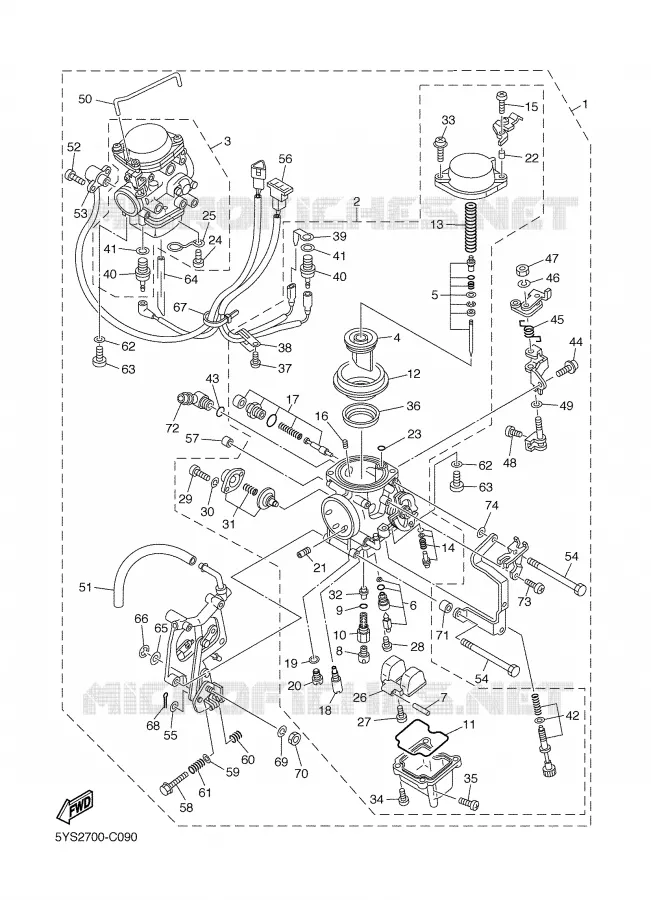

CARBURETOR FOR YAMAHA DRAGSTAR 2002

EXHAUST

CARBURATEUR COMPLET

5EL149000100 5EL149000100

Not available

.CARBURATEUR 1 COMPLET CARBURATEUR 1 COMPLET

5EL149010100 5EL149010100

Not available

.CARBURATEUR 2 COMPLET CARBURATEUR 2 COMPLET

5EL149020100 5EL149020100

Not available

VALVE, THROTTLE 1

5EL141120000 5EL141120000

150,99 $

Unit Price

NEEDLE SET

5EL1490J0000 5EL1490J0000

43,43 $

Unit Price

..JEU D AIGUILLES JEU D AIGUILLES

5EL1490J1000 5EL1490J1000

Not available

NEEDLE VALVE SET

5EL141071200 5EL141071200

55,99 $

Unit Price

PIN, FLOAT

127141860000 127141860000

8,54 $

Unit Price

JET, MAIN (#110)

3G2142312200 3G2142312200

14,00 $

Unit Price

JET, MAIN #112.5

3G21423A7300

3G21423A73A0

14,00 $

Unit Price

O-RING

583145610000 583145610000

10,59 $

Unit Price

HOLDER

5EL142610000 5EL142610000

57,46 $

Unit Price

O-RING

5DM145610000 5DM145610000

19,72 $

Unit Price

DIAPHRAGM

5EL244110000 5EL244110000

85,55 $

Unit Price

SPRING, DIAPHRAGM

4KM149330000 4KM149330000

24,68 $

Unit Price

PILOT SCREW SET

4XY141050000 4XY141050000

22,15 $

Unit Price

SCREW, PAN HEAD(JJ6)

985020501600

985070501600

2,23 $

Unit Price

JET, MAIN (#145)

1HX142312900 1HX142312900

13,97 $

Unit Price

STARTER SET

5EL1410A0000 5EL1410A0000

89,28 $

Unit Price

JET, PILOT (# 17.5)

4KM141421700 4KM141421700

11,92 $

Unit Price

RING

5EL149180000 5EL149180000

6,97 $

Unit Price

JET, MAIN # 42.5

3G21423A5900 3G21423A5900

14,00 $

Unit Price

JET, MAIN #63.8

1HX1423E2500 1HX1423E2500

14,69 $

Unit Price

RING

4KM141940000 4KM141940000

12,23 $

Unit Price

O-RING (493-CARB.)

354141470000 354141470000

11,26 $

Unit Price

SCREW, PAN HEAD

985070401200

985170401200

1,81 $

Unit Price

CLIP

5EL149190000 5EL149190000

16,35 $

Unit Price

FLOAT

5DM149850000 5DM149850000

86,75 $

Unit Price

SCREW, PAN HEAD(JG1)

985070400800 985070400800

1,90 $

Unit Price

SCREW

1FN145650000 1FN145650000

8,54 $

Unit Price

SCREW, PAN HEAD(N15)

985070401400 985070401400

1,92 $

Unit Price

WASHER(6TA)

929070410000 929070410000

2,10 $

Unit Price

DIAPHRAGM SET 5

5EL1490H0000 5EL1490H0000

65,80 $

Unit Price

NOZZLE, MAIN

5DM141414000 5DM141414000

38,35 $

Unit Price

SCREW

4KM142160000 4KM142160000

8,90 $

Unit Price

SCREW, PAN HEAD(6G8)

985070401000 985070401000

2,10 $

Unit Price

PLUG, DRAIN

12R141910000 12R141910000

7,58 $

Unit Price

O-RING

5EL145610000 5EL145610000

12,62 $

Unit Price

SCREW, PAN HEAD(3XP)

985070400600

985170400600

6,22 $

Unit Price

PLATE

904610608700

3XV142430000

4,97 $

Unit Price

TERMINAL 1

4DH821030000 4DH821030000

13,53 $

Unit Price

HEATER ASSY

5FU837902000 5FU837902000

48,09 $

Unit Price

WASHER, PLATE

902010801600 902010801600

3,51 $

Unit Price

THROTTLE SCREW SET

5EL141030000 5EL141030000

26,42 $

Unit Price

O-RING

3LN1416A0000 3LN1416A0000

7,35 $

Unit Price

SCREW

4SV244530000 4SV244530000

2,18 $

Unit Price

SPRING

5EL149350000 5EL149350000

9,91 $

Unit Price

YBS67-5 WASHER, SPRING

929020510000

929900510000

1,68 $

Unit Price

NUT, HEXAGON SMALL

953020570000

953170570000

2,63 $

Unit Price

SCREW

11H149910000

11H149910900

0,27 $

Unit Price

RING

31H141940000 31H141940000

Not available

.TRINGLE TRINGLE

5EL145770000 5EL145770000

Not available

HOSE

4YW149870000 4YW149870000

20,08 $

Unit Price

SCREW

4WM145650000 4WM145650000

5,16 $

Unit Price

THROTTLE SENSOR ASSY

5EL858850000 5EL858850000

455,73 $

Unit Price

.VIS VIS

5EL145920000 5EL145920000

Not available

WASHER

4NK142850000 4NK142850000

1,92 $

Unit Price

.FIL, SECONDAIRE FIL, SECONDAIRE

5EL815170000 5EL815170000

Not available

.DURITE DURITE

5EL141960000 5EL141960000

Not available

SCREW

5EL149910000 5EL149910000

Not available

WASHER, PLUG SCREW

22F141170000 22F141170000

3,84 $

Unit Price

SPRING, PILOT ADJUSTING

5EL142120000 5EL142120000

3,57 $

Unit Price

.RESSORT, VIS BUTEE D ACCELERAT RESSORT, VIS BUTEE D ACCELERAT

3F7141330000 3F7141330000

Not available

GASKET

127141980000 127141980000

4,24 $

Unit Price

SCREW

3DM142160000 3DM142160000

6,38 $

Unit Price

PIPE

5EL141970000 5EL141970000

17,10 $

Unit Price

WASHER (3H1)

1A8149530000 1A8149530000

3,72 $

Unit Price

CLIP

812141370000 812141370000

5,33 $

Unit Price

CLIP, PIPE

35H141390000 35H141390000

6,11 $

Unit Price

PIN, COTTER

914921000800 914921000800

2,71 $

Unit Price

WASHER(6A1)

929060610000

929950610000

1,46 $

Unit Price

NUT(JN5)

953820670000

953170670000

2,10 $

Unit Price

.DURITE DURITE

5EL141490000 5EL141490000

Not available

NIPPLE

5EL142510000 5EL142510000

17,51 $

Unit Price

SCREW, PAN HEAD(6G8)

985070401000 985070401000

2,10 $

Unit Price

WASHER, PLAIN (646)

929020660000

929900660000

2,09 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CARBURETOR of your Yamaha XVS1100 of 2002. Let us know if you have any questions.
