VALVE

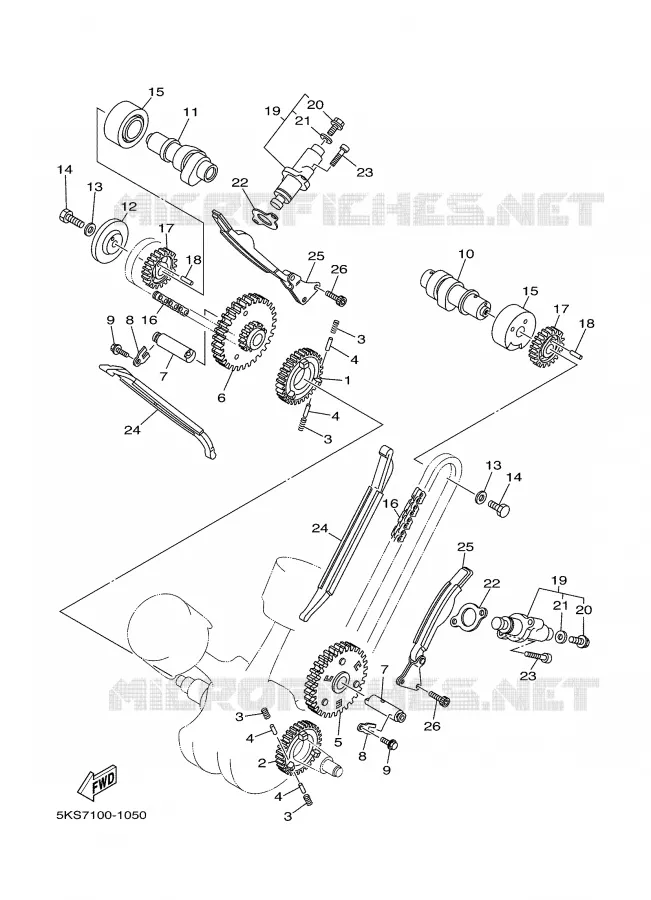

CAMSHAFT / TIMING CHAIN FOR YAMAHA DRAGSTAR 2002

OIL PUMP

ENGRENAGE, MENANT

4X7115360000 4X7115360000

Not available

GEAR, BREAKER DRIVE

4X7115340000 4X7115340000

79,26 $

Unit Price

SPRING COMPRESSION341114880000

905012113300 905012113300

6,89 $

Unit Price

PIN, DOWEL

936051009000 936051009000

5,10 $

Unit Price

CAM CHAIN SPROCKET ASSY 1

5EL115400100 5EL115400100

355,67 $

Unit Price

CAM CHAIN SPROCKET ASSY 2

5EL115500100 5EL115500100

356,33 $

Unit Price

SHAFT, TENSIONER

5EL122470000 5EL122470000

112,21 $

Unit Price

WASHER

902090620500 902090620500

Not available

BOLT, WASHER BASED (4H7)

901050615400 901050615400

3,93 $

Unit Price

CAMSHAFT 1

5EL121710000 5EL121710000

275,47 $

Unit Price

CAMSHAFT 2

5EL121810000 5EL121810000

244,52 $

Unit Price

PLATE, BREATHER 2

42X111450000 42X111450000

16,92 $

Unit Price

WASHER, PLATE (3L6)

902011059100

902011077400

7,77 $

Unit Price

BOLT (583)

901011030300 901011030300

9,43 $

Unit Price

BUSH, SOLID (20X)

903802512500 903802512500

62,69 $

Unit Price

CHAIN

945914909800 945914909800

51,30 $

Unit Price

SPROCKET, CAM CHAIN

5EL121760000 5EL121760000

80,66 $

Unit Price

PIN, DOWEL (168)

936041203700 936041203700

2,79 $

Unit Price

TENSIONER ASSY, CAM CHAIN

5EL122100100 5EL122100100

116,40 $

Unit Price

BOLT

5EL122280000 5EL122280000

3,89 $

Unit Price

GASKET

5EL122140000 5EL122140000

6,00 $

Unit Price

GASKET, TENSIONER CASE

4FM122130000 4FM122130000

3,87 $

Unit Price

BOLT, SOCKET HEAD

913140602500 913140602500

4,00 $

Unit Price

GUIDE, STOPPER 1

5EL122310000 5EL122310000

59,47 $

Unit Price

GUIDE, STOPPER 2

5EL122410000

5EL122410100

136,61 $

Unit Price

BOLT, SOCKET

913140601600 913140601600

4,00 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CAMSHAFT / TIMING CHAIN of your Yamaha XVS1100 of 2002. Let us know if you have any questions.
