FENDER

SIDE COVER - OIL TANK FOR YAMAHA XT 1986

SWINGARM

COVER, SIDE (L, H)

3H7217110033 3H7217110033

44,96 $

Unit Price

LOCK ASSY 2

1E6217080000 1E6217080000

39,20 $

Unit Price

NUT, HEXAGON (1E6)

901702218700 901702218700

10,11 $

Unit Price

GROMMET (1E6)

904802418600 904802418600

5,00 $

Unit Price

EMBLEME 6

4E5217860000 4E5217860000

Not available

COVER, SIDE (R, H)

3H7217210033 3H7217210033

44,96 $

Unit Price

KNOB, SIDE COVER

583217140000 583217140000

6,57 $

Unit Price

PIN, SPRING (583)

916092501800 916092501800

1,24 $

Unit Price

WASHER, PLATE

902010606300

902010609500

1,04 $

Unit Price

DAMPER, SIDE COVER

583217470000 583217470000

4,95 $

Unit Price

EMBLEME 7

4E5217870000 4E5217870000

Not available

BOX, TOOL

1T2211710000 1T2211710000

18,36 $

Unit Price

KNOB, SIDE COVER

583217140000 583217140000

6,57 $

Unit Price

PIN, SPRING (583)

916092501800 916092501800

1,24 $

Unit Price

WASHER, PLATE

902010606300

902010609500

1,04 $

Unit Price

DAMPER, SIDE COVER

583217470000 583217470000

4,95 $

Unit Price

SCREW, PAN

925060601400

985070601400

2,10 $

Unit Price

WASHER(6A1)

929060610000

929950610000

1,46 $

Unit Price

SCREW, PAN

925060604500

985070604500

2,10 $

Unit Price

NUT(661)

953010660000

953800660000

2,14 $

Unit Price

WASHER, PLATE

902010638000 902010638000

5,48 $

Unit Price

WASHER(6A1)

929900610000

929950610000

1,46 $

Unit Price

BOITIER COMPLET

56U212400000 56U212400000

Not available

BOITE

1E6212450000 1E6212450000

Not available

.COUVERCLE DE BOITE A OUTILS COUVERCLE DE BOITE A OUTILS

1E6213990000 1E6213990000

Not available

PIN, CLEVIS

917010505500 917010505500

11,27 $

Unit Price

CLIP (156-83525-00)

904681005000 904681005000

5,16 $

Unit Price

PAD, BATTERY

371821210000 371821210000

9,51 $

Unit Price

GROMMET (583 SIDE COVER)

904800117600 904800117600

4,55 $

Unit Price

BOLT, HEXAGON

973010602500

970170602500

2,42 $

Unit Price

WASHER(6A1)

929900610000

929950610000

1,46 $

Unit Price

GROMMET 839774310000

904801402300 904801402300

6,40 $

Unit Price

COLLAR 437216330000

903870739100 903870739100

9,22 $

Unit Price

HOSE (L70)

904451141800

90445112E000

4,00 $

Unit Price

TOOL KIT

1E6281000000

1JNW28100000

97,14 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.

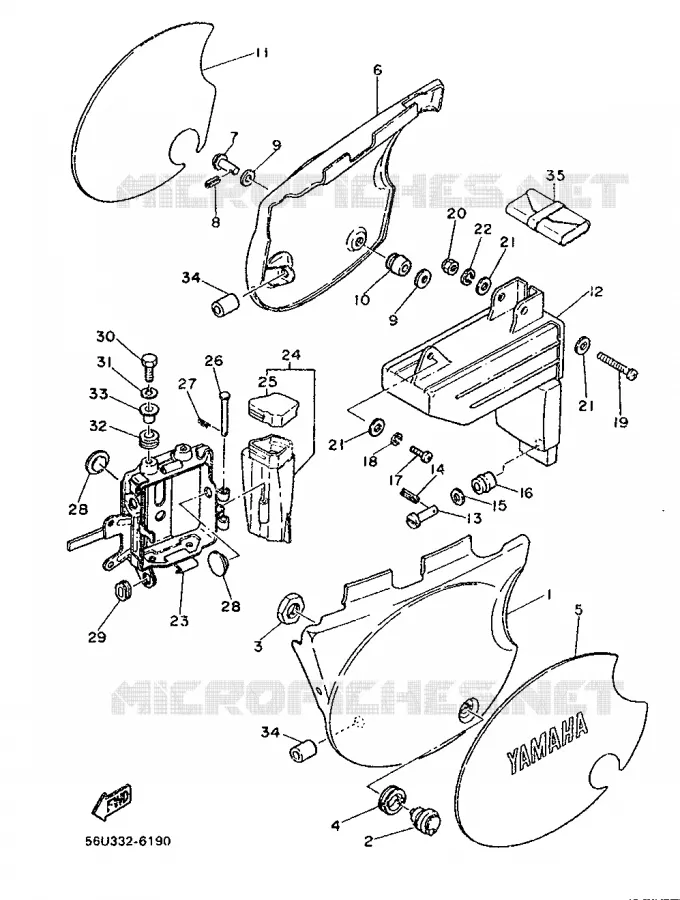

Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the SIDE COVER - OIL TANK of your Yamaha XT500 of 1986. Let us know if you have any questions.
