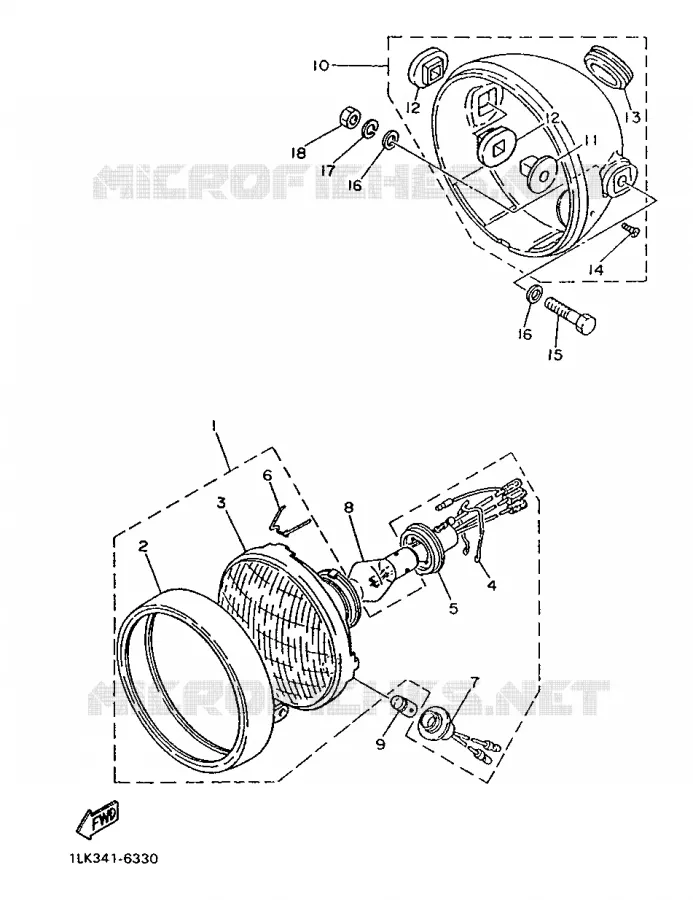

HEADLIGHT FOR YAMAHA XT 1986

TAIL LIGHT

PHARE

56U84303G000 56U84303G000

Not available

.PORTIERE DE PHARE PORTIERE DE PHARE

1N5841152000 1N5841152000

Not available

.OPTIQUE COMPLET OPTIQUE COMPLET

460843204500 460843204500

Not available

.RESSORT RESSORT

308841352100 308841352100

Not available

.DOUILLE DOUILLE

314841121000 314841121000

Not available

SET SPRING

308841242000 308841242000

1,60 $

Unit Price

SOCKET, CORD ASSY

306843464000 306843464000

2,85 $

Unit Price

CORPS, DE PHARE COMPLET

456841304133 456841304133

Not available

COLLERETTE, FIXATION DU CORPS

1U6841454500 1U6841454500

Not available

AMORTISSEUR

1U6841634500 1U6841634500

Not available

.OEILLET DE FAISCEAU DE FILS OEILLET DE FAISCEAU DE FILS

214841530000 214841530000

Not available

SCREW, OVAL HEAD (1A0)

901520500500 901520500500

2,37 $

Unit Price

BOLT

973030804000

970140804000

2,36 $

Unit Price

WASHER(6TC)

929010820000

929070820000

2,13 $

Unit Price

YBS67-8 WASHER, SPRING

929900810000 929900810000

1,68 $

Unit Price

NUT(6L2)

953010860000

953330860000

3,75 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the HEADLIGHT of your Yamaha XT500 of 1986. Let us know if you have any questions.
