GEAR SHIFT LEVER

FRAME FOR YAMAHA XT 1986

FENDER

CADRE COMP.

4E5211100033 4E5211100033

Not available

NET, OIL TANK FILTER

583217560000 583217560000

41,31 $

Unit Price

GASKET (583 OIL TANK)

904302212300 904302212300

12,02 $

Unit Price

BOLT, FLANGE

958010801200

958170801200

3,75 $

Unit Price

GASKET

904300811900 904300811900

2,19 $

Unit Price

BOLT, WASHER BASED(1RU)

901051003900

901051074700

5,67 $

Unit Price

BOLT (583 FRAME)

901051006300 901051006300

14,78 $

Unit Price

NUT, SELFLOCKING (533 FRAME)

901851003500

901851006000

9,14 $

Unit Price

BOLT, FLANGE (3JP)

901050806400

958140808000

5,38 $

Unit Price

BOLT, HEXAGON BASED WASHER.

901051005100 901051005100

14,78 $

Unit Price

NUT, SELF-LOCKING (3Y2)

901850805400

901850808900

12,15 $

Unit Price

WASHER 83824746000

902080801100 902080801100

3,14 $

Unit Price

WASHER, PLATE (26H)

902011012600

90201102G900

7,77 $

Unit Price

SUPPORT 3, MOTEUR

583213160000 583213160000

Not available

BOLT (682)

973210802500

970130802500

5,23 $

Unit Price

YBS67-8 WASHER, SPRING

929900810000 929900810000

1,68 $

Unit Price

WASHER, PLAIN (663)

929010860000

929900860000

1,68 $

Unit Price

SUPPORT 3, MOTEUR

1T1213170000 1T1213170000

Not available

BOLT (682)

973210802500

970130802500

5,23 $

Unit Price

YBS67-8 WASHER, SPRING

929900810000 929900810000

1,68 $

Unit Price

WASHER, PLAIN (663)

929010860000

929900860000

1,68 $

Unit Price

ENGINE STAY 1

583213150000 583213150000

13,29 $

Unit Price

BOLT WASHER BASED (1J7)

901050815500

901050806600

5,96 $

Unit Price

PROTECTEUR, MOTEUR

2H1214710033 2H1214710033

Not available

BOULON

973040601400 973040601400

Not available

WASHER(6A1)

929900610000

929950610000

1,46 $

Unit Price

WASHER, PLATE

90201065F300

902010602000

4,81 $

Unit Price

HELMET HANGER ASSY

55E213080000

5H0213080100

72,26 $

Unit Price

SCREW, FLAT

927010601800

987070601800

0,60 $

Unit Price

SUPPORT, COMMUTATEUR DE STOP

1T2214410000 1T2214410000

Not available

BOITIER

583211710000 583211710000

Not available

GASKET (583 OIL TANK CAP)

904302712400 904302712400

3,38 $

Unit Price

HOSE (L200)

904451128900 904451128900

10,89 $

Unit Price

CLIP

904671000800

90467100A100

1,27 $

Unit Price

COLLIER, AMORTISSEUR

583217550000 583217550000

Not available

SCREW, TAPPING(6U1)

977015011000

977805061000

5,56 $

Unit Price

CAP, HANDLE LOCK

134234841000 134234841000

8,72 $

Unit Price

RIVET 214234830000

902690400300 902690400300

2,97 $

Unit Price

WASHER, CONICAL SPRING (3J3)

902080402900 902080402900

0,65 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

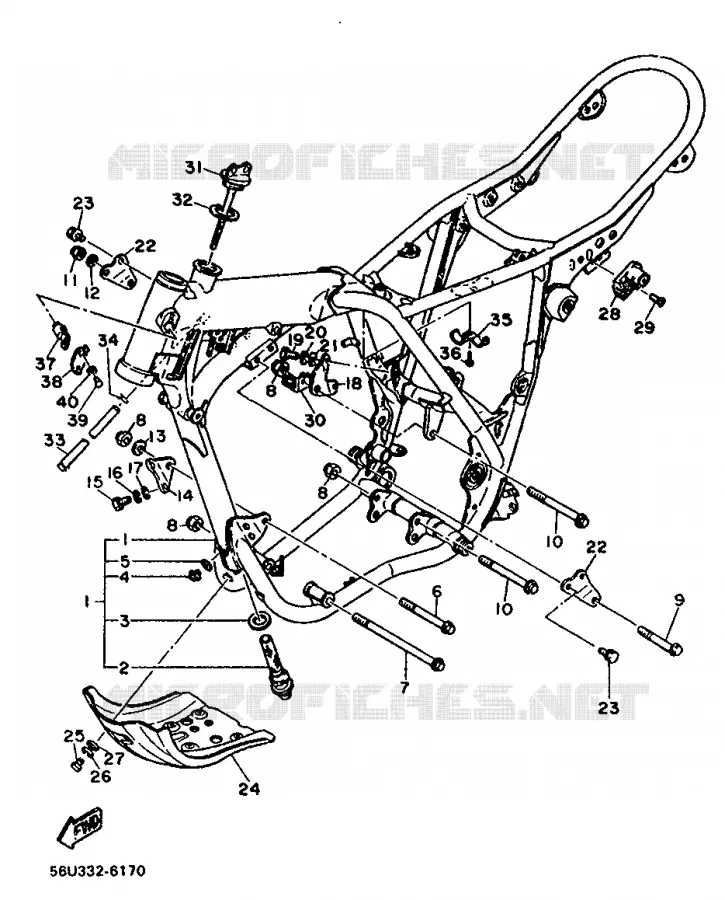

Find on this page all the original spare parts relating to the FRAME of your Yamaha XT500 of 1986. Let us know if you have any questions.
