ELECTRICAL 1

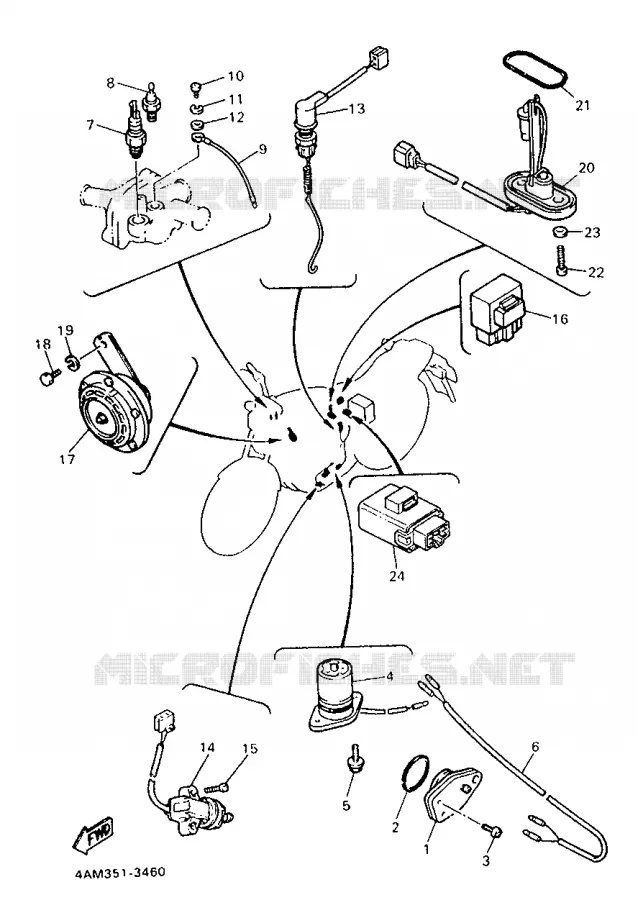

ELECTRICAL 1 FOR YAMAHA FZX 1993

NEUTRAL SWITCH ASSY

1AE825400000 1AE825400000

23,52 $

Unit Price

O-RING (371)

932102919600 932102919600

10,15 $

Unit Price

SCREW PAN HEAD

985800601600 985800601600

2,35 $

Unit Price

OIL LEVEL GAUGE ASSY

4H7857200100

4H7857200200

164,43 $

Unit Price

BOLT, WASHER BASED(JA9)

950260601600

901050669600

7,86 $

Unit Price

WIRE SUB LEAD

1AE825090000 1AE825090000

26,12 $

Unit Price

THERMO SWITCH ASSY

2EL825600000

3LN825600100

109,11 $

Unit Price

THERMO UNIT

11H835910000 11H835910000

53,01 $

Unit Price

EARTH WIRE LEAD 1

26H833540000

4NX833540000

2,53 $

Unit Price

SCREW, PAN HEAD (713)

985800400800 985800400800

3,58 $

Unit Price

YBS67-4 WASHER, SPRING

929900410000 929900410000

1,68 $

Unit Price

WASHER, PLAIN (646)

929010460000

929900460000

1,68 $

Unit Price

STOP SWITCH ASSY

1UF825300200 1UF825300200

40,47 $

Unit Price

SIDE STAND SWITCH

3LD825669000

3LD825669100

81,11 $

Unit Price

SCREW, PAN HEAD

901570507900

985070501400

2,23 $

Unit Price

CONTROL UNIT ASSY

42H857400000 42H857400000

177,22 $

Unit Price

HORN

2AE833710100 2AE833710100

81,30 $

Unit Price

BOLT, HEXAGON

973130801600

970130801600

2,66 $

Unit Price

YBS67-8 WASHER, SPRING

929900810000 929900810000

1,68 $

Unit Price

FUEL METER

1UF857520100

1UF857520300

122,95 $

Unit Price

GASKET, SENDER UNIT

42X857530000 42X857530000

15,34 $

Unit Price

SCREW 256241430000

901490601100 901490601100

7,02 $

Unit Price

WASHER, PLATE(3MB)

902020518700 902020518700

1,68 $

Unit Price

FLASHER RELAY ASSY

2UJ833500000

2UJ833500100

296,14 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the ELECTRICAL 1 of your Yamaha FZX750 of 1993. Let us know if you have any questions.
