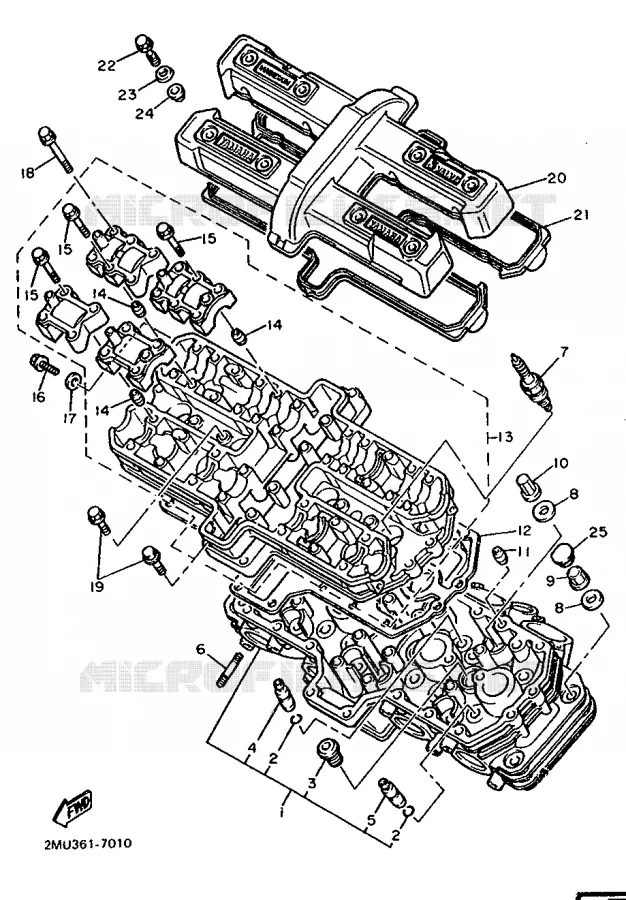

CYLINDER HEAD FOR YAMAHA FZX 1993

CYLINDER

CYLINDER HEAD ASS'Y

1UF111020000 1UF111020000

2 621,70 $

Unit Price

CIRCLIP(1AA)

934400914100 934400914100

0,89 $

Unit Price

PLUG, STRAIGHT SCREW (33M)

903401810100 903401810100

13,17 $

Unit Price

.GUIDE, SOUPAPE 1 GUIDE, SOUPAPE 1

1AA111331000 1AA111331000

Not available

.GUIDE, SOUPAPE 2 GUIDE, SOUPAPE 2

1AA111341000 1AA111341000

Not available

BOLT, STUD(1FW)

956110663000

901160646600

5,20 $

Unit Price

SPARK PLUG DR8EA

947010022200

947010033300

5,32 $

Unit Price

SPARK PLUG DR8ES-L

947010020300 947010020300

5,59 $

Unit Price

WASHER, PLATE(1AA)

90201096J900 90201096J900

5,17 $

Unit Price

NUT(1AA)

901790948900 901790948900

4,33 $

Unit Price

NUT(1AA)

901790949000 901790949000

Not available

PIN, DOWEL

995301001400 995301001400

6,72 $

Unit Price

GASKET, CYLINDER HEAD 2

2GH111820000 2GH111820000

39,96 $

Unit Price

CAM CASE ASSY

1UF1115A0100 1UF1115A0100

2 983,09 $

Unit Price

PIN, DOWEL(3XW)

995100801600

918081602300

4,63 $

Unit Price

BOLT, WASHER BASED (4H7)

901050615300 901050615300

4,04 $

Unit Price

BOLT, FLANGE(4MY)

950260601200

950270601200

2,10 $

Unit Price

GASKET 256113960000

904300601400 904300601400

5,45 $

Unit Price

BOLT, WASHER BASED(1AA)

901050636200 901050636200

3,77 $

Unit Price

BOLT, SMALL FLANGE

950260602500

950270602500

2,49 $

Unit Price

COUVERCLE, CULASSE 1

2AK111910100 2AK111910100

Not available

GASKET, HEAD COVER 1

1UF111930000 1UF111930000

67,13 $

Unit Price

BOLT, WITH WASHER(2JE)

901190621800 901190621800

7,50 $

Unit Price

WASHER(46X)

902091126200 902091126200

8,37 $

Unit Price

RUBBER, MOUNT 1

2GH1111G0000 2GH1111G0000

6,80 $

Unit Price

PLUG(2AK)

903382018300 903382018300

13,80 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CYLINDER HEAD of your Yamaha FZX750 of 1993. Let us know if you have any questions.
