FRAME

FRONT FENDER FOR YAMAHA RAPTOR 2020

REAR FENDER

Item numbers

GARDE BOUE AV

1PEF15008000 1PEF15008000

Not available

DAMPER

12R217470000 12R217470000

2,37 $

Unit Price

DAMPER 1

1S3215410000 1S3215410000

4,01 $

Unit Price

DAMPER, LOCATING 3

3Y0241830000 3Y0241830000

7,55 $

Unit Price

DAMPER 1

3B4215410000 3B4215410000

1,73 $

Unit Price

BOLT

901090617200 901090617200

2,18 $

Unit Price

NUT, U FLANGE

956020620000

956040620000

4,30 $

Unit Price

BOLT, HEX. SOCKET BUTTON

901110613700 901110613700

3,08 $

Unit Price

GROMMET 839774310000

904801410200

904801402300

6,40 $

Unit Price

COLLAR

903870613600 903870613600

5,17 $

Unit Price

BOLT, FLANGE

958120602500 958120602500

3,86 $

Unit Price

STAY, FENDER 1

1PEF15130100 1PEF15130100

22,77 $

Unit Price

STAY, FENDER 2

1PEF15140100 1PEF15140100

25,91 $

Unit Price

BOLT

901090621400 901090621400

4,15 $

Unit Price

PANEL, FRONT BLACK

1PEF33910000 1PEF33910000

100,10 $

Unit Price

BOLT, HEX. SOCKET BUTTON

901110681400

901110613600

2,23 $

Unit Price

NUT, SPRING(4ES)

901830605300

901830606900

3,20 $

Unit Price

COVER, TOP

1PEF171A0000 1PEF171A0000

119,67 $

Unit Price

DAMPER, PLATE

905202000100 905202000100

8,11 $

Unit Price

RIVET

902690600200 902690600200

4,42 $

Unit Price

COVER, RADIATOR

1PEE24670000 1PEE24670000

25,21 $

Unit Price

RIVET

902690600200 902690600200

4,42 $

Unit Price

BOLT, FLANGE

901050608400 901050608400

1,27 $

Unit Price

COLLAR

903870614600 903870614600

3,42 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.

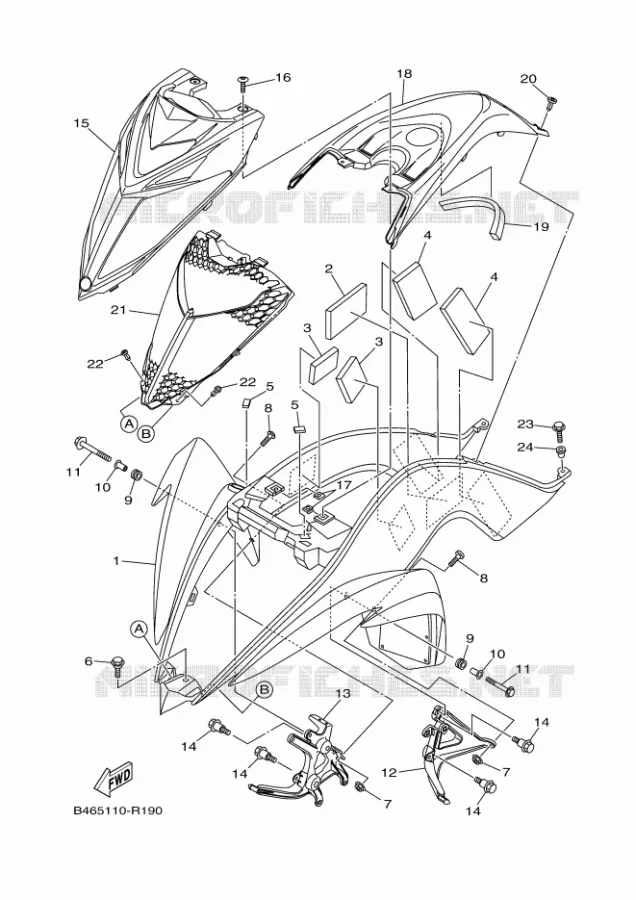

Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FRONT FENDER of your Yamaha YFM 700 RAPTOR of 2020. Let us know if you have any questions.

Select your Yamaha RAPTOR model from 2020
