CYLINDER

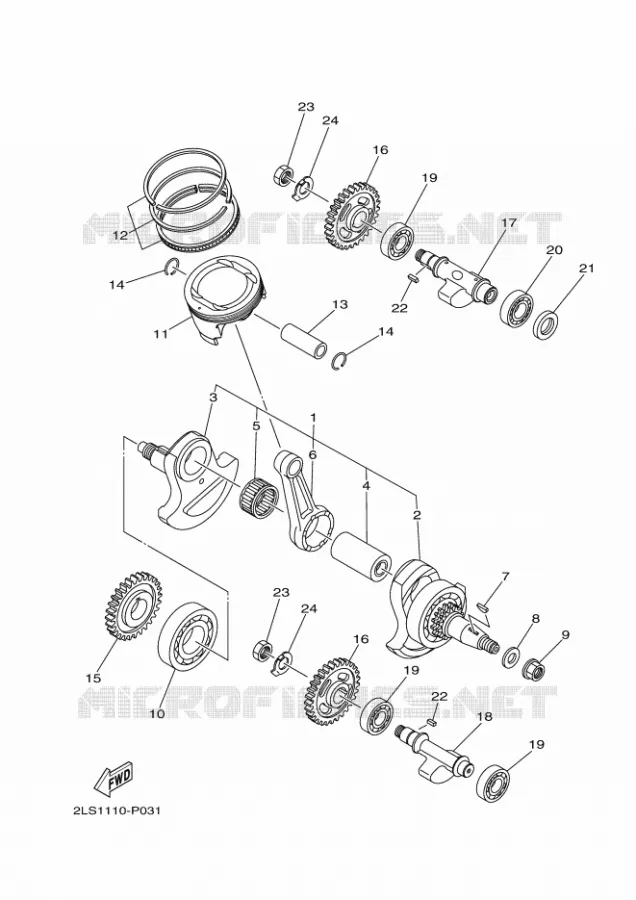

CRANKSHAFT / PISTON FOR YAMAHA RAPTOR 2020

VALVE

Item numbers

CRANKSHAFT ASSY

2LS114000000

2LS114001000

889,64 $

Unit Price

CRANK SUB ASSY 1

1S3114010900 1S3114010900

634,37 $

Unit Price

CRANK 2

1S3114220000 1S3114220000

409,39 $

Unit Price

PIN, CRANK 1

1S3116810000 1S3116810000

117,69 $

Unit Price

BEARING

933108403700 933108403700

105,47 $

Unit Price

ROD, CONNECTING

2BG116510000 2BG116510000

116,72 $

Unit Price

KEY, WOODRUFF

902800500100 902800500100

13,31 $

Unit Price

WASHER, PLATE

902011601300 902011601300

15,73 $

Unit Price

NUT

901791600400 901791600400

18,81 $

Unit Price

BEARING

933063081000 933063081000

96,59 $

Unit Price

PISTON (STD)

2BG116310000 2BG116310000

176,17 $

Unit Price

PISTON RING SET (STD)

1S3116031000 1S3116031000

60,35 $

Unit Price

PIN, PISTON

5VK116330000 5VK116330000

48,74 $

Unit Price

CIRCLIP

934502415400 934502415400

1,27 $

Unit Price

GEAR, DRIVE

1S3115361000 1S3115361000

161,60 $

Unit Price

GEAR, BALANCE WEIG

1S3115311000 1S3115311000

147,25 $

Unit Price

WEIGHT 1

2LS114540000

2LS114540100

174,40 $

Unit Price

WEIGHT 2

2LS114640000

2LS114640100

125,31 $

Unit Price

BEARING

933062048100 933062048100

43,41 $

Unit Price

BEARING(1FF)

933060050200

933060051900

35,93 $

Unit Price

OIL SEAL (5Y1)

931012510600 931012510600

12,77 $

Unit Price

KEY, STRAIGHT 3531154600

902820500500 902820500500

10,11 $

Unit Price

NUT, HEXAGON (30X)

901701632600 901701632600

15,10 $

Unit Price

WASHER, LOCK (30X)

902151622100 902151622100

11,55 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CRANKSHAFT / PISTON of your Yamaha YFM 700 RAPTOR of 2020. Let us know if you have any questions.
