FUEL TANK 2

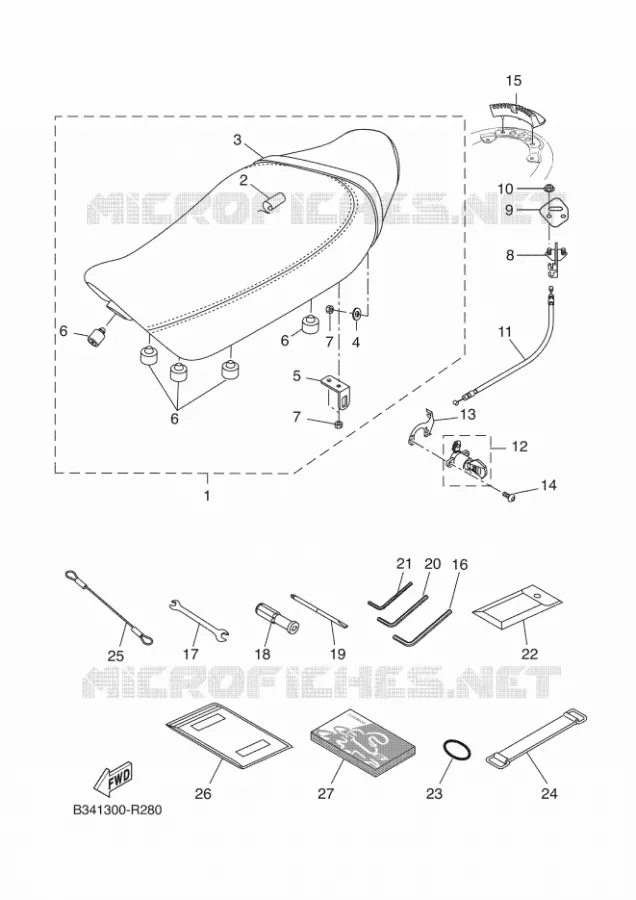

SEAT FOR YAMAHA XSR 2022

FRONT WHEEL

Item numbers

SELLE BIPLACE

BCNF47300000 BCNF47300000

Not available

. COUVRE, SELLE

BCNF47313000 BCNF47313000

Not available

. SUPPORT, SELLE

B34F47280100 B34F47280100

Not available

WASHER PLATE

9020106X3300 9020106X3300

49,77 $

Unit Price

BRACKET SEAT

B34F47380000 B34F47380000

69,69 $

Unit Price

PAD, SEAT

5YKF47410000 5YKF47410000

11,87 $

Unit Price

NUT, SELF-LOCKING

9018506X0400 9018506X0400

42,19 $

Unit Price

SEAT LOCK ASSY

5BPF47800000 5BPF47800000

25,72 $

Unit Price

PROTECTOR FRAME

B34F19780000 B34F19780000

116,41 $

Unit Price

NUT

4XV8182A0000 4XV8182A0000

3,15 $

Unit Price

CABLE, CROCHET DE SIEGE

BJVF478E0000 BJVF478E0000

Not available

SEAT LOCK ASSY

2TVW24700000

3CKW24700000

104,25 $

Unit Price

STAY, LOCK

23P2117K0100 23P2117K0100

12,56 $

Unit Price

SCREW

901490603000 901490603000

1,06 $

Unit Price

DAMPER LOCATING 2

B34F17790000 B34F17790000

74,41 $

Unit Price

CLE HEXAGONAL 5

5D7F816F0000 5D7F816F0000

Not available

CLE PLATE 8-10

5XLF81220000 5XLF81220000

Not available

POIGNEE, TOURNEVIS

5MFF81510000 5MFF81510000

Not available

OUTIL D'INSERTION

1D0F81520000 1D0F81520000

Not available

SPRING SEAT WRENCH

5SEF81370000 5SEF81370000

25,99 $

Unit Price

WRENCH HEXAGONAL 3

B34F816G0000 B34F816G0000

56,68 $

Unit Price

TROUSSE A OUTILS

B34F81000000 B34F81000000

Not available

SUPPORT, OUTIL

B34F81750000 B34F81750000

Not available

BAND, BATTERY

120821310000

7H3821310000

15,65 $

Unit Price

PORTE-CASQUE

B34F13980000 B34F13980000

Not available

POUCH

4KG281861100 4KG281861100

14,83 $

Unit Price

MANUEL D'UTILISATION

BEFF8199F000 BEFF8199F000

Not available

MANUEL D'UTILISATION

BEFF8199G000 BEFF8199G000

Not available

MANUEL D'UTILISATION

BEFF8199H000 BEFF8199H000

Not available

MANUEL D'UTILISATION

BEFF8199S000 BEFF8199S000

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the SEAT of your Yamaha XSR 700 XTribute of 2022. Let us know if you have any questions.
