EXHAUST

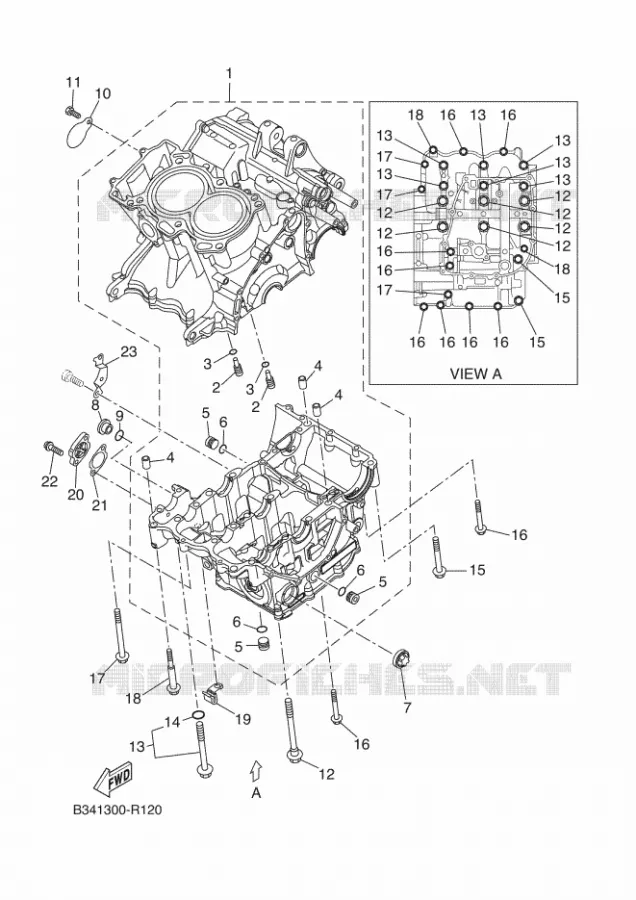

CRANKCASE FOR YAMAHA XSR 2020

COVER - ENGINE 1

Item numbers

CARTER DE MOTEUR COMPLET

BU3E51000900 BU3E51000900

Not available

NOZZLE 3

5EB151550000 5EB151550000

10,16 $

Unit Price

O-RING (210)

932100409200 932100409200

3,93 $

Unit Price

PIN, DOWEL

995301001400 995301001400

6,72 $

Unit Price

PLUG

903381626200 903381626200

17,03 $

Unit Price

O-RING

932101280300 932101280300

2,07 $

Unit Price

GAUGE, LEVEL

2H7153610000 2H7153610000

42,74 $

Unit Price

PLUG

36Y151890000

36Y151890100

14,88 $

Unit Price

O-RING(1L9)

932101632500 932101632500

6,40 $

Unit Price

PLOT BORGNE

BU3E51670000 BU3E51670000

Not available

BOLT

901010604300

970120601400

0,71 $

Unit Price

BOLT, WITH WASHER

901190901400 901190901400

19,93 $

Unit Price

BOLT, CRANKCASE JO

1WS151560000 1WS151560000

11,36 $

Unit Price

O-RING (11M)

932100754000 932100754000

7,08 $

Unit Price

BOLT, WASHER BASED(4JG)

958120806500

901050872100

10,46 $

Unit Price

BOLT, FLANGE

958120604000

958170604000

3,91 $

Unit Price

BOLT, FLANGE

958120606000 958120606000

2,36 $

Unit Price

BOLT

901090610000 901090610000

4,85 $

Unit Price

CLAMP

904621006400 904621006400

12,43 $

Unit Price

COUVERCLE, POMPE A HUILE

BU3E54160000 BU3E54160000

Not available

JOINT, COUV DE POMP A HUILE

BU3E54560000 BU3E54560000

Not available

BOLT, HEXAGON SOCKET HEAD

901100639500

901100639600

1,89 $

Unit Price

SUPPORT

BU3E51280000 BU3E51280000

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CRANKCASE of your Yamaha XSR 700 35kW A2 of 2020. Let us know if you have any questions.
