Displacement

Year

Model

Finish line

Parts catalogue

Parts diagram

CAMSHAFT / TIMING CHAIN

OIL PUMP FOR YAMAHA SR 1991

INTAKE

GEAR, DRIVE

583133240000 583133240000

45,19 $

Unit Price

GEAR, DRIVEN

583133250000 583133250000

53,01 $

Unit Price

SHAFT, PUMP

583133140000

583133140100

76,04 $

Unit Price

PIN, DOWEL

936031707000 936031707000

4,41 $

Unit Price

WASHER, PLAIN(735)

902011011900 902011011900

6,46 $

Unit Price

CIRCLIP(10W)

990091040000 990091040000

1,64 $

Unit Price

WASHER PLATE 164185720000

902011216600 902011216600

2,62 $

Unit Price

COVER, PUMP

583133160200 583133160200

24,04 $

Unit Price

SCREW, PAN HEAD(6E0)

985010603000

978850603000

7,40 $

Unit Price

SCREW, PAN HEAD(6E5)

985030601800

978800601800

3,09 $

Unit Price

OIL SEAL (11X15X3-341)

931041103800 931041103800

10,38 $

Unit Price

HOUSING, ROTOR

583133360200 583133360200

30,11 $

Unit Price

PIN, DOWEL (620)

936042205000 936042205000

3,38 $

Unit Price

JOINT, COUVERCLE DE POMPE

33Y133290000 33Y133290000

Not available

ROTOR 1 ASSY

583133100100 583133100100

27,13 $

Unit Price

ROTOR 2 ASSY

583133200000 583133200000

30,39 $

Unit Price

STRAINER, OIL

583134110000 583134110000

20,28 $

Unit Price

GASKET, STRAINER COVER

583134140000

3HT134140000

12,04 $

Unit Price

COVER, STRAINER

583134170100 583134170100

84,97 $

Unit Price

BOLT, SOCKET

913160602000

913170602000

4,00 $

Unit Price

PLUG, STRAIGHT SCREW(3FA)

11H134550000

903401413200

8,37 $

Unit Price

SCREW, BIND(2TV)

989010600800

989800600800

1,68 $

Unit Price

GASKET

214111980100 214111980100

3,98 $

Unit Price

ELEMENT ASSY, OIL CLEANER

4X7134409000 4X7134409000

15,43 $

Unit Price

COVER, ELEMENT

2J2134470000 2J2134470000

22,86 $

Unit Price

O-RING (583 OIL CLEANER)

932106429700 932106429700

5,87 $

Unit Price

BOLT, SOCKET

913160606000

913170606000

4,53 $

Unit Price

BOLT (2H0)

901090651100 901090651100

5,54 $

Unit Price

O-RING (583 OIL DRAIN BOLT)

932100713500 932100713500

5,70 $

Unit Price

SCREW (583)

901490511000 901490511000

2,61 $

Unit Price

GASKET (583)

904300512600 904300512600

7,43 $

Unit Price

SEAT, CHECK BALL

583131130000 583131130000

15,55 $

Unit Price

BALL

935030800700 935030800700

1,68 $

Unit Price

SPRING (583 OIL CLEANER)

905010537800 905010537800

4,10 $

Unit Price

DURITE REFOULEMENT 1

33Y131610000 33Y131610000

Not available

AXE DE DEMARREUR

4X7157850100 4X7157850100

Not available

CLIP (4X7)

904680511300 904680511300

2,83 $

Unit Price

BOLT, UNION

904010803800

904010800600

8,41 $

Unit Price

BOULON, RACCORD

904011409700 904011409700

Not available

WASHER, PLATE 3411117500

902010808700 902010808700

5,86 $

Unit Price

GASKET 256131670000

904301404300 904301404300

7,43 $

Unit Price

DURITE A HUILE

583134640000 583134640000

Not available

O-RING (371)

932101019700 932101019700

9,09 $

Unit Price

BOLT, SOCKET

913160601600

913170601600

3,51 $

Unit Price

BOLT, SOCKET

913160601200

913170601200

5,10 $

Unit Price

HOSE, OIL 2

2J2134650000 2J2134650000

269,77 $

Unit Price

.BRIDE BRIDE

904611004200 904611004200

Not available

O-RING (341)

932101517100 932101517100

7,71 $

Unit Price

BOLT, SOCKET

913160601600

913170601600

3,51 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.

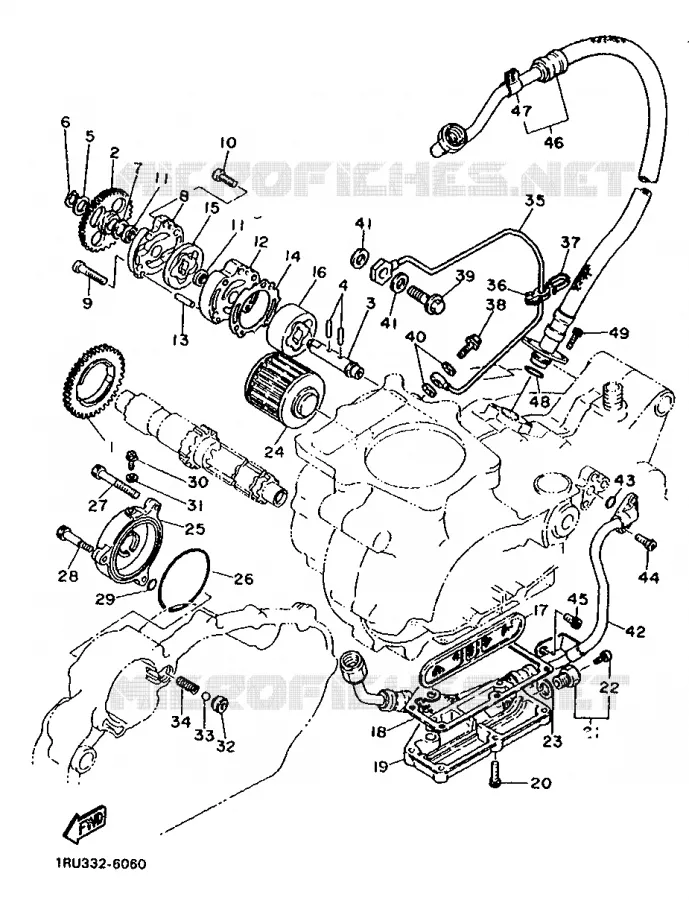

Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the OIL PUMP of your Yamaha SR500 of 1991. Let us know if you have any questions.

Select your Yamaha SR model from 1991
