STARTER MOTOR

STARTER CLUTCH FOR YAMAHA XT 1986

TRANSMISSION

PRIMARY DRIVEN GEAR COMP

583161500000

2J2161500000

445,95 $

Unit Price

PLATE, THRUST (2)

170161640000 170161640000

11,69 $

Unit Price

BOSS, CLUTCH

583163710000 583163710000

127,67 $

Unit Price

PLATE, FRICTION 1

5Y1163210000 5Y1163210000

19,39 $

Unit Price

PLATE, CLUTCH 2

360163250000

360163251000

20,69 $

Unit Price

PLATE, PRESSURE

498163510000 498163510000

78,78 $

Unit Price

SPRING (583 CLUTCH)

905012339100 905012339100

9,29 $

Unit Price

SCREW, WITH WASHER (583)

901590601000 901590601000

6,83 $

Unit Price

SPACER (583)

905602515300 905602515300

31,01 $

Unit Price

PIGNON D ENTRAINEMT PRIMAIRE

583161110000 583161110000

Not available

KEY, STRAIGHT (583)

902820702100 902820702100

5,54 $

Unit Price

WASHER (517 CLUTCH)

902081601900 902081601900

3,75 $

Unit Price

NUT

901701618200

901701642500

7,83 $

Unit Price

PLATE, THRUST

363161540000 363161540000

12,67 $

Unit Price

SPRING

214161190000 214161190000

5,94 $

Unit Price

ROD, PUSH

174163560000 174163560000

10,94 $

Unit Price

ROD, PUSH

583163570100 583163570100

23,62 $

Unit Price

PUSH LEVER COMP.

583163820000

583163810000

44,75 $

Unit Price

JOINT

214163890000 214163890000

5,92 $

Unit Price

PIN W-HOLE 214163790000

902400600500 902400600500

3,78 $

Unit Price

PIN, COTTER

914011001000 914011001000

0,28 $

Unit Price

SPRING, TORSION (583 CLUTCH)

905081227900 905081227900

4,24 $

Unit Price

BRG, CYL-CAL ROLLER 10G KY

933151172000 933151172000

28,04 $

Unit Price

OIL SEAL (48U)

931021735700 931021735700

15,34 $

Unit Price

WASHER PLATE 168217580000

902011732700

902011826200

5,29 $

Unit Price

SCREW, ADJUSTING

364163430000 364163430000

6,49 $

Unit Price

NUT, CLUTCH ADJUSTING

583163440000 583163440000

14,01 $

Unit Price

WASHER, PLATE 3412175700

902011217200 902011217200

7,43 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.

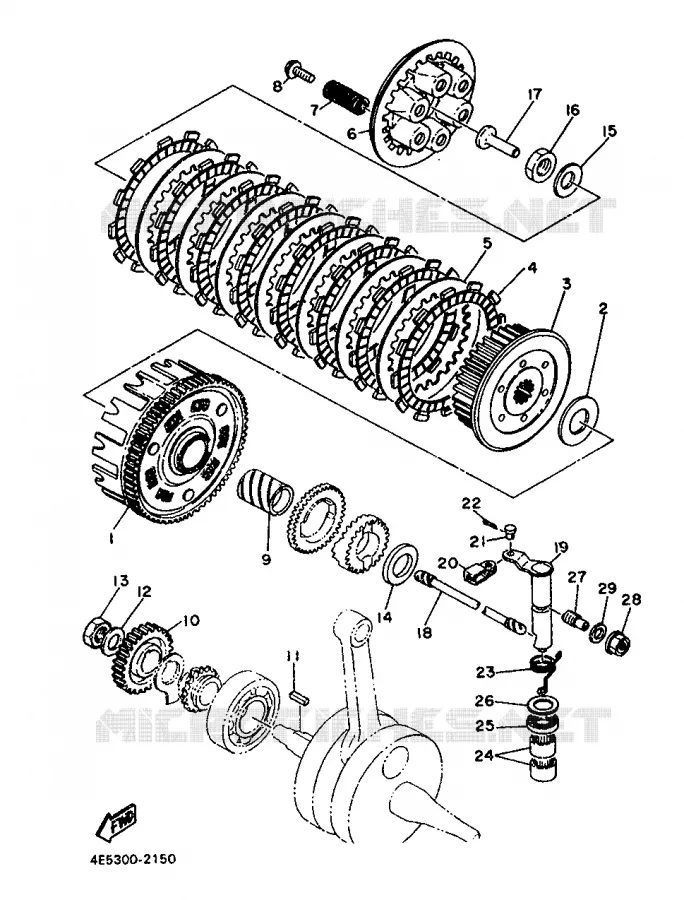

Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the STARTER CLUTCH of your Yamaha XT500 of 1986. Let us know if you have any questions.
