INDICATOR

SPEEDOMETER FOR YAMAHA XT 1986

HEADLIGHT

COMPTEUR DE VITESSE CPLT

56U83570F000 56U83570F000

Not available

TAIL LIGHT BULB T-10 12V 3.4W

4G1847440000 4G1847440000

4,55 $

Unit Price

.DOUILLE, COMPTEUR DOUILLE, COMPTEUR

56U835360000 56U835360000

Not available

COMPTE-TOURS CPLT

56U83540F000 56U83540F000

Not available

TAIL LIGHT BULB T-10 12V 3.4W

4G1847440000 4G1847440000

4,55 $

Unit Price

.CORDON CPLT CORDON CPLT

56U835200000 56U835200000

Not available

SUPPORT, COMPTEUR

1E6835196000 1E6835196000

Not available

DAMPER, METER

1E6835236000 1E6835236000

22,26 $

Unit Price

DAMPER, METER FITTING

1E6835266000 1E6835266000

7,15 $

Unit Price

WASHER PLATE 803835240000

1E6835246000

902010503200

5,62 $

Unit Price

NUT

953010580000

953040580000

2,45 $

Unit Price

BOLT(3RV)

973130603500

970140603500

2,55 $

Unit Price

WASHER(6A1)

929900610000

929950610000

1,46 $

Unit Price

WASHER, PLATE(J41)

90201062G300

902010604900

3,94 $

Unit Price

SPEEDOMETER CABLE ASSY

3H6835500000

1M1835500100

26,28 $

Unit Price

TACHOMETER CABLE ASSY

1E6835605200 1E6835605200

25,91 $

Unit Price

RING, STOP

102251370000 102251370000

7,65 $

Unit Price

O-RING (26H)

932101410400

932101457900

3,94 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.

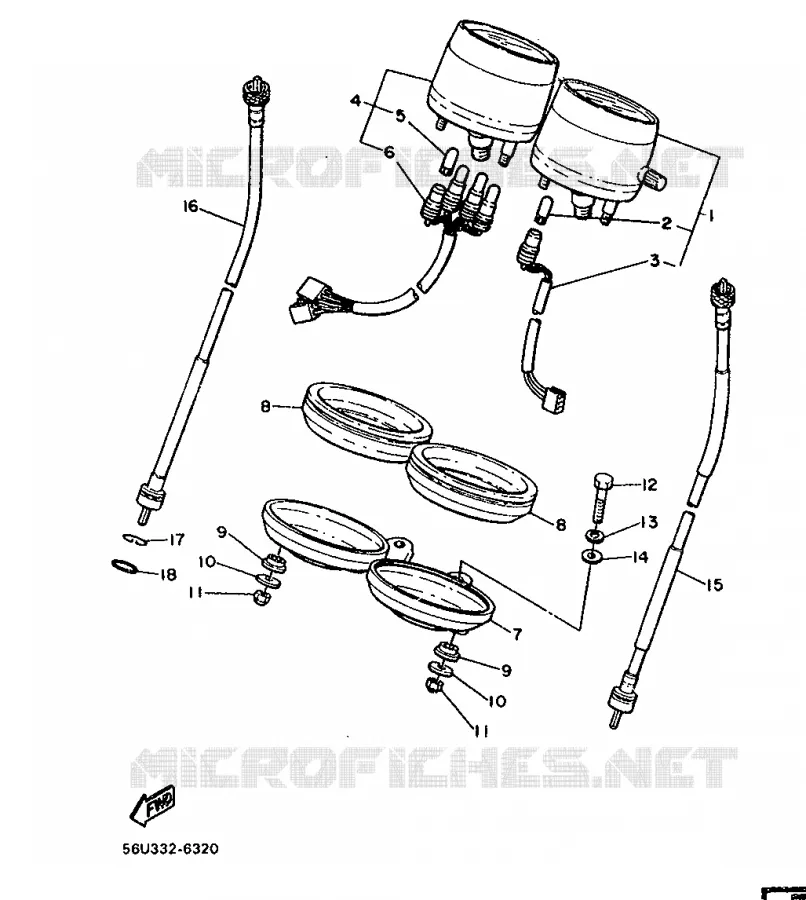

Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the SPEEDOMETER of your Yamaha XT500 of 1986. Let us know if you have any questions.

Select your Yamaha XT model from 1986
