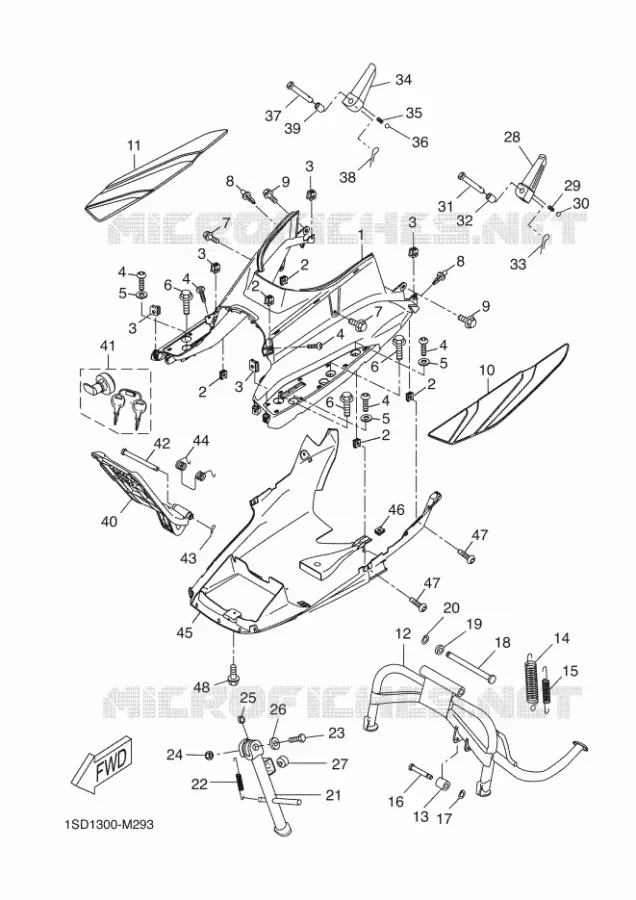

FRONT MASTER CYLINDER

STAND / FOOTREST FOR YAMAHA XMAX 2017

LEG SHIELD

Item numbers

BOARD, FOOTREST

1SDF74810100 1SDF74810100

Not available

NUT, SPRING

9018306X0300 9018306X0300

Not available

NUT, SPRING(1YT)

901830504200 901830504200

1,46 $

Unit Price

SCREW, TAPPING

9016705X0600 9016705X0600

Not available

WASHER, PLATE

9020106X2600 9020106X2600

Not available

BOLT, WITH WASHER

9011906X0200 9011906X0200

Not available

BOLT

9010906X1800 9010906X1800

Not available

RIVET

902690600100 902690600100

4,50 $

Unit Price

BOLT

901110501800 901110501800

3,67 $

Unit Price

COVER, FOOTREST

1SDF74130000 1SDF74130000

Not available

COVER, FOOTREST

1SDF74230000 1SDF74230000

Not available

STAND, MAIN

1SDF71110100 1SDF71110100

Not available

STOPPER, MAIN STAND

4HC271140000 4HC271140000

Not available

SPRING, TENSION

9050640X0000 9050640X0000

Not available

SPRING, TENSION

905062001000 905062001000

6,84 $

Unit Price

SHAFT

1SDF72610000 1SDF72610000

Not available

CIRCLIP (EU0)

990010460000

990800460000

1,68 $

Unit Price

SHAFT, MAIN STAND

58K271120200 58K271120200

22,40 $

Unit Price

WASHER, PLATE

902021515300 902021515300

3,39 $

Unit Price

CIRCLIP (122)

934301200800 934301200800

3,85 $

Unit Price

STAND, SIDE

1SDF73110000 1SDF73110000

Not available

SPRING, TENSION

9050625X0200 9050625X0200

Not available

BOLT, FLANGE

9010510X1700 9010510X1700

Not available

NUT, S-L FLANGE

956021020000 956021020000

5,20 $

Unit Price

COLLAR

9038710X0900 9038710X0900

Not available

WASHER, PLATE(47X)

90201101J100 90201101J100

6,46 $

Unit Price

STOPPER, MAIN STAND

2JWF71141000 2JWF71141000

Not available

FOOTREST, REAR 1

5WXF74310100 5WXF74310100

Not available

SPRING, COMPRESSION (22N)

905011274300 905011274300

3,98 $

Unit Price

BALL

935010401100 935010401100

0,74 $

Unit Price

PIN, WITH HOLE (465)

902400604200 902400604200

5,14 $

Unit Price

COLLAR (24R)

90387064H800 90387064H800

3,73 $

Unit Price

PIN, COTTER (E57)

914011601200

914901602000

3,78 $

Unit Price

FOOTREST, REAR 2

5WXF74410100 5WXF74410100

Not available

SPRING, COMPRESSION (22N)

905011274300 905011274300

3,98 $

Unit Price

BALL

935010401100 935010401100

0,74 $

Unit Price

PIN, WITH HOLE (465)

902400604200 902400604200

5,14 $

Unit Price

PIN, COTTER (E57)

914011601200

914901602000

3,78 $

Unit Price

COLLAR (24R)

90387064H800 90387064H800

3,73 $

Unit Price

LID, FUEL

1SDF74A80000 1SDF74A80000

Not available

LOCK ASSY

1SDWF8490000 1SDWF8490000

Not available

PIN, CLEVIS

9024006X0100 9024006X0100

Not available

CLIP (156-83525-00)

904681005000 904681005000

5,16 $

Unit Price

SPRING, RETURN

1SDF74260000 1SDF74260000

Not available

COVER, UNDER

1SDF83850100 1SDF83850100

Not available

NUT, SPRING(1YT)

901830504200 901830504200

1,46 $

Unit Price

SCREW, TAPPING

9016705X0600 9016705X0600

Not available

BOLT, WITH WASHER

9011906X0200 9011906X0200

Not available
