INTAKE

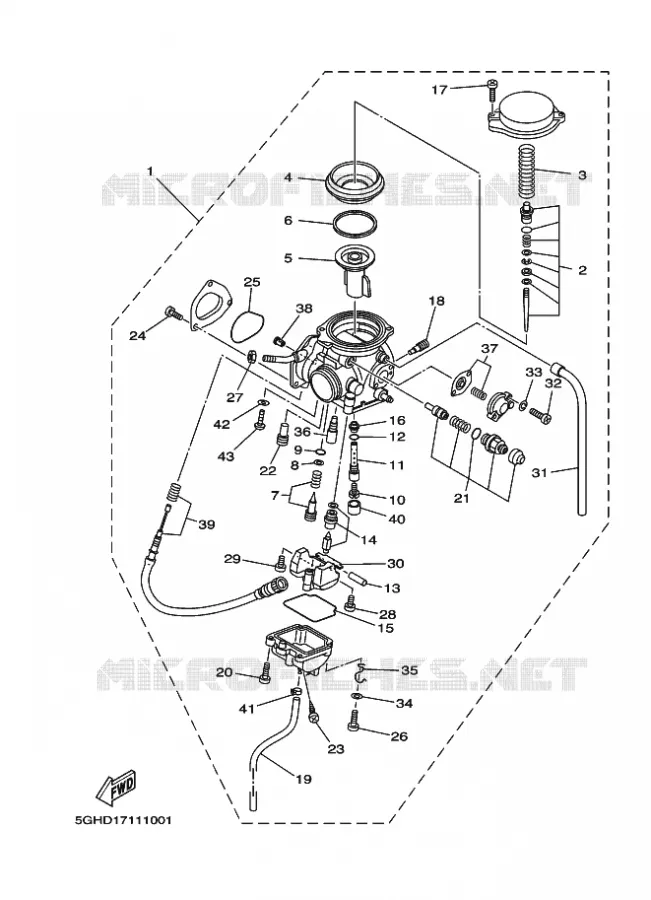

CARBURETOR FOR YAMAHA KODIAK 2002

EXHAUST

Item numbers

CARBURATEUR 1 COMPLET

5GH141011100 5GH141011100

Not available

NEEDLE SET

5GH1490J2000 5GH1490J2000

80,15 $

Unit Price

SPRING, DIAPHRAGM

5DM149330000 5DM149330000

11,51 $

Unit Price

DIAPHRAGM ASSY

5GH149401000 5GH149401000

76,46 $

Unit Price

VALVE, THROTTLE 1

5DM141120000 5DM141120000

114,47 $

Unit Price

RING

5GH149181000 5GH149181000

7,42 $

Unit Price

PILOT SCREW SET

5GH141051000 5GH141051000

19,30 $

Unit Price

WASHER, PILOT SCREW

3H1149620000 3H1149620000

9,51 $

Unit Price

O-RING, PILOT SCREW

3H1141470000 3H1141470000

11,78 $

Unit Price

JET, MAIN (#130)

3G2142312600

3G21423126A0

14,00 $

Unit Price

HOLDER

5GH142610000 5GH142610000

41,24 $

Unit Price

O-RING

583145610000 583145610000

10,59 $

Unit Price

PIN, FLOAT

127141860000 127141860000

8,54 $

Unit Price

NEEDLE VALVE SET

4SV141072000

5UH141072000

46,03 $

Unit Price

O-RING

5DM145610000 5DM145610000

19,72 $

Unit Price

NOZZLE, MAIN

5DM141414000 5DM141414000

38,35 $

Unit Price

SCREW

4KM142160000 4KM142160000

8,90 $

Unit Price

JET, MAIN (# 80)

1HX142311600 1HX142311600

13,98 $

Unit Price

PIPE

4KB141932000 4KB141932000

34,26 $

Unit Price

SCREW, PAN HEAD (E56)

985800401000 985800401000

5,23 $

Unit Price

STARTER SET

5GH1410A0000 5GH1410A0000

62,96 $

Unit Price

JET, MAIN (# 70)

3G2142311400 3G2142311400

14,01 $

Unit Price

PLUG, DRAIN

12R141910000 12R141910000

7,58 $

Unit Price

SCREW, PAN HEAD(3XP)

985070400600

985170400600

6,22 $

Unit Price

O-RING

4WV141471000 4WV141471000

31,75 $

Unit Price

SCREW, PAN HEAD

985070401600

985170401600

2,23 $

Unit Price

NUT, CABLE ADJUSTING

522141610000 522141610000

11,76 $

Unit Price

SCREW, PAN HEAD(JG1)

985070400800 985070400800

1,90 $

Unit Price

SCREW

1FN145650000 1FN145650000

8,54 $

Unit Price

FLOAT

5DM149850000 5DM149850000

86,75 $

Unit Price

PIPE

5GH141970000 5GH141970000

46,41 $

Unit Price

SCREW, PAN HEAD(GA5)

985010401400

985800401400

3,88 $

Unit Price

YBS67-4 WASHER, SPRING

929020410000

929900410000

1,68 $

Unit Price

WASHER(JF2)

929070460000 929070460000

1,83 $

Unit Price

CLIP

5GH149370000 5GH149370000

29,98 $

Unit Price

JET, PILOT (# 17.5)

4KM141421700 4KM141421700

11,92 $

Unit Price

DIAPHRAGM SET 5

5EL1490H0000 5EL1490H0000

65,80 $

Unit Price

GUIDE, CABLE

1UY141550000 1UY141550000

22,41 $

Unit Price

THROTTLE SCREW SET

5GH141030100 5GH141030100

87,60 $

Unit Price

RING

5GH149180000 5GH149180000

22,72 $

Unit Price

CLIP

904670619400 904670619400

0,68 $

Unit Price

WASHER

256149560100 256149560100

4,41 $

Unit Price

SCREW

3DM142160000 3DM142160000

6,38 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CARBURETOR of your Yamaha YFM400FWA of 2002. Let us know if you have any questions.
