TRANSMISSION

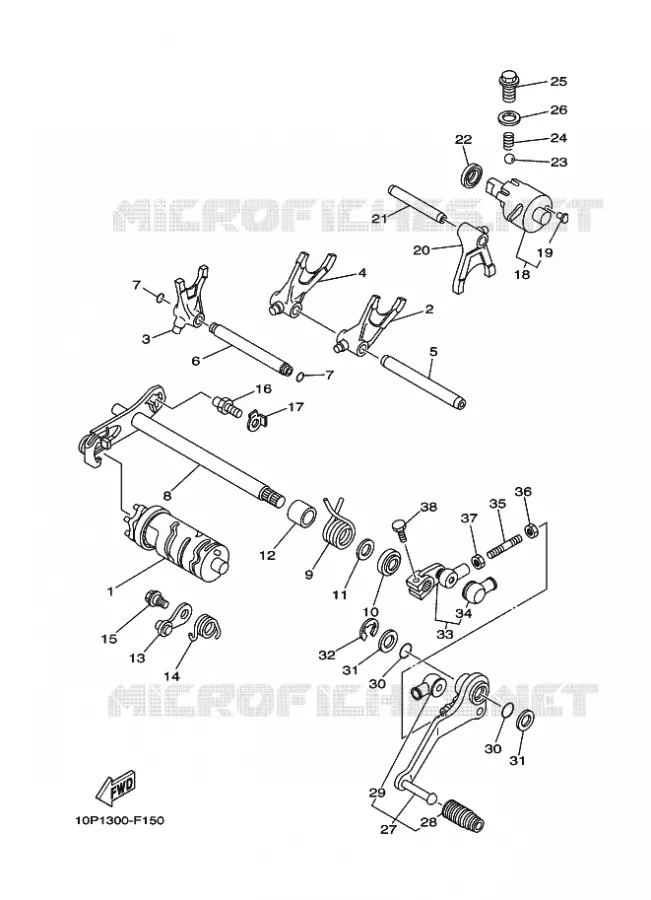

GEAR SHIFT SELECTOR DRUM / FORKS FOR YAMAHA RAPTOR 2009

FRAME

Item numbers

SHIFT CAM ASSY

5YT185400000 5YT185400000

166,27 $

Unit Price

FORK, SHIFT 1

1YW185110000 1YW185110000

48,22 $

Unit Price

FORK, SHIFT 2

4GB185120000 4GB185120000

60,84 $

Unit Price

FORK, SHIFT 3

1UY185130000 1UY185130000

51,42 $

Unit Price

BAR, SHIFT FORK GUIDE 2

22U185350000

4TR185350000

31,11 $

Unit Price

BAR, SHIFT FORK GUIDE 1

4GB185310000 4GB185310000

22,06 $

Unit Price

O-RING (21V)

932100759000 932100759000

6,64 $

Unit Price

SHIFT SHAFT ASSY

1UY181010100

1UY181010200

86,29 $

Unit Price

SPRING, TORSION(1UY)

905083271100 905083271100

13,79 $

Unit Price

OIL SEAL (3Y1)

931021420900 931021420900

14,75 $

Unit Price

WASHER, PLATE(52G)

902011469100

90201144J200

5,09 $

Unit Price

SPACER(1UY)

905601428400 905601428400

14,49 $

Unit Price

STOPPER LEVER ASSY

1UY181400000 1UY181400000

13,28 $

Unit Price

SPRING, TORSION(1UY)

905082571200 905082571200

5,82 $

Unit Price

BOLT

901090618900

901090619000

8,01 $

Unit Price

STOPPER, SCREW

4G0181270000

5VK181270000

12,68 $

Unit Price

WASHER, LOCK(1UY)

902150826000 902150826000

3,63 $

Unit Price

SELECTEUR

3GD184200000 3GD184200000

Not available

POINT, NEUTRAL

3GH185420000 3GH185420000

26,16 $

Unit Price

FORK, SHIFT 1

1UY183110000 1UY183110000

50,57 $

Unit Price

BAR, SHIFT FORK GUIDE 1

2A6185310000 2A6185310000

20,81 $

Unit Price

OIL SEAL (3X3)

931021521200 931021521200

12,69 $

Unit Price

BALL

935030800700 935030800700

1,68 $

Unit Price

SPRING, COMPRESSION (465)

905011035300 905011035300

3,88 $

Unit Price

BOLT, FLANGE

901051400300 901051400300

10,66 $

Unit Price

GASKET(59V)

904301419400 904301419400

7,43 $

Unit Price

SHIFT PEDAL ASSY

5YT181101000 5YT181101000

106,76 $

Unit Price

COVER, SHIFT PEDAL

5YT181130000 5YT181130000

3,98 $

Unit Price

COVER, DUST

2H9181540000 2H9181540000

13,79 $

Unit Price

O-RING (22U)

932101541400

932101556600

5,61 $

Unit Price

WASHER, PLATE

902011501800 902011501800

1,64 $

Unit Price

CIRCLIP (122)

934301200800 934301200800

3,85 $

Unit Price

ARM, SHIFT

1UY181121000 1UY181121000

51,26 $

Unit Price

COVER, DUST

2H9181540000 2H9181540000

13,79 $

Unit Price

ROD, SHIFT

1JN181150000 1JN181150000

19,29 $

Unit Price

NUT (2H9)

901700622800 901700622800

3,89 $

Unit Price

NUT(650)

953020670000

953800670000

4,53 $

Unit Price

BOLT

970120602000 970120602000

0,91 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Yamaha, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
