CRANKCASE

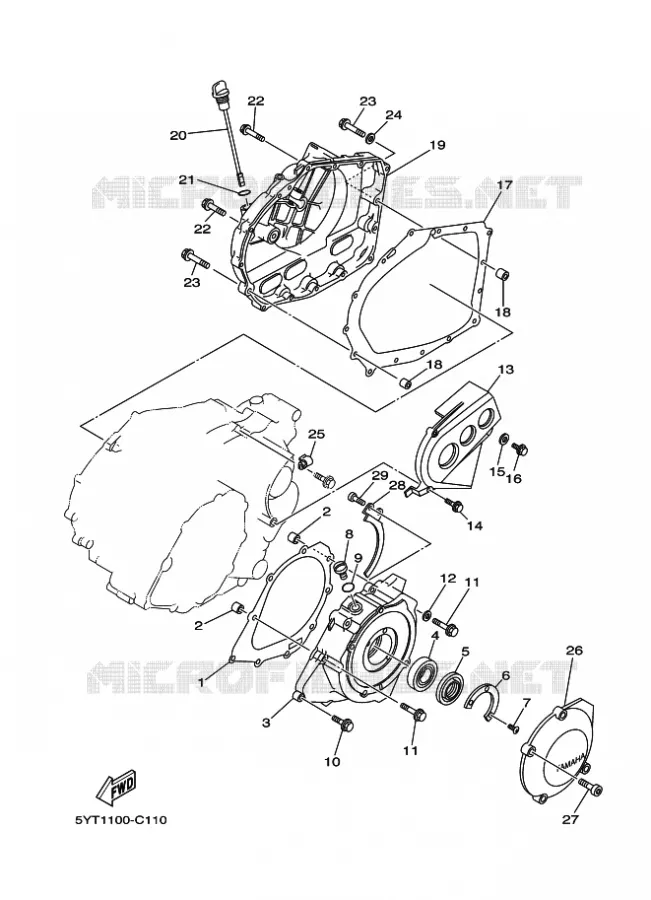

COVER - ENGINE 1 FOR YAMAHA RAPTOR 2009

STARTER CLUTCH

Item numbers

GASKET, CRANKCASE COVER 1

3GD154510000 3GD154510000

21,91 $

Unit Price

PIN, DOWEL

995301201600 995301201600

6,78 $

Unit Price

ADAPTOR

3GD157870300 3GD157870300

296,88 $

Unit Price

BEARING(55X)

933060780100 933060780100

54,15 $

Unit Price

OIL SEAL

931022847600 931022847600

23,01 $

Unit Price

WASHER, THRUST

21V157190000 21V157190000

8,16 $

Unit Price

SCREW, COUNTERSUNK (21V)

901510502300 901510502300

4,00 $

Unit Price

PLUG, STRAIGHT SCREW(2HT)

903401411700 903401411700

17,46 $

Unit Price

O-RING (2H9)

932101436900 932101436900

6,72 $

Unit Price

BOLT, FLANGE

950220602500 950220602500

1,47 $

Unit Price

BOLT, FLANGE

950220604500 950220604500

1,02 $

Unit Price

GASKET 256113960000

904300601400 904300601400

5,45 $

Unit Price

COVER, CRANKCASE 2

1UY154210000 1UY154210000

42,99 $

Unit Price

BOLT, FLANGE

950220602000 950220602000

1,27 $

Unit Price

WASHER, PLATE

902010608500 902010608500

1,21 $

Unit Price

BOLT, FLANGE

950220601600 950220601600

1,27 $

Unit Price

GASKET, CRANKCASE COVER 2

3GD154610000 3GD154610000

34,51 $

Unit Price

PIN, DOWEL

995301201600 995301201600

6,78 $

Unit Price

COVER, CRANKCASE 3

3GD154311000 3GD154311000

393,07 $

Unit Price

PLUG, OIL LEVEL

1UY153620100 1UY153620100

18,30 $

Unit Price

O-RING (5Y1)

932101952200 932101952200

7,87 $

Unit Price

BOLT, FLANGE

950220603000 950220603000

1,47 $

Unit Price

BOLT, FLANGE

950220604000 950220604000

0,89 $

Unit Price

GASKET 256113960000

904300601400 904300601400

5,45 $

Unit Price

CLAMP

904650804500 904650804500

9,91 $

Unit Price

COVER, CRANKCASE 1

3GD154110000 3GD154110000

51,94 $

Unit Price

BOLT, BUTTON HEAD

920120602500 920120602500

1,86 $

Unit Price

STOPPER 1

1UY811750100 1UY811750100

22,04 $

Unit Price

SCREW, PAN

985020601200

985170601200

2,10 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Yamaha, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
