EXHAUST FOR YAMAHA R3 2024

CRANKCASE

Item numbers

EXHAUST PIPE COMP.

B2XE46020000 B2XE46020000

1 895,24 $

Unit Price

MUFFLER ASSY 1

2MSE47100000 2MSE47100000

976,26 $

Unit Price

PROTECTOR, SILENCER

1WDE47580000 1WDE47580000

159,22 $

Unit Price

BOLT

901110680200

901110603100

2,64 $

Unit Price

NUT, SPRING

901830681800 901830681800

4,60 $

Unit Price

PROTECTOR, MUFFLER 2

1WDE47280000 1WDE47280000

127,38 $

Unit Price

GROMMET(4FW)

904801258100 904801258100

8,62 $

Unit Price

COLLAR(50M)

90387087L000 90387087L000

9,08 $

Unit Price

BOLT, HEX. SOCKET BUTTON

901110684700 901110684700

11,99 $

Unit Price

SPACER

1WDE47630000 1WDE47630000

46,69 $

Unit Price

GASKET, MUFFLER

54DE47140000 54DE47140000

12,50 $

Unit Price

BAND, MUFFLER

1WDE47150000 1WDE47150000

53,53 $

Unit Price

BOLT, FLANGE(4MY)

950270803500 950270803500

5,09 $

Unit Price

COLLAR

90387068N400 90387068N400

11,87 $

Unit Price

WASHER, PLATE

902010608800 902010608800

1,04 $

Unit Price

NUT, SPRING(JA3)

901830601100

901830607100

0,80 $

Unit Price

GASKET, EXHAUST PIPE

1WDE46130000 1WDE46130000

16,10 $

Unit Price

NUT, FLANGE(JN5)

957070850000 957070850000

1,74 $

Unit Price

BOLT, FLANGE

90105088G700 90105088G700

5,99 $

Unit Price

WASHER, PLATE (1A0)

902010861200 902010861200

7,02 $

Unit Price

PROTECTOR, EXHAUST PIPE

B1XE46280000 B1XE46280000

46,11 $

Unit Price

SEAT

B1XE475P0000 B1XE475P0000

38,47 $

Unit Price

BOLT, HEXAGON SOCKET HEAD

901110686000 901110686000

4,89 $

Unit Price

NUT, SELF-LOCKING

956070820000

901850816900

7,57 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.

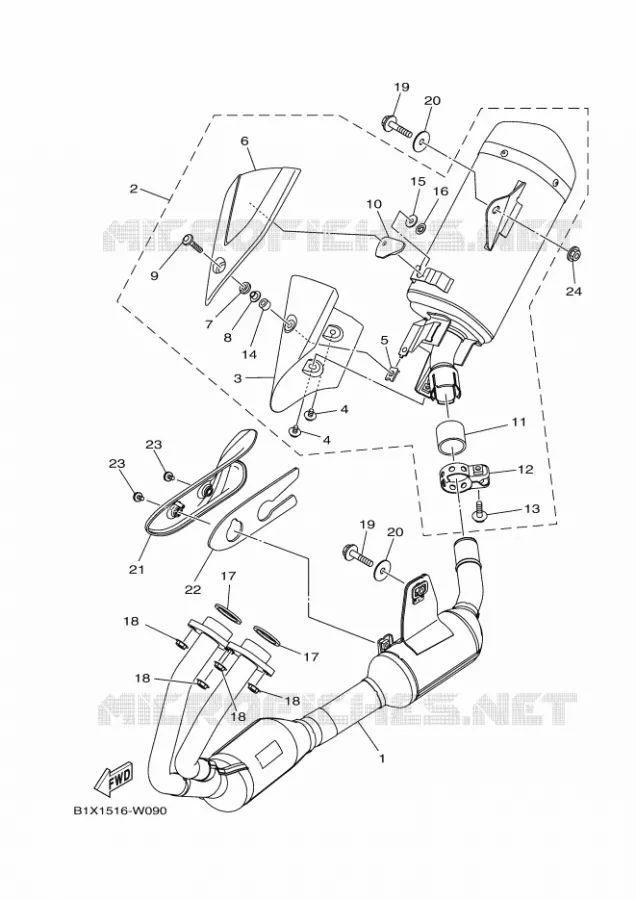

Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the EXHAUST of your Yamaha R3 of 2024. Let us know if you have any questions.
