ELECTRICAL 1

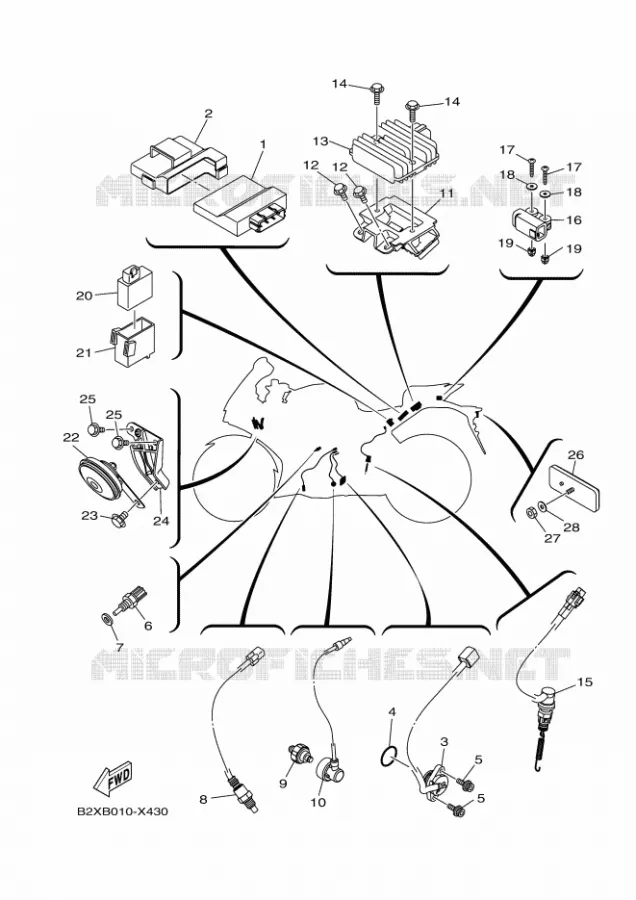

ELECTRICAL 2 FOR YAMAHA R3 2024

ELECTRICAL 3

Item numbers

ENGINE CONTROL UNIT ASSY

B2XH591A0000 B2XH591A0000

Not available

BAND

B6WH55460000 B6WH55460000

31,35 $

Unit Price

NEUTRAL SWITCH ASSY

1WDH25400000 1WDH25400000

94,77 $

Unit Price

O-RING (1S71)

932102180100 932102180100

2,32 $

Unit Price

BOLT, HEXAGON SOCKET HEAD

901100506700

901100503800

1,67 $

Unit Price

THERMO UNIT

52BH35910000 52BH35910000

70,06 $

Unit Price

GASKET

904301080400 904301080400

18,04 $

Unit Price

SENSOR, OXYGEN

B1XH592A0000 B1XH592A0000

641,68 $

Unit Price

OIL PRESSURE SWITCH ASSY

1WS825040000

1WS825040100

97,97 $

Unit Price

LEAD WIRE ASSY

1WDH13150200 1WDH13150200

28,54 $

Unit Price

COVER

BR5H19610000 BR5H19610000

102,24 $

Unit Price

BOLT, FLANGE DEEP RECESS

95D020601600 95D020601600

0,50 $

Unit Price

RECTIFIER & REGULATOR ASSY

1WDH19600000 1WDH19600000

504,90 $

Unit Price

BOLT, FLANGE DEEP RECESS

95D020602500 95D020602500

0,30 $

Unit Price

STOP SWITCH ASSY

1WDH25301000 1WDH25301000

85,74 $

Unit Price

SENSOR, LEAN ANGLE

1WDH25760000

1WDH25760200

389,19 $

Unit Price

SCREW, ROUND TAPPING

901600400900 901600400900

0,80 $

Unit Price

WASHER, PLATE

902010402800 902010402800

1,47 $

Unit Price

NUT, ADJUSTING

4B4843340000 4B4843340000

0,71 $

Unit Price

FLASHER CONT. UNIT ASSY

B9T834000000 B9T834000000

225,17 $

Unit Price

BAND

B9TH38360000 B9TH38360000

9,24 $

Unit Price

HORN

1WDH33710000 1WDH33710000

172,79 $

Unit Price

BOLT, FLANGE DEEP

95D070801200 95D070801200

0,99 $

Unit Price

STAY, HORN

1WDH33780000 1WDH33780000

119,76 $

Unit Price

BOLT, FLANGE DEEP RECESS

95D070601600 95D070601600

0,55 $

Unit Price

REAR REFLECTOR ASSY

3C1H51300000 3C1H51300000

13,76 $

Unit Price

NUT, U

956020510000

956170510000

5,12 $

Unit Price

WASHER, PLATE

902010504300 902010504300

0,83 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the ELECTRICAL 2 of your Yamaha R3 of 2024. Let us know if you have any questions.
