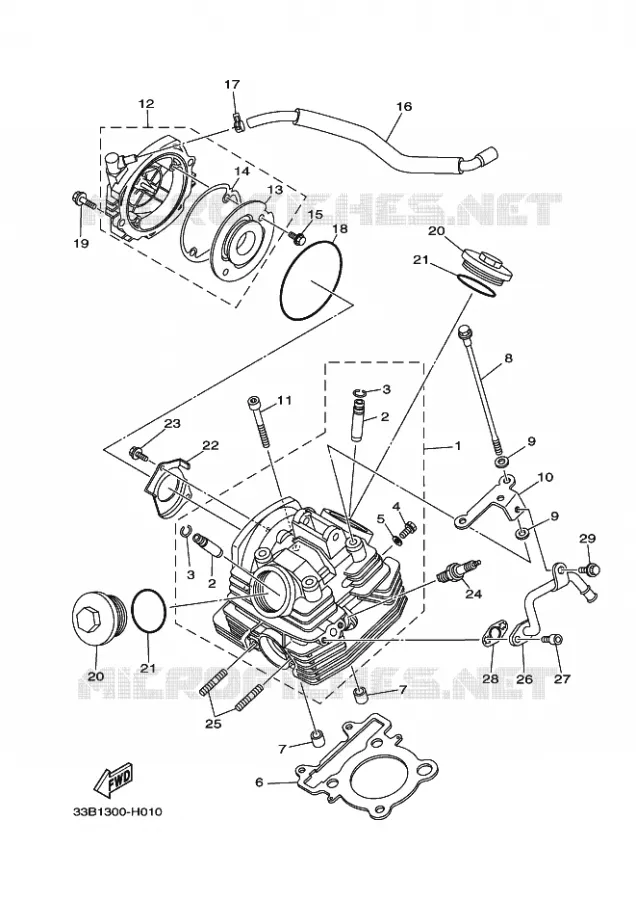

CYLINDER HEAD FOR YAMAHA RAPTOR 2011

CYLINDER

Item numbers

CYLINDER HEAD ASSY

3C5111020000 3C5111020000

783,49 $

Unit Price

GUIDE, INTAKE VALVE

5H0111331100 5H0111331100

76,31 $

Unit Price

CIRCLIP (4G0)

934401008500 934401008500

5,61 $

Unit Price

SCREW, HEXAGON

901530600200 901530600200

0,52 $

Unit Price

GASKET 256113960000

904300601400 904300601400

5,45 $

Unit Price

GASKET, CYLINDER HEAD 1

5XT111810000 5XT111810000

33,65 $

Unit Price

PIN, DOWEL

995301401600 995301401600

8,50 $

Unit Price

BOLT, FLANGE

901050816000 901050816000

8,10 $

Unit Price

WASHER, PLATE 8A7

902010860900 902010860900

6,54 $

Unit Price

SUPPORT

33B148670000 33B148670000

Not available

BOLT, SOCKET

913120804500

913170804500

8,97 $

Unit Price

COVER, CYLINDER HEAD 1

4D3111900000 4D3111900000

141,25 $

Unit Price

PLATE, BREATHER

5XT111650000 5XT111650000

19,14 $

Unit Price

GASKET, CYLINDER HEAD SIDE

4D3111960000 4D3111960000

3,67 $

Unit Price

BOLT, FLANGE

901050612600

950220601000

1,04 $

Unit Price

PIPE, BREATHER 1

4D3111660000 4D3111660000

36,19 $

Unit Price

CLIP (7K7)

904671205300

904671104400

8,37 $

Unit Price

O-RING (5H0)

932110547100 932110547100

16,49 $

Unit Price

BOLT, FLANGE

950220602000 950220602000

1,27 $

Unit Price

COVER, CYLINDER HEAD SIDE 2

4D3111860000 4D3111860000

26,41 $

Unit Price

O-RING

932105400100 932105400100

8,16 $

Unit Price

PLATE

5XT1111F0000 5XT1111F0000

23,69 $

Unit Price

BOLT, FLANGE

901050607800

950220601200

1,04 $

Unit Price

SPARK PLUG DR7EA

947010034500 947010034500

4,95 $

Unit Price

BOLT, STUD

901160802300 901160802300

9,89 $

Unit Price

DURITE 1

33BE48710000 33BE48710000

Not available

BOLT, SOCKET

913120601600

913170601600

3,51 $

Unit Price

GASKET

5XT148150000 5XT148150000

8,08 $

Unit Price

BOLT, FLANGE

958020600800

958120600800

1,42 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CYLINDER HEAD of your Yamaha YFM250R of 2011. Let us know if you have any questions.
