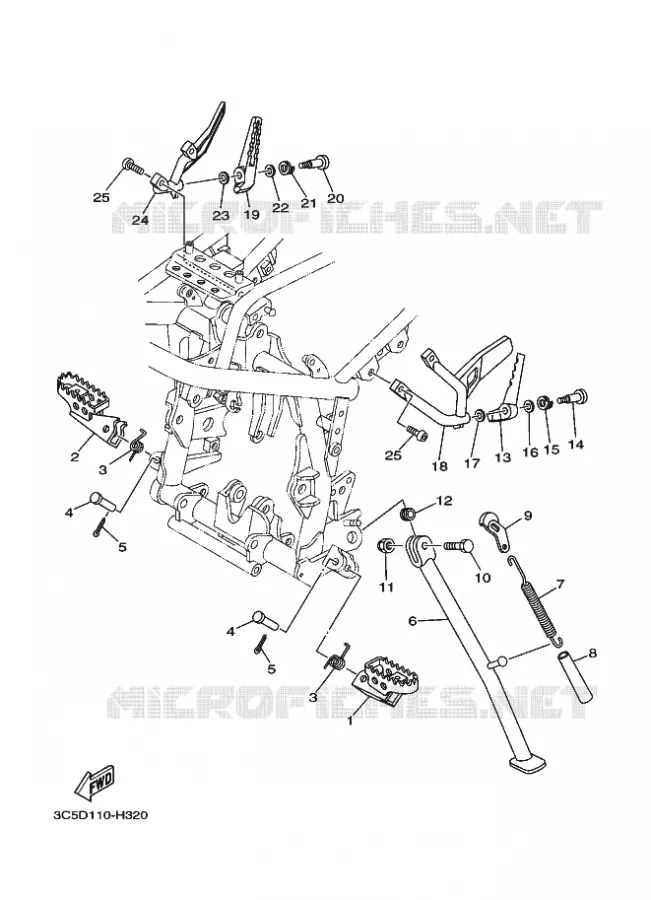

STAND / FOOTREST FOR YAMAHA XT 2016

REAR BRAKE MASTER CYLINDER

Item numbers

FOOTREST 1

3LD274111000 3LD274111000

50,02 $

Unit Price

FOOTREST 2

3LD274211000 3LD274211000

50,06 $

Unit Price

SPRING, TORSION (23X)

905082058300 905082058300

3,39 $

Unit Price

PIN, CLEVIS (23X)

902401010100 902401010100

10,04 $

Unit Price

PIN, COTTER

914012501500

914902502000

3,93 $

Unit Price

STAND, SIDE

3C5273111000

3C5273111100

102,25 $

Unit Price

SPRING, TENSION(3XP)

905063547300 905063547300

17,09 $

Unit Price

HOSE (L70)

904452232700 904452232700

6,68 $

Unit Price

LINK, SIDE STAND

5XT273150100 5XT273150100

10,12 $

Unit Price

BOLT

901011001300 901011001300

7,27 $

Unit Price

NUT, SELF-LOCKING

901851001200 901851001200

7,59 $

Unit Price

COLLAR

903871000300 903871000300

22,95 $

Unit Price

FOOTREST, REAR 1

3XP274310200 3XP274310200

38,64 $

Unit Price

BOLT(3XP)

90109085F500 90109085F500

8,62 $

Unit Price

SPRING, COMPRESSION (5L1)

905041800500

905041803100

3,65 $

Unit Price

WASHER(6TA)

929071060000 929071060000

2,10 $

Unit Price

WASHER, PLATE(3XP)

90201083P500 90201083P500

5,09 $

Unit Price

BRACKET 1

3C5274320000 3C5274320000

85,32 $

Unit Price

FOOTREST, REAR 2

3XP274410200 3XP274410200

38,64 $

Unit Price

BOLT(3XP)

90109085F500 90109085F500

8,62 $

Unit Price

SPRING, COMPRESSION (5L1)

905041800500

905041803100

3,65 $

Unit Price

WASHER(6TA)

929071060000 929071060000

2,10 $

Unit Price

WASHER, PLATE(3XP)

90201083P500 90201083P500

5,09 $

Unit Price

BRACKET 2

3C5274420000 3C5274420000

85,32 $

Unit Price

BOLT, BUTTON HEAD

920120802000 920120802000

2,42 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Yamaha, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
