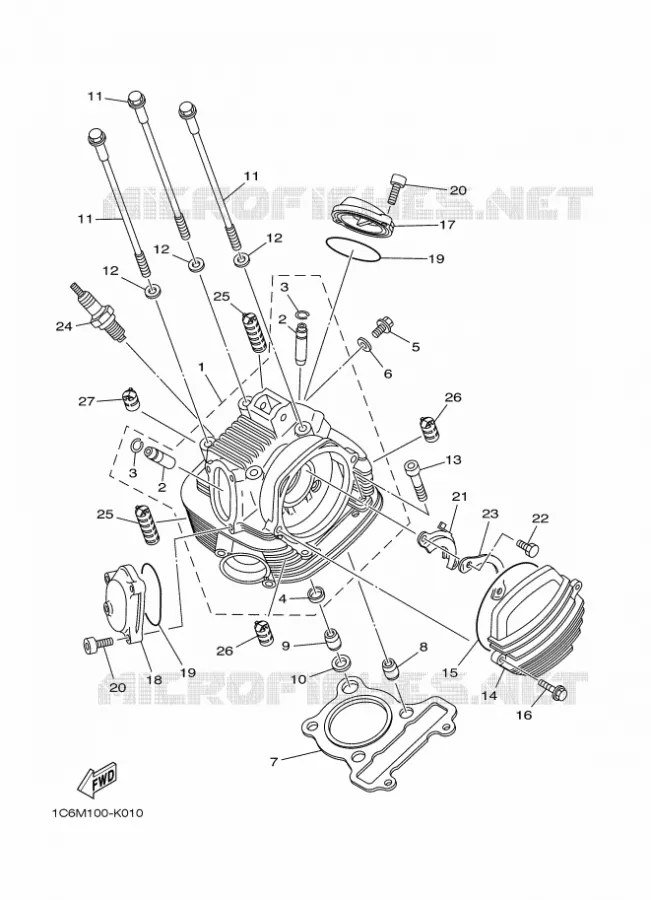

CYLINDER HEAD FOR YAMAHA TTR 2024

CYLINDER

Item numbers

CYLINDER HEAD ASSY

1C6111010000 1C6111010000

1 124,41 $

Unit Price

GUIDE, INTAKE VALVE

5H0111331100 5H0111331100

76,31 $

Unit Price

CIRCLIP (4G0)

934401008500 934401008500

5,61 $

Unit Price

COLLAR

903851203900 903851203900

12,02 $

Unit Price

SCREW

901530602900 901530602900

0,52 $

Unit Price

GASKET 256113960000

904300601400 904300601400

5,45 $

Unit Price

GASKET, CYLINDER HEAD 1

59V111810000 59V111810000

41,16 $

Unit Price

PIN, DOWEL

918101601600

995301401600

8,50 $

Unit Price

PIN, DOWEL(4XL)

918121680700

936121625400

6,52 $

Unit Price

GASKET (29U)

904301218600 904301218600

16,01 $

Unit Price

BOLT, FLANGE

901050811700 901050811700

8,50 $

Unit Price

WASHER, PLATE 8A7

902010860900 902010860900

6,54 $

Unit Price

BOLT

9131M0804500 9131M0804500

8,48 $

Unit Price

CYLINDER HEAD COVER, SIDE 1

4VWE11851000 4VWE11851000

91,46 $

Unit Price

O-RING (5H0)

932110547100 932110547100

16,49 $

Unit Price

SCREW, PAN

9502M0602000

985170602000

4,41 $

Unit Price

COVER, CYLINDER HEAD SIDE 2

4VWE11861000 4VWE11861000

53,72 $

Unit Price

CYLINDER HEAD COVER, SIDE 3

4VWE11871000 4VWE11871000

57,15 $

Unit Price

O-RING

932105763400 932105763400

16,28 $

Unit Price

BOLT

9131M0601800 9131M0601800

3,51 $

Unit Price

PLATE

5H01111F0000 5H01111F0000

26,25 $

Unit Price

BOLT, HEXAGON

9700M0601200

970170601200

2,48 $

Unit Price

WASHER, LOCK (5H0)

902150618400 902150618400

9,22 $

Unit Price

SPARK PLUG DR8EA

947000082200

947010033300

5,32 $

Unit Price

ABSORBER 2

15A111620000 15A111620000

8,84 $

Unit Price

ABSORBER 1

5H0111620000

5H0111610000

5,96 $

Unit Price

ABSORBER 2

15A111610100

15A111620000

8,84 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CYLINDER HEAD of your Yamaha TT-R 230 of 2024. Let us know if you have any questions.
