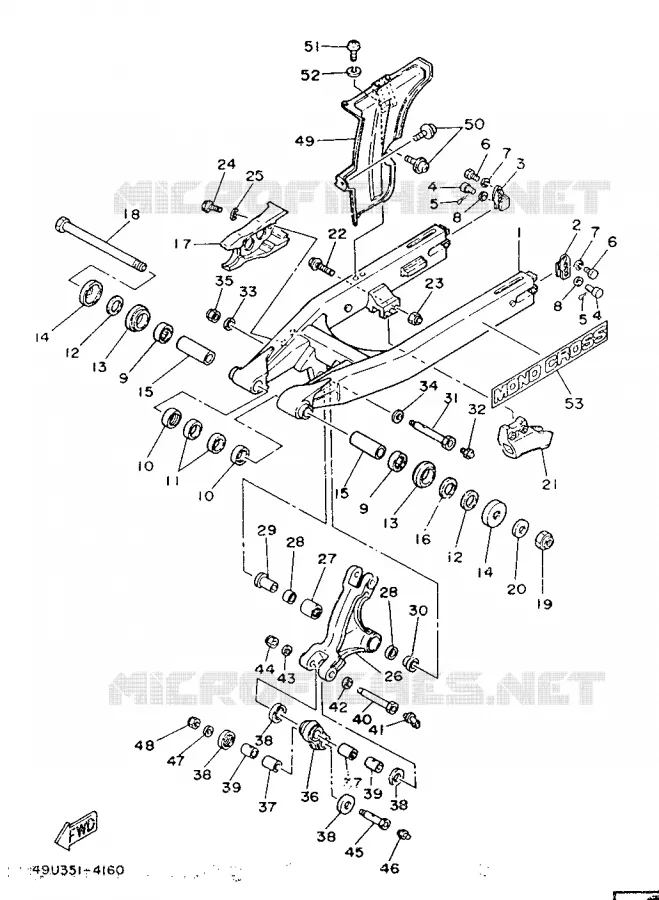

SWINGARM FOR YAMAHA IT 1986

REAR SHOCK ABSORBER

BRAS ARRIERE COMP.

43G221100000 43G221100000

Not available

PLAQUE 1

43G2539F0000 43G2539F0000

Not available

PLAQUE 2

43G2539G0000 43G2539G0000

Not available

PIN, CLEVIS (682)

917010502000

917900502000

3,27 $

Unit Price

PIN, COTTER (E57)

914011601500

914901602000

3,78 $

Unit Price

BOLT, HEXAGON DEEP RECESS

973010601600

97D950601600

1,96 $

Unit Price

WASHER(6A1)

929900610000

929950610000

1,46 $

Unit Price

WASHER(1RW)

929010560000

929070560000

2,13 $

Unit Price

BEARING, CYLINDRICAL (23X)

933173223100 933173223100

42,70 $

Unit Price

BUSH, SOLID (23X)

903802211100 903802211100

22,47 $

Unit Price

OIL SEAL (23X)

931062201900 931062201900

14,01 $

Unit Price

RONDELLE, PLATE

902012268000 902012268000

Not available

OIL SEAL (35X41.5X8-483)

931083500400 931083500400

17,66 $

Unit Price

COVER, THRUST

2K6221280100 2K6221280100

31,11 $

Unit Price

BUSH, SOLID (3R4)

903801607700 903801607700

43,90 $

Unit Price

SHIM

156221270000 156221270000

2,79 $

Unit Price

SEAL, GUARD

39W221510000 39W221510000

29,98 $

Unit Price

PIVOT SHAFT

5X4221410100 5X4221410100

78,62 $

Unit Price

NUT, SELF-LOCKING

901851612700

901851600200

21,31 $

Unit Price

WASHER, PLATE (5X6)

90201160F600 90201160F600

9,94 $

Unit Price

SUPPORT, CHAIN

39W221990000

39W221990100

31,48 $

Unit Price

BOLT, FLANGE(JN5)

958020804500

958170804500

4,30 $

Unit Price

NUT, SELF-LOCKING

901850810600

956010820000

3,15 $

Unit Price

BOLT, FLANGE

958010602000

958170602000

3,91 $

Unit Price

WASHER, PLATE

902010606700

902010638000

5,48 $

Unit Price

BRAS DE LIAISON

43G2217A0000 43G2217A0000

Not available

BEARING, CYLINDRICAL (23X)

933173203400 933173203400

46,87 $

Unit Price

OIL SEAL

931092002900

931092007600

17,65 $

Unit Price

COLLERETTE

90387147G600 90387147G600

Not available

COLLAR (23X)

90387147G700 90387147G700

Not available

BOULON

901091270100 901091270100

Not available

NIPPLE, GREASE(6A1)

937000600400

9370006M0300

11,55 $

Unit Price

WASHER, PLATE (8K2)

90201120A500 90201120A500

5,48 $

Unit Price

WASHER, PLATE(3FC)

902011422200

90201142M600

4,71 $

Unit Price

NUT, SELF LOCKING (23X)

901851211900 901851211900

11,34 $

Unit Price

CONNECTING ROD 1

23X2217F0000 23X2217F0000

78,02 $

Unit Price

BEARING, CYLINDRICAL (23X)

933153173200 933153173200

44,85 $

Unit Price

COVER, THRUST 2

23X221290000

55K221290000

24,29 $

Unit Price

COLLAR (23X)

90387121H100 90387121H100

20,85 $

Unit Price

BOULON

901091070200 901091070200

Not available

NIPPLE, GREASE

937000600500 937000600500

13,35 $

Unit Price

WASHER, PLATE

90201120E600

902011202700

6,23 $

Unit Price

WASHER, PLATE(6TC)

90201100E900

9020110M0500

7,82 $

Unit Price

NUT, SELF LOCKING (23X)

901851012000 901851012000

6,52 $

Unit Price

BOULON

901091070300 901091070300

Not available

NIPPLE, GREASE

937000600500 937000600500

13,35 $

Unit Price

WASHER (7A9)

90201100F700 90201100F700

7,77 $

Unit Price

NUT, U

956111010000

956141010000

6,69 $

Unit Price

CHAIN CASE COMP

5X8W22310100 5X8W22310100

75,30 $

Unit Price

SCREW, WITH WASHER (1W4)

901590601600 901590601600

4,03 $

Unit Price

SCREW, PAN

925010601200

985170601200

2,10 $

Unit Price

WASHER(6A1)

929900610000

929950610000

1,46 $

Unit Price

EMBLEME, BRAS ARRIERE

1TY2218A0000 1TY2218A0000

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the SWINGARM of your Yamaha IT200 of 1986. Let us know if you have any questions.
