INTAKE

CARBURETOR FOR YAMAHA IT 1986

EXHAUST

CARBURATEUR 1 COMPLET

43G141010000 43G141010000

Not available

.FLOTTEUR FLOTTEUR

310141850000 310141850000

Not available

JET, MAIN #330

137141436600

1371414366A1

11,49 $

Unit Price

.PUITS D AIGUILLE PUITS D AIGUILLE

239141414600 239141414600

Not available

.PLAQUE PLAQUE

483141460000 483141460000

Not available

.JEU D AIGUILLES JEU D AIGUILLES

24X1490J0000 24X1490J0000

Not available

THROTTLE SCREW SET

24X141030000

40T141030000

14,55 $

Unit Price

SCREW, PAN HEAD(6B0)

985010501600

978850501600

6,78 $

Unit Price

YBS67-5 WASHER, SPRING

929900510000 929900510000

1,68 $

Unit Price

PIPE, OVER FLOW

493141960000

2J2141960000

23,84 $

Unit Price

AIR SCREW SET

43G141040000 43G141040000

27,60 $

Unit Price

.JEU DE STARTERS JEU DE STARTERS

43G1410A0000 43G1410A0000

Not available

HOSE

310141970000

89A149870000

16,74 $

Unit Price

.PLAQUE PLAQUE

313141460000 313141460000

Not available

.RESSORT, BOISSEAU RESSORT, BOISSEAU

363141310000 363141310000

Not available

.BOISSEAU 1 BOISSEAU 1

5X8141122000 5X8141122000

Not available

GASKET, FLOAT CHAMBER

483141840000 483141840000

24,68 $

Unit Price

PILOT JET

193141425500 193141425500

10,39 $

Unit Price

O-RING (541)

558141470000 558141470000

11,26 $

Unit Price

PLUG, SCREW

500141150000 500141150000

32,74 $

Unit Price

.RONDELLE, GICLEUR PRINCIPAL RONDELLE, GICLEUR PRINCIPAL

1G8141530000 1G8141530000

Not available

.BRAS, FLOTTEUR BRAS, FLOTTEUR

310141870000 310141870000

Not available

NEEDLE VALVE SET

24X141073300 24X141073300

43,36 $

Unit Price

PIN, FLOAT

127141860000 127141860000

8,54 $

Unit Price

.DESSUS, CHAMBRE DE MELANGE DESSUS, CHAMBRE DE MELANGE

3R3141580000 3R3141580000

Not available

CABLE ADJUST SCREW

24X141060000 24X141060000

28,73 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.

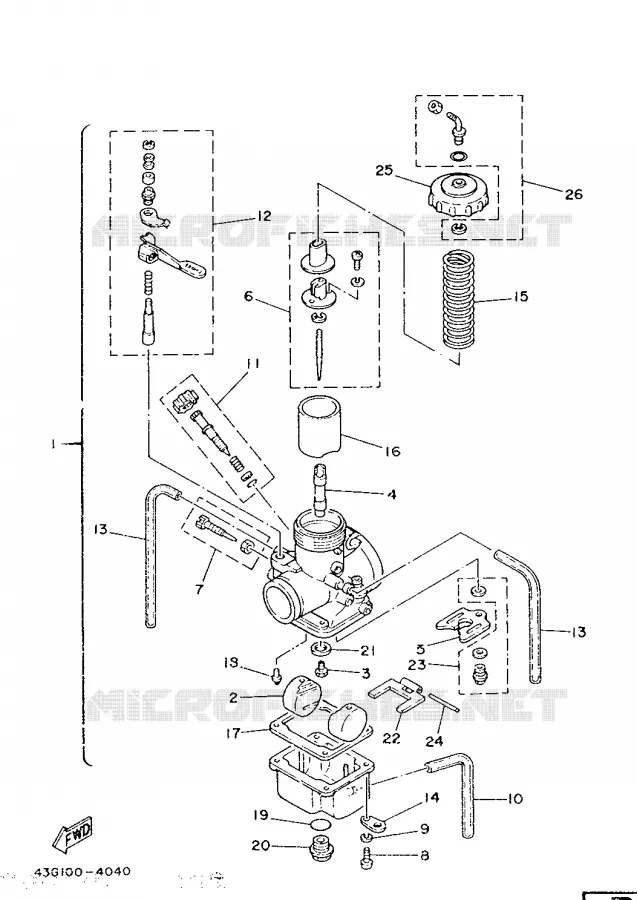

Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CARBURETOR of your Yamaha IT200 of 1986. Let us know if you have any questions.
