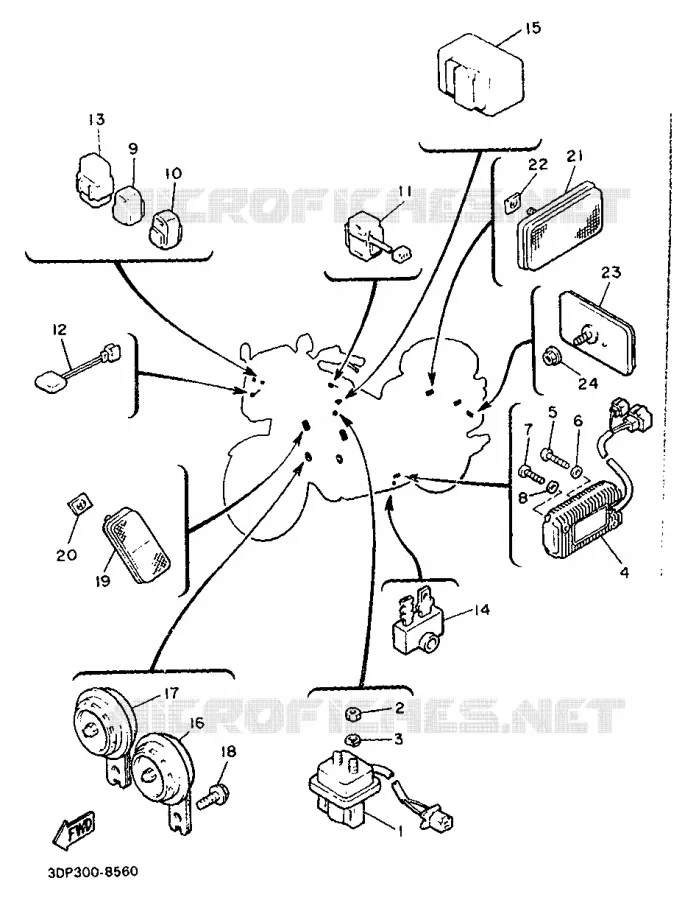

ELECTRICAL 1 FOR YAMAHA ROYALE VENTURE 1988

ELECTRICAL 2

STARTER RELAY ASSY (MS5D-611)

22U819400000

4KD819400000

71,90 $

Unit Price

NUT(650)

953030670000

953800670000

4,53 $

Unit Price

WASHER(6A1)

929900610000

929950610000

1,46 $

Unit Price

RECTIFIER & REGULATOR

26H81960A000 26H81960A000

202,83 $

Unit Price

SCREW, PAN

925060603500

985070603500

2,10 $

Unit Price

WASHER(6TA)

929060660000

929070660000

1,83 $

Unit Price

SCREW, PAN HEAD(3TJ)

925060601600

985070601600

2,29 $

Unit Price

WASHER(6TA)

929060660000

929070660000

1,83 $

Unit Price

RELAY ASSY

1NL819500000

25G819500200

116,59 $

Unit Price

RELAY ASSY (4U8-02)

4U8819500200

Not available

COUPE-CIRCUIT DE SECURITE CPLT

2H7825760000 2H7825760000

Not available

RECTIFIER 2

4H781980M000 4H781980M000

40,52 $

Unit Price

CONTROL UNIT ASSY

41R857400000 41R857400000

115,20 $

Unit Price

RECTIFIRE ASSY

1M1819706000 1M1819706000

35,28 $

Unit Price

FLASHER RELAY ASSY

41R833507100

41R833507200

284,64 $

Unit Price

AVERTISSEUR

47G833712000 47G833712000

Not available

AVERTISSEUR

47G833713000 47G833713000

Not available

BOLT, FLANGE (3JPE)

950230801600

950240801600

3,62 $

Unit Price

PLATE, DESIGN

47G851500000 47G851500000

28,63 $

Unit Price

NUT, SPRING (2N3)

901830501700 901830501700

3,62 $

Unit Price

PLATE, DESIGN

47G851500000 47G851500000

28,63 $

Unit Price

NUT, SPRING (2N3)

901830501700 901830501700

3,62 $

Unit Price

REFLECTOR

3Y6851300100

3Y6851300200

31,86 $

Unit Price

NUT, FLANGE(3GM)

957010550000

957070550000

2,29 $

Unit Price
