CATALOGUE

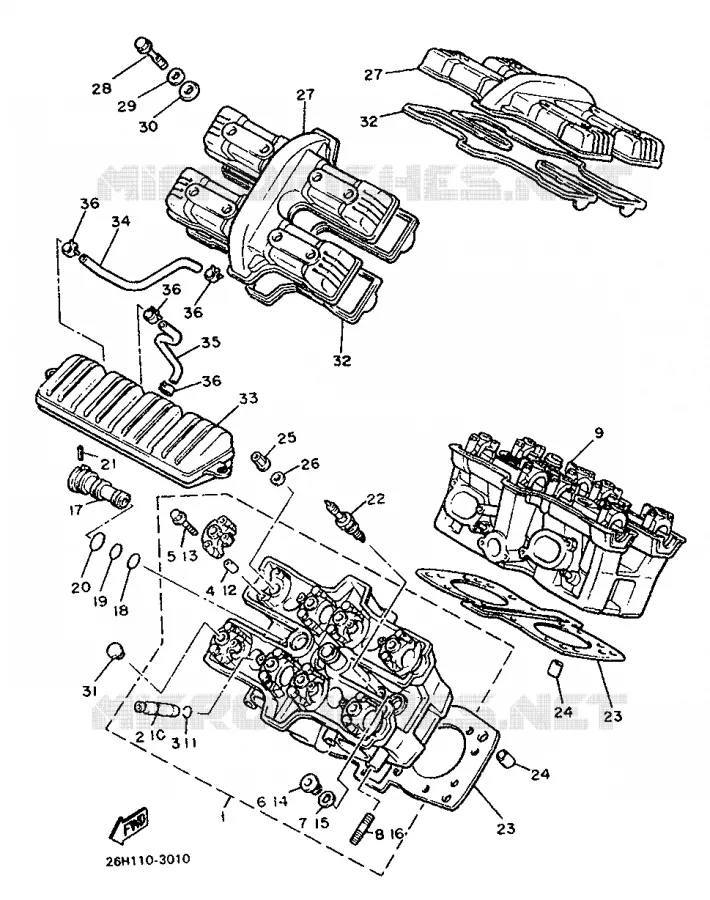

CYLINDER HEAD FOR YAMAHA ROYALE VENTURE 1988

CRANKSHAFT / PISTON

CYLINDER HEAD ASSY

26H111100100 26H111100100

1 471,04 $

Unit Price

GUIDE, INTAKE VALVE (1ST O-S)

26H111331000 26H111331000

47,63 $

Unit Price

CIRCLIP (26H)

934401211700 934401211700

0,36 $

Unit Price

PIN, DOWEL(3XW)

995100801600

918081602300

4,63 $

Unit Price

BOLT, WASHER BASED (4H7)

901050615300 901050615300

4,04 $

Unit Price

PLUG, STRAIGHT SCREW (26H)

903402009000 903402009000

15,27 $

Unit Price

.RONDELLE, PLATE RONDELLE, PLATE

90201195F400 90201195F400

Not available

BOLT, STUD 3

959110862500

956170862500

5,60 $

Unit Price

CYLINDER HEAD ASSY

26H111200100 26H111200100

1 474,91 $

Unit Price

GUIDE, INTAKE VALVE (1ST O-S)

26H111331000 26H111331000

47,63 $

Unit Price

CIRCLIP (26H)

934401211700 934401211700

0,36 $

Unit Price

PIN, DOWEL(3XW)

995100801600

918081602300

4,63 $

Unit Price

BOLT, WASHER BASED (4H7)

901050615300 901050615300

4,04 $

Unit Price

PLUG, STRAIGHT SCREW (26H)

903402009000 903402009000

15,27 $

Unit Price

.RONDELLE, PLATE RONDELLE, PLATE

90201195F400 90201195F400

Not available

BOLT, STUD 3

959110862500

956170862500

5,60 $

Unit Price

JOINT 1

26H124690100 26H124690100

19,06 $

Unit Price

O-RING (26H)

932101662900 932101662900

7,71 $

Unit Price

O-RING (1L9)

932101832200 932101832200

6,88 $

Unit Price

O-RING (26H)

932102163100 932102163100

8,16 $

Unit Price

PIN, SPRING

902540300800

916903002500

6,13 $

Unit Price

SPARK PLUG DPR8EA-9

947010024100 947010024100

5,32 $

Unit Price

BOUGIE D, ALLUMAGE

947010024200 947010024200

Not available

GASKET, CYLINDER HEAD 1

26H111810000

26H111810200

56,36 $

Unit Price

PIN, DOWEL

995101201600

995301201600

6,78 $

Unit Price

NUT (26H)

901791041400 901791041400

9,77 $

Unit Price

WASHER, PLATE (26H)

90201102G900 90201102G900

7,77 $

Unit Price

COVER, CYLINDER HEAD 1

26H111910100

26H111910200

178,43 $

Unit Price

BOLT(3TJ)

901090674600

90109064F000

16,40 $

Unit Price

WASHER(46X)

902091126200 902091126200

8,37 $

Unit Price

RUBBER, MOUNT 1

2GH1111G0000 2GH1111G0000

6,80 $

Unit Price

PLUG (31M)

903381015000 903381015000

3,75 $

Unit Price

GASKET, HEAD COVER 1

26H111930000

26H111930100

61,31 $

Unit Price

CHAMBLE A AIR COMPLET

26H135800000 26H135800000

Not available

DURITE 1

26H1111J0000 26H1111J0000

Not available

DURITE 2

26H1112J0000 26H1112J0000

Not available

CLIP (7K7)

904671104400 904671104400

8,37 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CYLINDER HEAD of your Yamaha XVZ12TD of 1988. Let us know if you have any questions.

Select your Yamaha ROYALE VENTURE model from 1988
