SIDE COVER

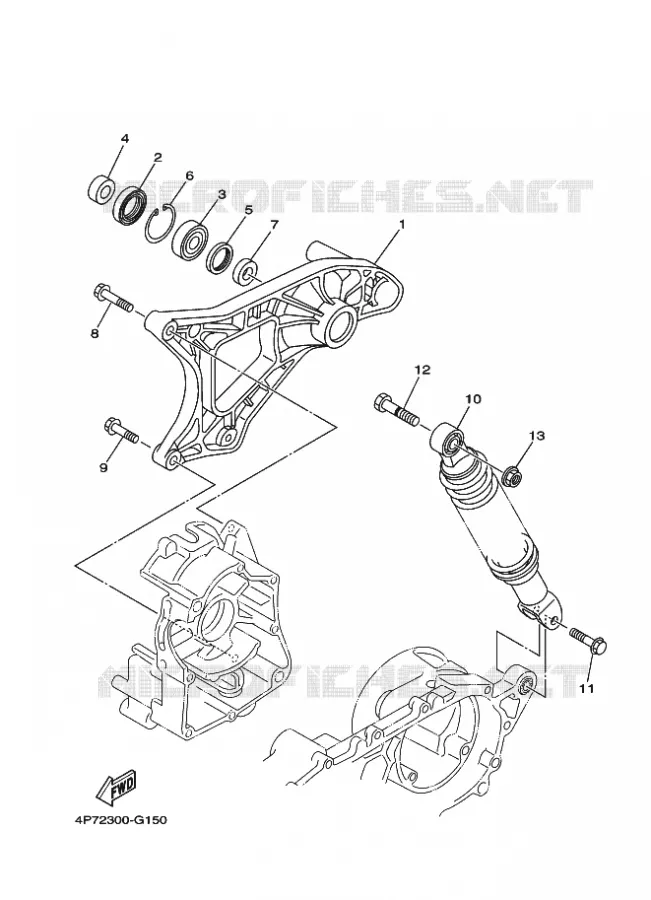

SWINGARM / SHOCK ABSORBER FOR YAMAHA WAAP 2011

FRONT FORK

Item numbers

BRAS, ARRIERE 1

4P7F21710000 4P7F21710000

Not available

JOINT SPY

931062880800 931062880800

Not available

BRG.

93306302X100 93306302X100

20,81 $

Unit Price

COLLAR

903871581300 903871581300

9,81 $

Unit Price

JOINT SPY

931092881100 931092881100

Not available

CIRCLIP(5U8)

990094250000 990094250000

4,26 $

Unit Price

COLLERETTE

903871581500 903871581500

Not available

BOLT, FLANGE

958120803500

958170803500

4,22 $

Unit Price

BOLT, FLANGE

958120803000 958120803000

3,34 $

Unit Price

AMORTISSEUR, ARRIERE

4P7F22100100 4P7F22100100

Not available

BOULON

901050886100 901050886100

Not available

BOULON

901011080900 901011080900

Not available

NUT, FLANGE(3BM)

957021050000

957041050000

3,47 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the SWINGARM / SHOCK ABSORBER of your Yamaha XC125E of 2011. Let us know if you have any questions.
