STARTER MOTOR

STARTER CLUTCH FOR YAMAHA WAAP 2011

TRANSMISSION

Item numbers

PIGNON D'ENTRAINEMT PRIMAIRE

4KLE61110000 4KLE61110000

Not available

ROULEMENT

93306204YN00 93306204YN00

Not available

JOINT SPY

931022280500 931022280500

Not available

CARTER D'EMBRAYAGE COMPLET

5WGE66110100 5WGE66110100

Not available

ECROU

901791480500 901791480500

Not available

BRG, R-B 6203RS 40MM 63.3G KY

93306203Y000

933062031000

14,92 $

Unit Price

POULIE PRIM AIRE

5WGE76011000 5WGE76011000

Not available

POUL PRIM COULISSANTE COMP.

5WGE76201000 5WGE76201000

Not available

POIDS

4KLE76320000 4KLE76320000

Not available

CAME

5WGE76230000 5WGE76230000

Not available

POTENCE

5WGE76531000 5WGE76531000

Not available

EMBRAYAGE

4KLE56570000 4KLE56570000

Not available

WASHER, CONICAL SPRING(87A)

902081205000 902081205000

9,47 $

Unit Price

COLLAR

90387168D200 90387168D200

21,32 $

Unit Price

WASHER

90201163J600 90201163J600

3,36 $

Unit Price

COURROIE TRAPEZOIDALE

4KLE76410000 4KLE76410000

Not available

POULIE, PRIMAIRE FIXE

5WGE76110000 5WGE76110000

Not available

NUT

901701201100 901701201100

4,72 $

Unit Price

POUL SECONDAIRE FIXE COMP.

5WGE76600000 5WGE76600000

Not available

POULIE COULISSANTE SECONDAIRE

5WGE76700000 5WGE76700000

Not available

JOINT SPY

5WGE74653000 5WGE74653000

Not available

JOINT TORIQUE

5WGE74651000 5WGE74651000

Not available

GOUJON

5WGE76640000 5WGE76640000

Not available

RESSORT, SECONDAIRE

4KLE76830000 4KLE76830000

Not available

SIEGE, RESSORT SECONDAIRE

5WGE76840000 5WGE76840000

Not available

SUPPORT D'EMBRAYAGE

5WGE66200200 5WGE66200200

Not available

ECROU

4KLE76680000 4KLE76680000

Not available

JOINT

5WGE74652000 5WGE74652000

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.

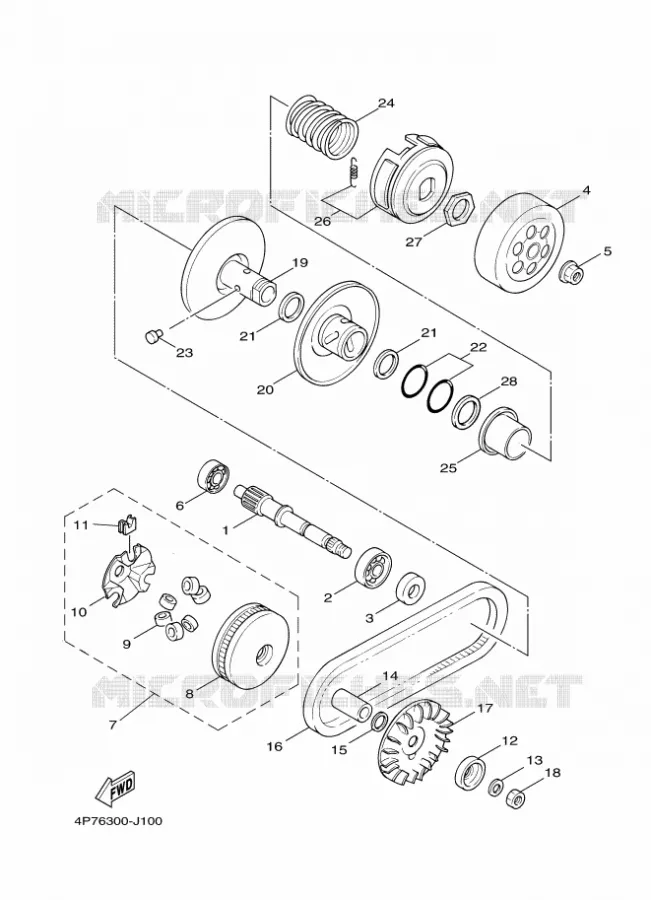

Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the STARTER CLUTCH of your Yamaha XC125E of 2011. Let us know if you have any questions.
