COVER - ENGINE 1

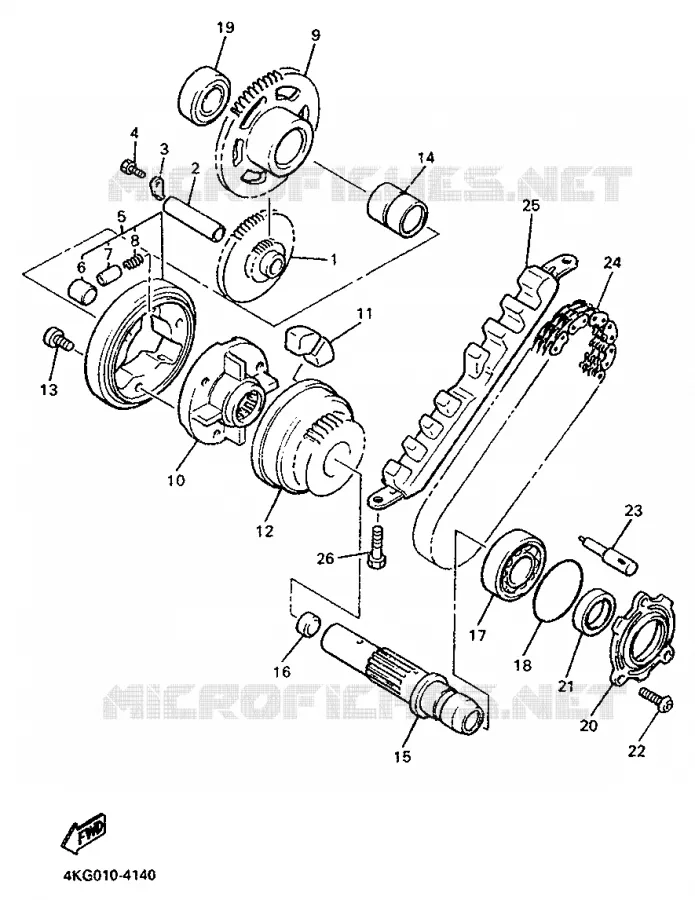

STARTER MOTOR FOR YAMAHA XJR 1996

STARTER CLUTCH

GEAR, IDLER 1

36Y155120100 36Y155120100

84,62 $

Unit Price

SHAFT 1

36Y155210100 36Y155210100

18,62 $

Unit Price

PLATE, STOPPER

2H7155310000 2H7155310000

3,15 $

Unit Price

BOLT, HEXAGON

970270601200

970170601200

2,48 $

Unit Price

STARTER CLUTCH, OUTER

36Y155800200 36Y155800200

287,06 $

Unit Price

PIN, DOWEL (1J7)

936151712500 936151712500

8,93 $

Unit Price

CAP, STARTER CLUTCH

1J7155830100 1J7155830100

18,58 $

Unit Price

SPRING, COMPRESSION (25G)

905010576400 905010576400

1,55 $

Unit Price

IDLER GEAR 2

36Y155170100 36Y155170100

136,59 $

Unit Price

PIGNON DE DEMARREUR

12R155240000 12R155240000

Not available

ABSORBER 1

4H7161550100 4H7161550100

5,56 $

Unit Price

COURONNE DE DEMARREUR

36Y155190000 36Y155190000

Not available

BOLT, SOCKET

913170801600 913170801600

5,61 $

Unit Price

COLLAR(36Y)

90387201L200 90387201L200

26,09 $

Unit Price

SHAFT 2

3CV155220000 3CV155220000

116,84 $

Unit Price

PLUG (26H)

903311503900 903311503900

7,72 $

Unit Price

BEARING (4G0)

933062054500 933062054500

77,40 $

Unit Price

O-RING (4G0)

932104744000 932104744000

4,72 $

Unit Price

BEARING (5Y1)

933060042600 933060042600

40,17 $

Unit Price

HOUSING, BEARING 1

36Y151630000 36Y151630000

36,73 $

Unit Price

OIL SEAL (4G0)

931022525300 931022525300

18,25 $

Unit Price

SCREW(1KT)

901490622800 901490622800

5,18 $

Unit Price

NOZZLE

36Y134540000 36Y134540000

23,52 $

Unit Price

CHAIN, PRIMARY

4FM114560000 4FM114560000

126,65 $

Unit Price

GUIDE, SUPERIEUR

36Y114740000 36Y114740000

Not available

BOLT, HEXAGON

970170601600 970170601600

2,42 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the STARTER MOTOR of your Yamaha XJR1200 of 1996. Let us know if you have any questions.
