FRONT MASTER CYLINDER 2

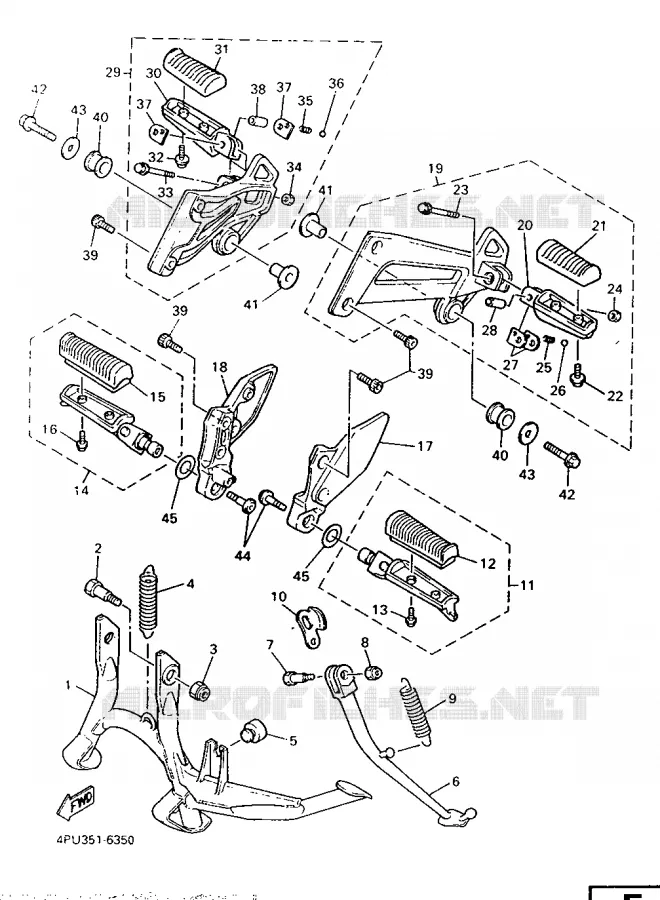

STAND / FOOTREST FOR YAMAHA XJR 1996

REAR BRAKE MASTER CYLINDER

BEQUILLE, CENTRALE

4KG271110100 4KG271110100

Not available

BOLT(1TX)

90109101E600 90109101E600

22,83 $

Unit Price

NUT, SELF LOCKING (3G1)

901851009100 901851009100

9,31 $

Unit Price

SPRING, TENSION (12R)

905064527800 905064527800

22,53 $

Unit Price

STOPPER, MAIN STAND

116271140000 116271140000

6,81 $

Unit Price

BEQUILLE, LATERALE

4KG273110100 4KG273110100

Not available

BOLT(2GH)

90109104E600 90109104E600

10,12 $

Unit Price

NUT, U

901851003700 901851003700

9,07 $

Unit Price

RESSORT, TENSION

905062646700 905062646700

Not available

LINK, SIDE STAND

4FM273150000 4FM273150000

12,23 $

Unit Price

REPOSE-PIEDS AV (G)

4KG274100100 4KG274100100

Not available

COVER, FOOTREST

4BP274130000 4BP274130000

37,09 $

Unit Price

SCREW, PAN HEAD

901570507900

985070501400

2,23 $

Unit Price

FRONT RIGHT FOOTREST

4KG274200100

4KG274200200

101,30 $

Unit Price

COVER, FOOTREST

4BP274130000 4BP274130000

37,09 $

Unit Price

SCREW, PAN HEAD

901570507900

985070501400

2,23 $

Unit Price

SUPPORT 2

4KG274420100 4KG274420100

Not available

SUPPORT 3

4KG274430100 4KG274430100

Not available

REPOSE-PIEDS AR 1

4KG274300300 4KG274300300

Not available

FOOTREST, REAR 1

4DN274310100 4DN274310100

35,28 $

Unit Price

COVER, FOOTREST

4BP274130000 4BP274130000

37,09 $

Unit Price

SCREW, PAN HEAD

901570507900

985070501400

2,23 $

Unit Price

BOLT, SOCKET

913170604500 913170604500

5,20 $

Unit Price

NUT, U FLANGE

956070620000

956040620000

4,30 $

Unit Price

SPRING, COMPRESSION (22N)

905011274300 905011274300

3,98 $

Unit Price

BALL

935010401100 935010401100

0,74 $

Unit Price

WASHER, SPECIAL

1HX274370000 1HX274370000

7,44 $

Unit Price

COLLAR (24R)

90387064H800 90387064H800

3,73 $

Unit Price

REPOSE-PIEDS AR (D)

4KG274400300 4KG274400300

Not available

FOOTREST, REAR 2

4DN274410100 4DN274410100

34,34 $

Unit Price

COVER, FOOTREST

4BP274130000 4BP274130000

37,09 $

Unit Price

SCREW, PAN HEAD

901570507900

985070501400

2,23 $

Unit Price

BOLT, SOCKET

913170604500 913170604500

5,20 $

Unit Price

NUT, U FLANGE

956070620000

956040620000

4,30 $

Unit Price

SPRING, COMPRESSION (22N)

905011274300 905011274300

3,98 $

Unit Price

BALL

935010401100 935010401100

0,74 $

Unit Price

WASHER, SPECIAL

1HX274370000 1HX274370000

7,44 $

Unit Price

COLLAR (24R)

90387064H800 90387064H800

3,73 $

Unit Price

BOLT(4KG)

90109081G000 90109081G000

4,43 $

Unit Price

DAMPER, FOOTREST 2

36Y274240000

36Y274240100

20,26 $

Unit Price

COLLAR (2H7)

903871063600 903871063600

16,15 $

Unit Price

BOLT(3BM)

90109100G000 90109100G000

6,02 $

Unit Price

WASHER, PLATE (2H7)

902011066900 902011066900

7,43 $

Unit Price

BOLT, HEX. SOCKET BUTTON

90109103A900

901111001700

5,28 $

Unit Price

WASHER, WAVE(46X)

902061708400 902061708400

9,24 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the STAND / FOOTREST of your Yamaha XJR1200 of 1996. Let us know if you have any questions.
