FRONT MASTER CYLINDER

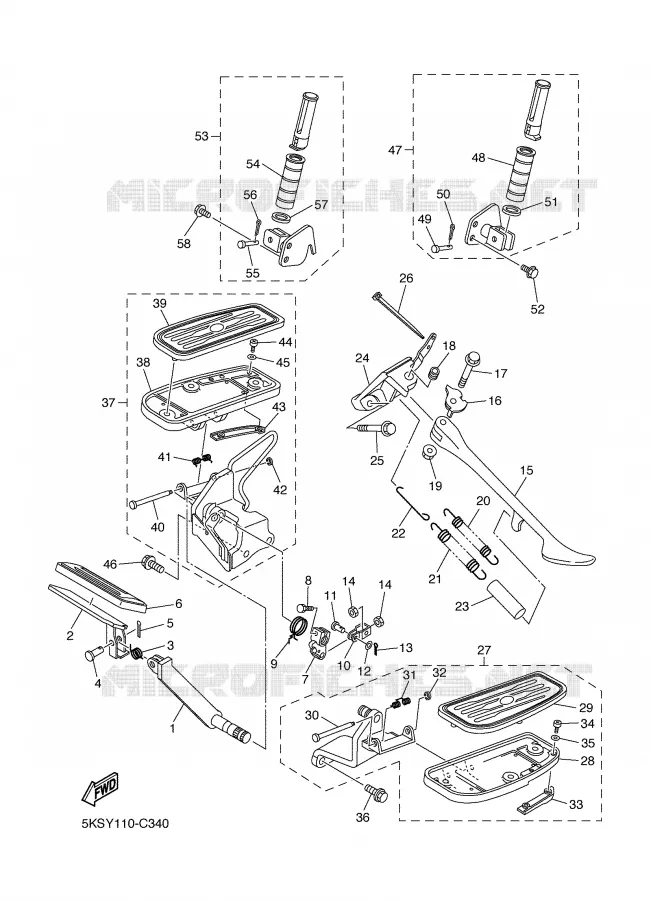

STAND / FOOTREST FOR YAMAHA DRAGSTAR 2006

REAR BRAKE MASTER CYLINDER

PEDAL, BRAKE

5KS272110000 5KS272110000

118,02 $

Unit Price

PEDAL, BRAKE

4NK272420000 4NK272420000

31,81 $

Unit Price

SPRING, TORSION

90508186B100

905081802300

2,46 $

Unit Price

PIN, COTTER (1W2)

917010602200 917010602200

2,22 $

Unit Price

COTTER PIN

914012001200

914012002000

3,75 $

Unit Price

CAP

4NK272850000 4NK272850000

23,59 $

Unit Price

LEVER

5EL272620000

5EL272620100

73,86 $

Unit Price

BOLT(3DM)

970040602000

970240602000

3,66 $

Unit Price

SPRING, RETURN

5EL272160000 5EL272160000

8,98 $

Unit Price

JOINT

4BP272220100

4BP272220200

20,46 $

Unit Price

PIN, CLEVIS(2YK)

902400812400 902400812400

12,96 $

Unit Price

WASHER, PLATE 1562722600

902010808300 902010808300

6,72 $

Unit Price

COTTER PIN

914012001200

914012002000

3,75 $

Unit Price

NUT, HEXAGON SMALL

953070870000

953170870000

1,76 $

Unit Price

STAND, SIDE

4KU273111300 4KU273111300

264,82 $

Unit Price

WASHER

5EL273220100 5EL273220100

23,82 $

Unit Price

BOLT, WASHER BASED

901051001200 901051001200

10,46 $

Unit Price

COLLAR(3XP)

903871003G00 903871003G00

19,13 $

Unit Price

NUT, SELF-LOCKING(JN5)

956071020000 956071020000

4,90 $

Unit Price

SPRING, TENSION(4KU)

905062349000 905062349000

14,34 $

Unit Price

SPRING, TENSION

905062950700 905062950700

15,89 $

Unit Price

LINK, SIDE STAND

5EL273150000 5EL273150000

6,87 $

Unit Price

HOSE (L60)

904451664100 904451664100

2,26 $

Unit Price

SIDE STAND BRACKET

5EL273210000 5EL273210000

Not available

BOLT, FLANGE(4GB)

958171004500 958171004500

7,14 $

Unit Price

BAND

1UA825910000 1UA825910000

3,11 $

Unit Price

FRONT FOOTREST ASSY (LEFT)

5KS274101000 5KS274101000

375,40 $

Unit Price

REPOSE-PIEDS AV (G)

5KS274102000 5KS274102000

Not available

FOOTREST

4NK274511000 4NK274511000

119,50 $

Unit Price

COVER, FOOTREST

4XY274130100 4XY274130100

86,74 $

Unit Price

SHAFT

4NK274270000

3D8274270000

8,09 $

Unit Price

SPRING, RETURN

4NK274260000 4NK274260000

10,54 $

Unit Price

CIRCLIP(53L)

990010660000 990010660000

1,68 $

Unit Price

MOLE 1

4WM274960000 4WM274960000

75,47 $

Unit Price

SCREW, PAN HEAD(3LA)

901570509500

985170501000

1,49 $

Unit Price

WASHER, PLAIN LARGE

929070520000 929070520000

2,29 $

Unit Price

BOLT, WASHER BASED

90105102A300 90105102A300

9,07 $

Unit Price

FRONT FOOTREST ASSY (RIGHT)

5KS274201000 5KS274201000

375,40 $

Unit Price

REPOSE-PIEDS AV (D)

5KS274202000 5KS274202000

Not available

FOOTREST

4NK274611000 4NK274611000

105,94 $

Unit Price

COVER, FOOTREST

4XY274230100 4XY274230100

86,74 $

Unit Price

SHAFT

4NK274270000

3D8274270000

8,09 $

Unit Price

SPRING, RETURN

4NK274260000 4NK274260000

10,54 $

Unit Price

CIRCLIP(53L)

990010660000 990010660000

1,68 $

Unit Price

MOLE 2

4WM274970000 4WM274970000

79,02 $

Unit Price

SCREW, PAN HEAD(3LA)

901570509500

985170501000

1,49 $

Unit Price

WASHER, PLAIN LARGE

929070520000 929070520000

2,29 $

Unit Price

BOLT, WASHER BASED

90105102A300 90105102A300

9,07 $

Unit Price

REAR FOOTREST ASSY 1

5EL274300000 5EL274300000

188,85 $

Unit Price

COVER, REAR FOOTREST

4WM274330000 4WM274330000

23,94 $

Unit Price

PIN, CLEVIS (1Y8)

917010603200 917010603200

6,72 $

Unit Price

COTTER PIN

914012001200

914012002000

3,75 $

Unit Price

WASHER, PLATE(8CJ)

90201210U000 90201210U000

7,21 $

Unit Price

BOLT, WASHER BASED

90105082A500 90105082A500

3,90 $

Unit Price

REAR FOOTREST ASSY 2

5EL274400000 5EL274400000

188,85 $

Unit Price

COVER, REAR FOOTREST

4WM274330000 4WM274330000

23,94 $

Unit Price

PIN, CLEVIS (1Y8)

917010603200 917010603200

6,72 $

Unit Price

COTTER PIN

914012001200

914012002000

3,75 $

Unit Price

WASHER, PLATE(8CJ)

90201210U000 90201210U000

7,21 $

Unit Price

BOLT, WASHER BASED

90105082A500 90105082A500

3,90 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the STAND / FOOTREST of your Yamaha DRAGSTAR 1100 CLASSIC of 2006. Let us know if you have any questions.
