ELECTRICAL 1

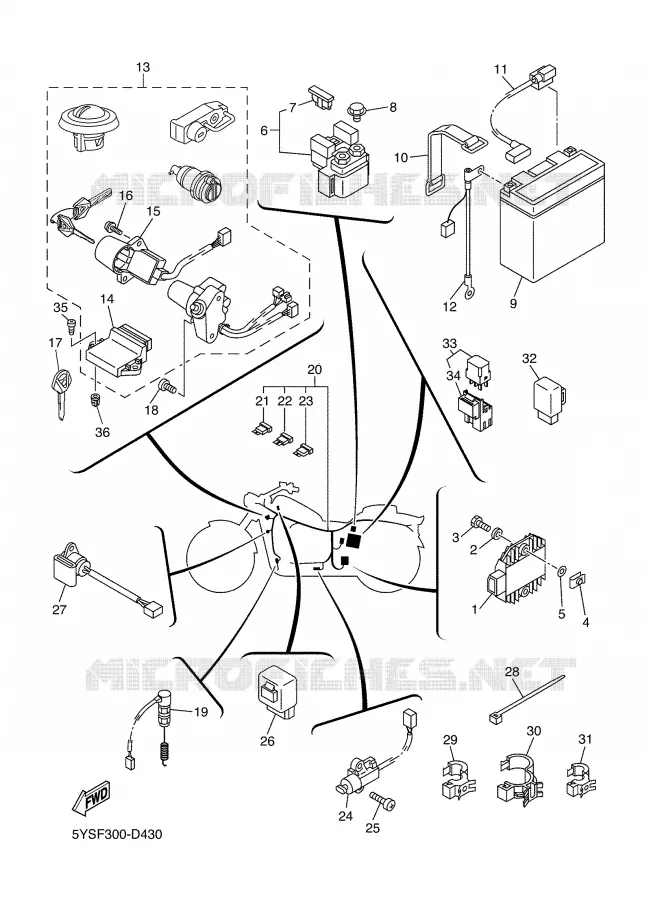

ELECTRICAL 2 FOR YAMAHA DRAGSTAR 2006

RECTIFIER & REGULATOR ASSY

4XY819600000 4XY819600000

252,56 $

Unit Price

WASHER, PLATE (8H9)

902010672700 902010672700

5,24 $

Unit Price

BOLT, HEXAGON

970070602500

970170602500

2,42 $

Unit Price

NUT, SPRING(4ES)

901830605300

901830606900

3,20 $

Unit Price

WASHER, PLATE(3MB)

902020518700 902020518700

1,68 $

Unit Price

STARTER RELAY ASSY (RC19-003)

4DN819401200 4DN819401200

92,89 $

Unit Price

FUSE (12V 30A)

1AE821510000 1AE821510000

3,51 $

Unit Price

BOLT, SMALL FLANGE

950270600800 950270600800

2,10 $

Unit Price

BAT YT14B-BS (PT14B-4) YU WA

5EA821001100

YT14BBS00000

244,23 $

Unit Price

BAND, BATTERY

118821310000 118821310000

19,05 $

Unit Price

WIRE, PLUS LEAD

5EL821150000 5EL821150000

70,47 $

Unit Price

WIRE, MINUS LEAD

5EL821160000 5EL821160000

44,98 $

Unit Price

KIT DE IMMOBILISATEUR

5KSW82500100 5KSW82500100

Not available

.BLOC D ALLUMAGE BLOC D ALLUMAGE

5KS823050000 5KS823050000

Not available

.IMMOBILISATEUR IMMOBILISATEUR

5KS8255P0000 5KS8255P0000

Not available

SCREW

901590518300

5VU821130100

2,79 $

Unit Price

BLANK KEY

5SL825110800 5SL825110800

36,29 $

Unit Price

SCREW

901490800200 901490800200

7,07 $

Unit Price

STOP SWITCH ASSY

5EL825300000

5EL825300100

62,27 $

Unit Price

FAISCEAU DE FILS COMPLET

5KS825900000 5KS825900000

Not available

FUSE (10A)

5JJ821513000

67F821514000

4,87 $

Unit Price

FUSE (15A)

5JJ821511000

67F821515000

4,75 $

Unit Price

FUSE (5A)

5JJ821519000

67F821512000

10,74 $

Unit Price

SWITCH, SIDE STAND

5RT825664000 5RT825664000

107,15 $

Unit Price

SCREW, PAN HEAD

901570507900

985070501400

2,23 $

Unit Price

RELAY ASSY

5KS819500000

5KS819500200

100,36 $

Unit Price

THERMO SWITCH ASSY

5FU825605000 5FU825605000

39,90 $

Unit Price

BAND

1UA825910000 1UA825910000

3,11 $

Unit Price

CLAMP(4GY)

904642019100 904642019100

4,42 $

Unit Price

CLAMP(4KM)

904642521700 904642521700

5,40 $

Unit Price

CLAMP(4HM)

904641519200 904641519200

5,60 $

Unit Price

RELAY ASSY

4XV8195A0000 4XV8195A0000

155,53 $

Unit Price

RELAY ASSY (5EA-02)

5EA819502000 5EA819502000

39,30 $

Unit Price

HOLDER, RELAY

5EA819520000 5EA819520000

10,65 $

Unit Price

SCREW, TRUSS TAP.

977076001600 977076001600

1,76 $

Unit Price

PLUG(4BP)

903380822600 903380822600

2,64 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the ELECTRICAL 2 of your Yamaha DRAGSTAR 1100 CLASSIC of 2006. Let us know if you have any questions.
