FRONT MASTER CYLINDER

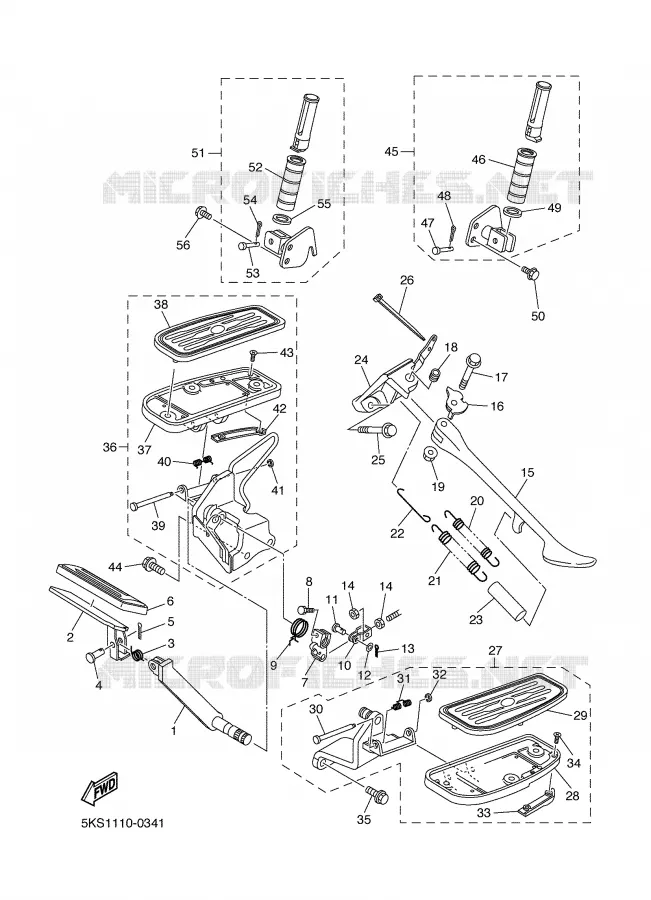

STAND / FOOTREST FOR YAMAHA DRAGSTAR 2003

REAR BRAKE MASTER CYLINDER

PEDAL, BRAKE

5KS272110000 5KS272110000

118,02 $

Unit Price

PEDAL, BRAKE

4NK272420000 4NK272420000

31,81 $

Unit Price

SPRING, TORSION

90508186B100

905081802300

2,46 $

Unit Price

PIN, COTTER (1W2)

917010602200 917010602200

2,22 $

Unit Price

COTTER PIN

914012001200

914012002000

3,75 $

Unit Price

CAP

4NK272850000 4NK272850000

23,59 $

Unit Price

LEVER

5EL272620000

5EL272620100

73,86 $

Unit Price

BOLT(3DM)

970040602000

970240602000

3,66 $

Unit Price

SPRING, RETURN

5EL272160000 5EL272160000

8,98 $

Unit Price

JOINT

4BP272220100

4BP272220200

20,46 $

Unit Price

PIN, CLEVIS(2YK)

902400812400 902400812400

12,96 $

Unit Price

WASHER, PLATE 1562722600

902010808300 902010808300

6,72 $

Unit Price

COTTER PIN

914012001200

914012002000

3,75 $

Unit Price

NUT, HEXAGON SMALL

953070870000

953170870000

1,76 $

Unit Price

STAND, SIDE

4KU273111300 4KU273111300

264,82 $

Unit Price

WASHER

5EL273220100 5EL273220100

23,82 $

Unit Price

BOLT, WASHER BASED

901051001200 901051001200

10,46 $

Unit Price

COLLAR(3XP)

903871003G00 903871003G00

19,13 $

Unit Price

NUT, SELF-LOCKING(JN5)

956071020000 956071020000

4,90 $

Unit Price

SPRING, TENSION(4KU)

905062349000 905062349000

14,34 $

Unit Price

SPRING, TENSION

905062950700 905062950700

15,89 $

Unit Price

LINK, SIDE STAND

5EL273150000 5EL273150000

6,87 $

Unit Price

HOSE (L60)

904451664100 904451664100

2,26 $

Unit Price

SIDE STAND BRACKET

5EL273210000 5EL273210000

Not available

BOLT, FLANGE(4GB)

958171004500 958171004500

7,14 $

Unit Price

BAND

1UA825910000 1UA825910000

3,11 $

Unit Price

FRONT FOOTREST ASSY (LEFT)

5KS274100000

5KS274101000

375,40 $

Unit Price

.REPOSE-PIEDS REPOSE-PIEDS

4NK274510000 4NK274510000

Not available

COVER, FOOTREST

4XY274130000

4XY274130100

86,74 $

Unit Price

SHAFT

4NK274270000

3D8274270000

8,09 $

Unit Price

SPRING, RETURN

4NK274260000 4NK274260000

10,54 $

Unit Price

CIRCLIP(53L)

990010660000 990010660000

1,68 $

Unit Price

MOLE 1

4WM274960000 4WM274960000

75,47 $

Unit Price

SCREW, FLAT

901520500800

987070501000

0,68 $

Unit Price

BOLT, WASHER BASED

90105102A300 90105102A300

9,07 $

Unit Price

FRONT FOOTREST ASSY (RIGHT)

5KS274200000

5KS274201000

375,40 $

Unit Price

.REPOSE-PIEDS REPOSE-PIEDS

4NK274610000 4NK274610000

Not available

COVER, FOOTREST

4XY274230000

4XY274230100

86,74 $

Unit Price

SHAFT

4NK274270000

3D8274270000

8,09 $

Unit Price

SPRING, RETURN

4NK274260000 4NK274260000

10,54 $

Unit Price

CIRCLIP(53L)

990010660000 990010660000

1,68 $

Unit Price

MOLE 2

4WM274970000 4WM274970000

79,02 $

Unit Price

SCREW, FLAT

901520500800

987070501000

0,68 $

Unit Price

BOLT, WASHER BASED

90105102A300 90105102A300

9,07 $

Unit Price

REAR FOOTREST ASSY 1

5EL274300000 5EL274300000

188,85 $

Unit Price

COVER, REAR FOOTREST

4WM274330000 4WM274330000

23,94 $

Unit Price

PIN, CLEVIS (1Y8)

917010603200 917010603200

6,72 $

Unit Price

COTTER PIN

914012001200

914012002000

3,75 $

Unit Price

WASHER, PLATE(8CJ)

90201210U000 90201210U000

7,21 $

Unit Price

BOLT, WASHER BASED

90105082A500 90105082A500

3,90 $

Unit Price

REAR FOOTREST ASSY 2

5EL274400000 5EL274400000

188,85 $

Unit Price

COVER, REAR FOOTREST

4WM274330000 4WM274330000

23,94 $

Unit Price

PIN, CLEVIS (1Y8)

917010603200 917010603200

6,72 $

Unit Price

COTTER PIN

914012001200

914012002000

3,75 $

Unit Price

WASHER, PLATE(8CJ)

90201210U000 90201210U000

7,21 $

Unit Price

BOLT, WASHER BASED

90105082A500 90105082A500

3,90 $

Unit Price
