ELECTRICAL 1

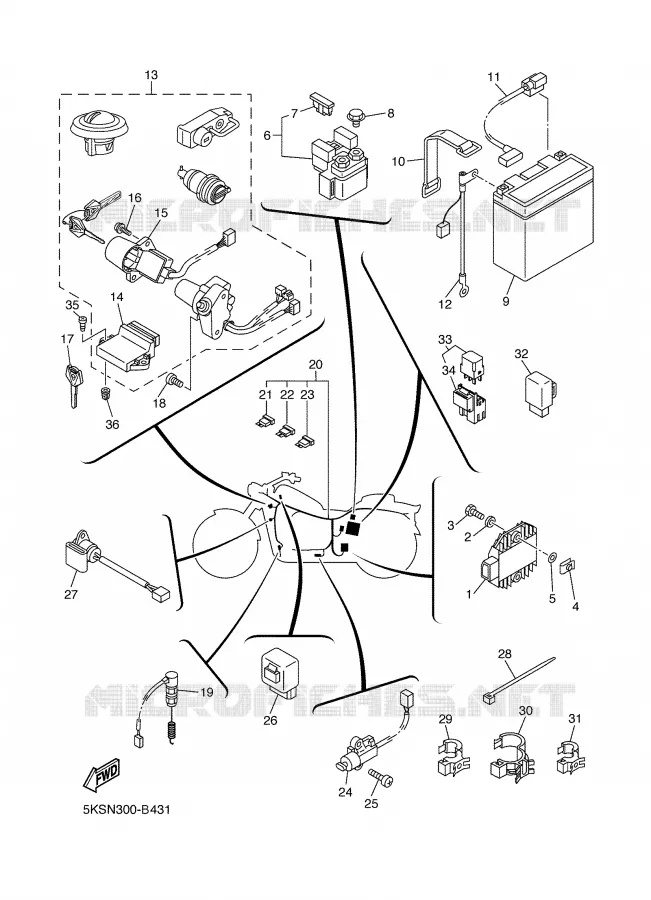

ELECTRICAL 2 FOR YAMAHA DRAGSTAR 2003

RECTIFIER & REGULATOR ASSY

4XY819600000 4XY819600000

252,56 $

Unit Price

WASHER, PLATE (8H9)

902010672700 902010672700

5,24 $

Unit Price

BOLT, HEXAGON

970070602500

970170602500

2,42 $

Unit Price

NUT, SPRING(4ES)

901830605300

901830606900

3,20 $

Unit Price

WASHER, PLATE(3MB)

902020518700 902020518700

1,68 $

Unit Price

STARTER RELAY ASSY (RC19-003)

4DN819400000

4DN819401200

92,89 $

Unit Price

FUSE (12V 30A)

1AE821510000 1AE821510000

3,51 $

Unit Price

BOLT, SMALL FLANGE

950270600800 950270600800

2,10 $

Unit Price

BAT YT14B-BS (PT14B-4) YU WA

5EA821001100

YT14BBS00000

244,23 $

Unit Price

BAND, BATTERY

118821310000 118821310000

19,05 $

Unit Price

WIRE, PLUS LEAD

5EL821150000 5EL821150000

70,47 $

Unit Price

WIRE, MINUS LEAD

5EL821160000 5EL821160000

44,98 $

Unit Price

KIT DE IMMOBILISATEUR

5KSW82500000 5KSW82500000

Not available

.BLOC D ALLUMAGE BLOC D ALLUMAGE

5KS823050000 5KS823050000

Not available

.IMMOBILISATEUR IMMOBILISATEUR

5KS8255P0000 5KS8255P0000

Not available

SCREW

901590518300

5VU821130100

2,79 $

Unit Price

BLANK KEY

5SL825110900

5SL825110800

36,29 $

Unit Price

SCREW

901490800200 901490800200

7,07 $

Unit Price

STOP SWITCH ASSY

5EL825300000

5EL825300100

62,27 $

Unit Price

FAISCEAU DE FILS COMPLET

5KS825900000 5KS825900000

Not available

FUSE (10A)

5JJ821513000

67F821514000

4,87 $

Unit Price

FUSE (15A)

5JJ821511000

67F821515000

4,75 $

Unit Price

FUSE (5A)

5JJ821519000

67F821512000

10,74 $

Unit Price

SWITCH, SIDE STAND

5RT825664000 5RT825664000

107,15 $

Unit Price

SCREW, PAN HEAD

901570507900

985070501400

2,23 $

Unit Price

RELAY ASSY

5KS819500000

5KS819500200

100,36 $

Unit Price

THERMO SWITCH ASSY

5FU825605000 5FU825605000

39,90 $

Unit Price

BAND

1UA825910000 1UA825910000

3,11 $

Unit Price

CLAMP(4GY)

904642019100 904642019100

4,42 $

Unit Price

CLAMP(4KM)

904642521700 904642521700

5,40 $

Unit Price

CLAMP(4HM)

904641519200 904641519200

5,60 $

Unit Price

RELAY ASSY

4XV8195A0000 4XV8195A0000

155,53 $

Unit Price

RELAY ASSY (5EA-02)

5EA819502000 5EA819502000

39,30 $

Unit Price

HOLDER, RELAY

5EA819520000 5EA819520000

10,65 $

Unit Price

SCREW, TRUSS TAP.

977076001600 977076001600

1,76 $

Unit Price

PLUG(4BP)

903380822600 903380822600

2,64 $

Unit Price
