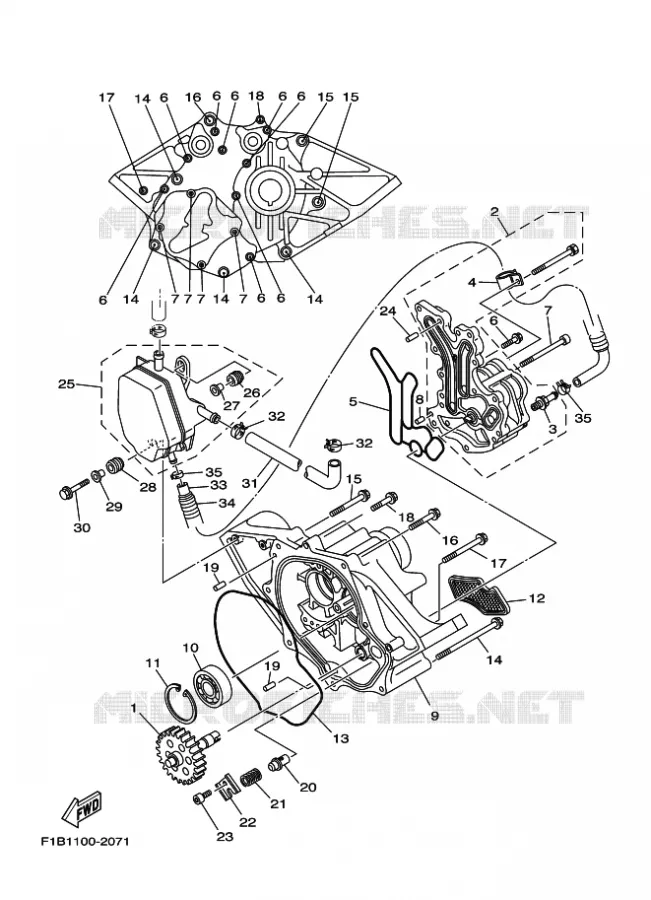

Parts diagram

FUEL PUMP

OIL PUMP FOR YAMAHA FZ 2004

OIL COOLER

Item numbers

DRIVEN GEAR ASSY

60E133600000 60E133600000

348,26 $

Unit Price

POMPE A HUILE COMPLETE

60E133000100 60E133000100

Not available

BOULON, RENIFLARD

60E131850000 60E131850000

Not available

CLAMP

904620801900 904620801900

13,46 $

Unit Price

GASKET

60E135630000 60E135630000

36,79 $

Unit Price

BOLT, WITH WASHER(61B)

975130652500 975130652500

2,76 $

Unit Price

BOULON, AVEC RONDELLE

901190806700 901190806700

Not available

PIN, DOWEL (614)

936061201900 936061201900

5,20 $

Unit Price

PUMP GEAR COVER

60E133271094

Not available

BEARING

933063044100 933063044100

49,22 $

Unit Price

CIRCLIP(26H)

990095250000 990095250000

15,10 $

Unit Price

STRAINER, OIL

60E134110100 60E134110100

66,35 $

Unit Price

O-RING

932119500100 932119500100

31,29 $

Unit Price

BOLT, WITH WASHER

901190804500 901190804500

11,69 $

Unit Price

BOLT, WITH WASHER

901190803400 901190803400

11,91 $

Unit Price

BOLT, WITH WASHER(GJ3)

901190804300 901190804300

5,53 $

Unit Price

BOLT, WITH WASHER

975130655500 975130655500

4,16 $

Unit Price

BOLT, WITH WASHER (62X)

975130653500 975130653500

3,47 $

Unit Price

PIN, DOWEL(6T4)

9360816M1600 9360816M1600

3,91 $

Unit Price

PLUNGER, RELIEF

60E134830000 60E134830000

Not available

SPRING, RELIEF

4WM134840000 4WM134840000

4,85 $

Unit Price

RONDELLE, A GRIFFES

902140602900 902140602900

Not available

BOLT, SOCKET

913170601600 913170601600

3,51 $

Unit Price

PIN, DOWEL B (676)

9360625M0000 9360625M0000

4,23 $

Unit Price

SEPARATEUR, HUILE

60E111640000 60E111640000

Not available

DAMPER, IGNITION C

6A0823170000

6A0823170100

3,44 $

Unit Price

COLLAR

624425420000

903870611900

6,87 $

Unit Price

DAMPER, IGNITION C

6A0823170000

6A0823170100

3,44 $

Unit Price

COLLAR

624425420000

903870611900

6,87 $

Unit Price

BOLT, WITH WASHER

9011906M6500

901190629400

6,14 $

Unit Price

PIPE, BREATHER 3

60E111260100 60E111260100

44,51 $

Unit Price

CLIP

90467170A000 90467170A000

7,36 $

Unit Price

PIPE, BREATHER 4

60E111250200 60E111250200

23,80 $

Unit Price

HOSE

9044617M7500 9044617M7500

9,60 $

Unit Price

CLIP

90467110A100 90467110A100

3,49 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the OIL PUMP of your Yamaha ENG FOR FZ1000A of 2004. Let us know if you have any questions.
