OIL PUMP

OIL COOLER FOR YAMAHA FZ 2004

EXHAUST 1

Item numbers

CONNECTOR

60E134460000 60E134460000

27,27 $

Unit Price

O-RING (1L9)

932101832200 932101832200

6,88 $

Unit Price

BOITIER, RADIATEUR A HUILE

60E134620094 60E134620094

Not available

BOLT, WITH WASHER

9011908M6700

9011908M9900

5,92 $

Unit Price

PLATE, BAFFLE

60E133170000 60E133170000

41,99 $

Unit Price

BOLT, SOCKET

913170501400 913170501400

1,77 $

Unit Price

STRAINER 2

60E134210000 60E134210000

34,78 $

Unit Price

BOLT, SOCKET

913170601400 913170601400

4,22 $

Unit Price

CLAMP(62E)

9046512M5300 9046512M5300

9,66 $

Unit Price

COLLAR(6H4)

9038706M0500 9038706M0500

9,23 $

Unit Price

BOLT, HEXAGON W-W DEEP RECESS

975950652000

97E950652000

2,03 $

Unit Price

ANODE

6E5113250000 6E5113250000

10,27 $

Unit Price

SCREW, FLAT HEAD(GA5)

987800401500

987800401400

2,52 $

Unit Price

OIL COOLER COVER

60E134631094 60E134631094

Not available

PLAQUE, RENIFLARD

60E111651000 60E111651000

Not available

PLAQUE, RENIFLARD 2

60E111451000 60E111451000

Not available

BOLT, SOCKET

913170503500 913170503500

1,58 $

Unit Price

GASKET

60E134770000 60E134770000

38,76 $

Unit Price

GASKET

60E134750000 60E134750000

40,25 $

Unit Price

BOLT, FLANGE

901050603600 901050603600

2,22 $

Unit Price

PLUG, OIL LEVEL

60E153620000

6BU15362A000

62,25 $

Unit Price

O-RING

60E134730000 60E134730000

16,02 $

Unit Price

HANGER, ENGINE

68F111190000

63P111191000

24,23 $

Unit Price

BOLT, WITH WASHER

9011906MA200 9011906MA200

2,61 $

Unit Price

COVER, OIL COOLER

60E134430094

6D3134430094

185,34 $

Unit Price

GASKET

60E134760000

60E134761000

29,88 $

Unit Price

BOLT (689)

9010506M0700 9010506M0700

5,09 $

Unit Price

STAY

60E131510094 60E131510094

Not available

BOLT, WITH WASHER

9011910M0200

9011910M2300

16,52 $

Unit Price

BOLT, STUD

901161001600 901161001600

10,32 $

Unit Price

NUT, CROWN

901761000100 901761000100

6,61 $

Unit Price

PIPE, BREATHER 1

60E111660100 60E111660100

40,71 $

Unit Price

CLIP

90467170A000 90467170A000

7,36 $

Unit Price

HOSE, WITH SPRING

904471900500 904471900500

9,66 $

Unit Price

PIPE, BREATHER 2

60E111670100 60E111670100

42,93 $

Unit Price

CLIP

90467170A000 90467170A000

7,36 $

Unit Price

HOSE, WITH SPRING

904471900400 904471900400

7,12 $

Unit Price

GASKET

60E135670000 60E135670000

2,93 $

Unit Price

COVER , 2

60E138820000 60E138820000

20,05 $

Unit Price

VIS HEXAGONAL AVC RONDELLE

975800651600 975800651600

Not available

BOLT, WITH WASHER(4NM)

975070651200 975070651200

0,43 $

Unit Price

BRACKET 1

60E513410094 60E513410094

37,88 $

Unit Price

WASHER, PLAIN (646)

929950660000

929900660000

2,09 $

Unit Price

BOLT, HEX. SOCKET HEAD

913800602000 913800602000

3,69 $

Unit Price

GROMMET(6R7)

9048006M4600 9048006M4600

9,33 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.

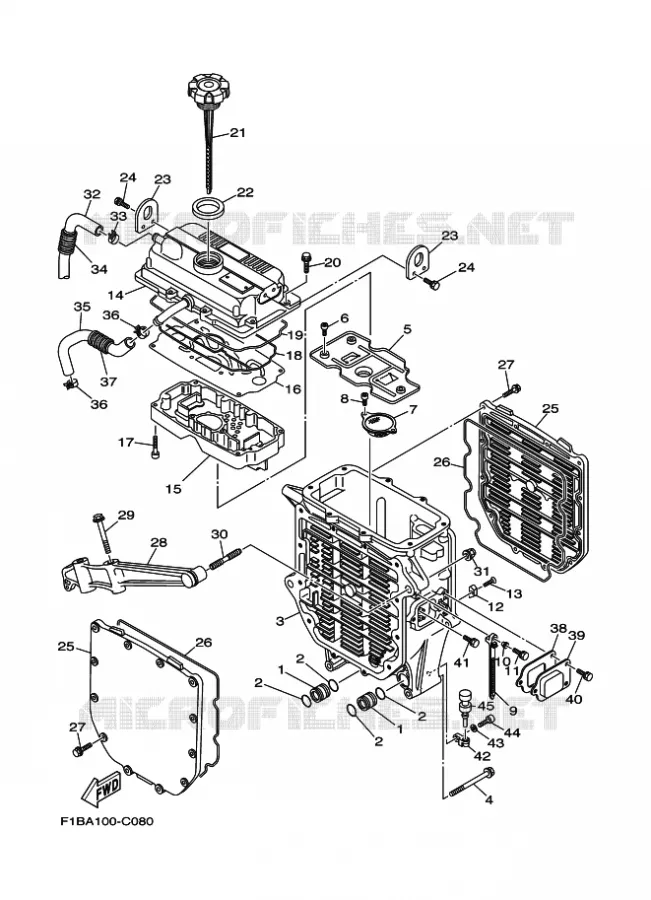

Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the OIL COOLER of your Yamaha ENG FOR FZ1000A of 2004. Let us know if you have any questions.
