STEERING

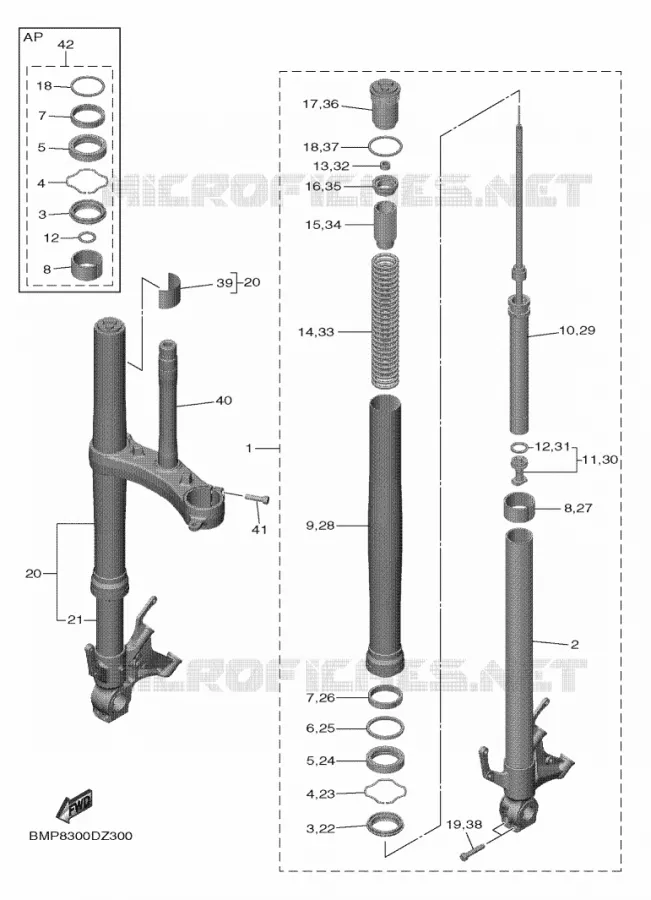

FRONT FORK FOR YAMAHA R1 2024

FUEL TANK

Item numbers

FRONT FORK ASSY (L

B3L231020100

Not available

INNER TUBE COMP.1

B3L231100100 B3L231100100

396,22 $

Unit Price

SEAL, DUST

4PU231440000 4PU231440000

24,78 $

Unit Price

RING, SNAP

4V423153L000 4V423153L000

8,54 $

Unit Price

OIL SEAL

4PU231450100 4PU231450100

19,09 $

Unit Price

WASHER, OIL SEAL

5PW231460000 5PW231460000

19,77 $

Unit Price

METAL, SLIDE 1

2CR231250000 2CR231250000

16,52 $

Unit Price

PISTON, FRONT FORK

2CR231710000 2CR231710000

50,48 $

Unit Price

TUBE, OUTER

2CR231361000 2CR231361000

565,09 $

Unit Price

CYLINDER COMP., FRONT FORK

B3L231700000 B3L231700000

673,23 $

Unit Price

VALVE COMP.

B3L2316A0000 B3L2316A0000

425,51 $

Unit Price

O-RING

B3L231470000 B3L231470000

3,29 $

Unit Price

NUT

3LC233570000 3LC233570000

3,75 $

Unit Price

SPRING, FRONT FORK

BN6231410000 BN6231410000

44,24 $

Unit Price

SPACER

2CR231180000 2CR231180000

24,29 $

Unit Price

GUIDE, SPRING

2CR231170000 2CR231170000

19,97 $

Unit Price

BOLT, CAP

2CR231111000 2CR231111000

570,89 $

Unit Price

O-RING

39P231470000 39P231470000

10,54 $

Unit Price

BOLT, SOCKET

913140804000 913140804000

8,56 $

Unit Price

FRONT FORK ASSY (R

B3L231030100

Not available

INNER TUBE COMP.2

B3L231200100 B3L231200100

484,26 $

Unit Price

SEAL, DUST

4PU231440000 4PU231440000

24,78 $

Unit Price

RING, SNAP

4V423153L000 4V423153L000

8,54 $

Unit Price

OIL SEAL

4PU231450100 4PU231450100

19,09 $

Unit Price

WASHER, OIL SEAL

5PW231460000 5PW231460000

19,77 $

Unit Price

METAL, SLIDE 1

2CR231250000 2CR231250000

16,52 $

Unit Price

PISTON, FRONT FORK

2CR231710000 2CR231710000

50,48 $

Unit Price

TUBE, OUTER

2CR231361000 2CR231361000

565,09 $

Unit Price

CYLINDER COMP., FRONT FORK

B3L231700000 B3L231700000

673,23 $

Unit Price

VALVE COMP.

B3L2316A0000 B3L2316A0000

425,51 $

Unit Price

O-RING

B3L231470000 B3L231470000

3,29 $

Unit Price

NUT

3LC233570000 3LC233570000

3,75 $

Unit Price

SPRING, FRONT FORK

BN6231410000 BN6231410000

44,24 $

Unit Price

SPACER

2CR231180000 2CR231180000

24,29 $

Unit Price

GUIDE, SPRING

2CR231170000 2CR231170000

19,97 $

Unit Price

BOLT, CAP

2CR231111000 2CR231111000

570,89 $

Unit Price

O-RING

39P231470000 39P231470000

10,54 $

Unit Price

BOLT, SOCKET

913140804000 913140804000

8,56 $

Unit Price

PROTECTOR

5PW234720000 5PW234720000

16,73 $

Unit Price

UNDER BRACKET COMP.

B3L233400000 B3L233400000

939,02 $

Unit Price

BOLT, SOCKET

913140803000 913140803000

5,25 $

Unit Price

FORK SEAL KIT (ONE FORK)

B3LW003B0000 B3LW003B0000

49,19 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FRONT FORK of your Yamaha R1 of 2024. Let us know if you have any questions.
