HANDLE SWITCH / LEVER

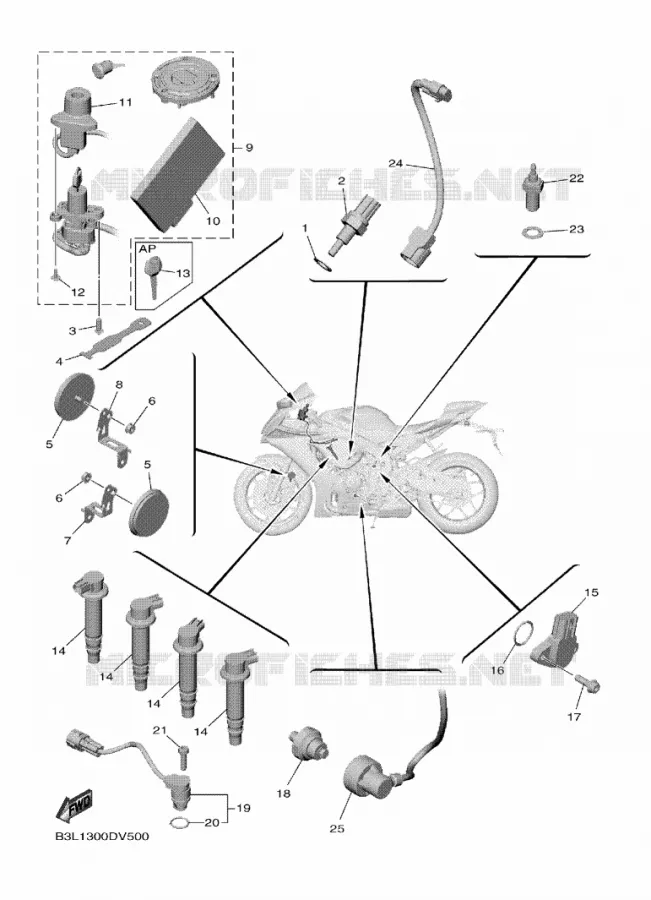

ELECTRICAL 1 FOR YAMAHA R1 2024

ELECTRICAL 2

Item numbers

GASKET

904301000400 904301000400

3,77 $

Unit Price

THERMO SENDER UNIT

4P9835910000 4P9835910000

38,29 $

Unit Price

BOLT

901090819500

901090819600

6,37 $

Unit Price

PROTECTOR

B3L2376R0000 B3L2376R0000

4,30 $

Unit Price

REFLECTOR, FRONT 1

4AG851110000 4AG851110000

15,80 $

Unit Price

NUT, FLANGE(7NB)

957020650000

957800650000

3,18 $

Unit Price

BRACKET, REFLECTOR

2CR851120000 2CR851120000

50,62 $

Unit Price

BRACKET, REFLECTOR

2CR851220000 2CR851220000

50,62 $

Unit Price

MAIN SW. IMMOBILIZER KIT

B3LW82500200 B3LW82500200

Not available

. ENGINE CONTROL UNIT ASSY

B3L8591A5000 B3L8591A5000

Not available

IMMOBILIZER. UNIT COMP.

B3L8255P0100

B3L8255P0200

561,05 $

Unit Price

SCREW

5SL821130100 5SL821130100

2,52 $

Unit Price

BLANK KEY

5SL825110800 5SL825110800

36,29 $

Unit Price

IGNITION COIL ASSY

2CR823100000 2CR823100000

209,55 $

Unit Price

SENSOR, GEAR POSITION

2CR858991000 2CR858991000

124,27 $

Unit Price

O-RING

932101700800 932101700800

2,89 $

Unit Price

BOLT, HEXAGON SOCKET HEAD

901100506700

901100503800

1,67 $

Unit Price

OIL PRESSURE SWITCH ASSY

1WS825040000

1WS825040100

97,97 $

Unit Price

SENSOR, CAM POSITION

B3L858960100 B3L858960100

257,09 $

Unit Price

O-RING

4D9811680000 4D9811680000

7,58 $

Unit Price

BOLT

901100617500

913120602000

4,00 $

Unit Price

NEUTRAL SWITCH ASSY

3GB825400100 3GB825400100

28,15 $

Unit Price

GASKET (1KH, 1.0T)

904301014800 904301014800

6,35 $

Unit Price

WIRE, SUB LEAD

1RC823090100 1RC823090100

23,87 $

Unit Price

WIRE, SUB LEAD

B3L825091100 B3L825091100

16,89 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the ELECTRICAL 1 of your Yamaha R1 of 2024. Let us know if you have any questions.
