STEERING

FRONT FORK FOR YAMAHA NEO'S 2022

SEAT

Item numbers

FRONT FORK ASSY (L

BFMF31020000 BFMF31020000

Not available

TUBE, OUTER (L.H)

BFMF31260000 BFMF31260000

Not available

OIL SEAL

4XCF31450000 4XCF31450000

34,33 $

Unit Price

RING, SNAP

5P0F31560000 5P0F31560000

15,59 $

Unit Price

INNER TUBE COMP.1

BW5F31100000 BW5F31100000

Not available

CYLINDER COMP., FR

B8AF31700000 B8AF31700000

Not available

RING, PISTON

B7JF31570000 B7JF31570000

5,61 $

Unit Price

SPRING, SUB

31DF31520000 31DF31520000

10,59 $

Unit Price

GASKET

509F3158L000

50923158L000

10,27 $

Unit Price

BOLT, HEXAGON SOCKET HEAD

278F31815000

3D8231810000

8,83 $

Unit Price

SEAL, DUST

4XCF31440000 4XCF31440000

39,19 $

Unit Price

SPRING, FRONT FORK

B8AF31410000 B8AF31410000

Not available

BOLT, CAP

1FCF31111000 1FCF31111000

12,73 $

Unit Price

O-RING

2JGF31470000 2JGF31470000

5,32 $

Unit Price

RING, SNAP

31BF31530000 31BF31530000

0,68 $

Unit Price

FRONT FORK ASSY (R

BFMF31030000 BFMF31030000

Not available

TUBE, OUTER 2

BFMF31360000 BFMF31360000

Not available

OIL SEAL

4XCF31450000 4XCF31450000

34,33 $

Unit Price

RING, SNAP

5P0F31560000 5P0F31560000

15,59 $

Unit Price

INNER TUBE COMP.1

BW5F31100000 BW5F31100000

Not available

CYLINDER COMP., FR

B8AF31700000 B8AF31700000

Not available

RING, PISTON

B7JF31570000 B7JF31570000

5,61 $

Unit Price

SPRING, SUB

31DF31520000 31DF31520000

10,59 $

Unit Price

GASKET

509F3158L000

50923158L000

10,27 $

Unit Price

BOLT, HEXAGON SOCKET HEAD

278F31815000

3D8231810000

8,83 $

Unit Price

SEAL, DUST

4XCF31440000 4XCF31440000

39,19 $

Unit Price

SPRING, FRONT FORK

B8AF31410000 B8AF31410000

Not available

BOLT, CAP

1FCF31111000 1FCF31111000

12,73 $

Unit Price

O-RING

2JGF31470000 2JGF31470000

5,32 $

Unit Price

RING, SNAP

31BF31530000 31BF31530000

0,68 $

Unit Price

UNDER BRACKET COMP

BFMF33400000 BFMF33400000

Not available

SEAL, DUST

B63F34620000 B63F34620000

7,47 $

Unit Price

RACE, BALL 1

1S9F34110000 1S9F34110000

16,13 $

Unit Price

BOLT 1

4D0F33460000 4D0F33460000

11,25 $

Unit Price

PLUG, HOLE

1DRF312G0200 1DRF312G0200

4,86 $

Unit Price

HOLDER, BRAKE HOSE

BFMF58750000 BFMF58750000

Not available

BOLT, FLANGE DEEP RECESS

95E320601000 95E320601000

0,30 $

Unit Price

HOLDER, BRAKE HOSE

BFMF58760000 BFMF58760000

Not available

BOLT, FLANGE DEEP RECESS

95E320601000 95E320601000

0,30 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.

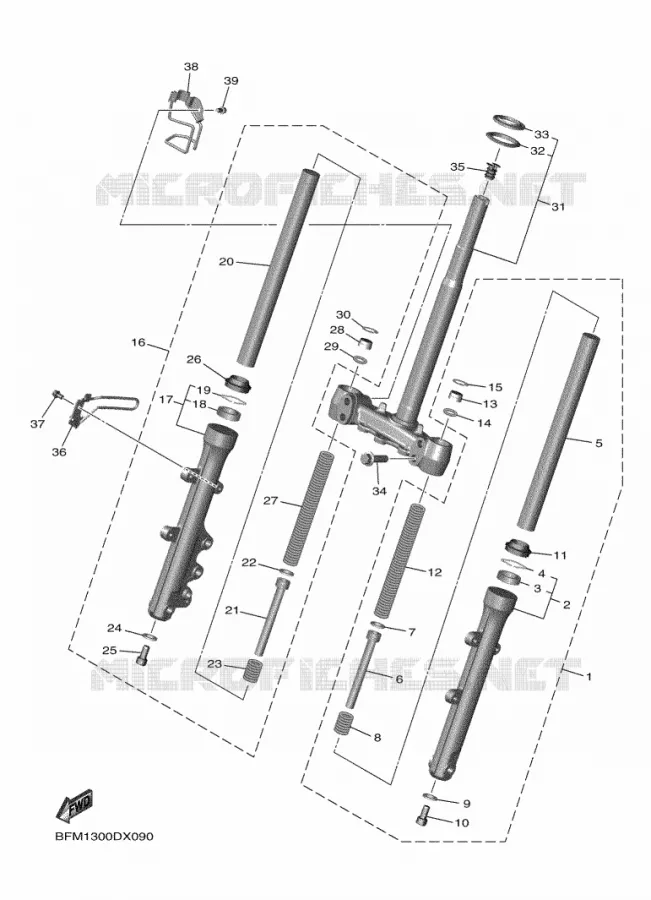

Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FRONT FORK of your Yamaha NEO'S of 2022. Let us know if you have any questions.
