WATER PUMP

RADIATOR / HOSES FOR YAMAHA XSR 2024

OIL PUMP

Item numbers

RADIATOR COMP

B7N124610000 B7N124610000

393,09 $

Unit Price

BLOWER ASSY

B7N124050000

BME124050100

542,03 $

Unit Price

BOLT, BLOWER HOLDING

5GJ126750000 5GJ126750000

5,44 $

Unit Price

NUT 1

5YPE26710000 5YPE26710000

7,26 $

Unit Price

COVER RADIATOR

B7N124670000 B7N124670000

18,58 $

Unit Price

BOLT, HEX. SOCKET BUTTON

901110616100

901110615100

2,56 $

Unit Price

COLLAR (3L1)

903870771700 903870771700

9,97 $

Unit Price

RIVET

902690500500 902690500500

3,65 $

Unit Price

CAP, RADIATOR

5SL124620000

5SL124620100

34,90 $

Unit Price

CAP, GREASE NIPPLE

663451190100 663451190100

3,13 $

Unit Price

STAY 2

B7N126380100 B7N126380100

39,98 $

Unit Price

BLOT, FLANGE DEEP RECESS

95D320601200 95D320601200

0,41 $

Unit Price

GROMMET (29L)

904801536300 904801536300

9,09 $

Unit Price

COLLAR

903870615800 903870615800

2,96 $

Unit Price

GUIDE, CABLE 2

B7N261320000 B7N261320000

38,92 $

Unit Price

BOLT

913420603000 913420603000

0,83 $

Unit Price

WASHER, PLATE

902010603300 902010603300

0,65 $

Unit Price

HOSE 1

B7N1243A0000 B7N1243A0000

53,32 $

Unit Price

CLIP (3G0)

904671003900 904671003900

6,46 $

Unit Price

CLAMP

904641600300 904641600300

2,39 $

Unit Price

CLIP (3G0)

904671003900 904671003900

6,46 $

Unit Price

BRACKET 1

BEA2175T0000 BEA2175T0000

26,02 $

Unit Price

DAMPER, FLASHER 1

B7N833210000 B7N833210000

5,63 $

Unit Price

COLLAR

903870617000 903870617000

4,36 $

Unit Price

BOLT, FLANGE

901050617400

958170601600

3,30 $

Unit Price

NUT, SPRING

901830507600

90183050A600

4,94 $

Unit Price

DAMPER 8

2C02847N0000 2C02847N0000

1,29 $

Unit Price

BRACKET 2

BEA2175U0000 BEA2175U0000

26,02 $

Unit Price

DAMPER, FLASHER 1

B7N833210000 B7N833210000

5,63 $

Unit Price

COLLAR

903870617000 903870617000

4,36 $

Unit Price

BOLT, FLANGE

901050617400

958170601600

3,30 $

Unit Price

NUT, SPRING

901830507600

90183050A600

4,94 $

Unit Price

DAMPER 8

2C02847N0000 2C02847N0000

1,29 $

Unit Price

COVER, SIDE 5

BEA2171E0000 BEA2171E0000

14,67 $

Unit Price

BOLT, HEX. SOCKET BUTTON

901110505500

901110505100

2,48 $

Unit Price

COLLAR

903870503500 903870503500

6,10 $

Unit Price

COVER, SIDE 6

BEA2171X0000 BEA2171X0000

18,87 $

Unit Price

BOLT, HEX. SOCKET BUTTON

901110505500

901110505100

2,48 $

Unit Price

COLLAR

903870503500 903870503500

6,10 $

Unit Price

TANK, RECOVERY

1RC218710000 1RC218710000

42,74 $

Unit Price

CAP

B7N218750000 B7N218750000

30,36 $

Unit Price

ELBOW

1RC218280000 1RC218280000

6,35 $

Unit Price

PIPE, BREATHER

B7N218260000 B7N218260000

18,82 $

Unit Price

CLIP (16G)

904670807500

904670802100

7,43 $

Unit Price

PROTECTOR 1

B7N228250000 B7N228250000

6,13 $

Unit Price

PIPE 1

B7N218160000 B7N218160000

23,20 $

Unit Price

COVER

1RC2172W0000 1RC2172W0000

23,51 $

Unit Price

NUT(1KT)

901790552300 901790552300

8,74 $

Unit Price

GROMMET (420)

904801320300

904801415300

10,82 $

Unit Price

COLLAR

903870628500 903870628500

3,55 $

Unit Price

COLLAR

1RC217490000 1RC217490000

3,21 $

Unit Price

CLIP (16G)

904670807500

904670802100

7,43 $

Unit Price

BOLT, HEXAGON SOCKET HEAD

901100643400

901100623300

5,37 $

Unit Price

COLLAR

1RC217480000 1RC217480000

5,93 $

Unit Price

BOLT, BUTTON HEAD

920120503000 920120503000

1,04 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.

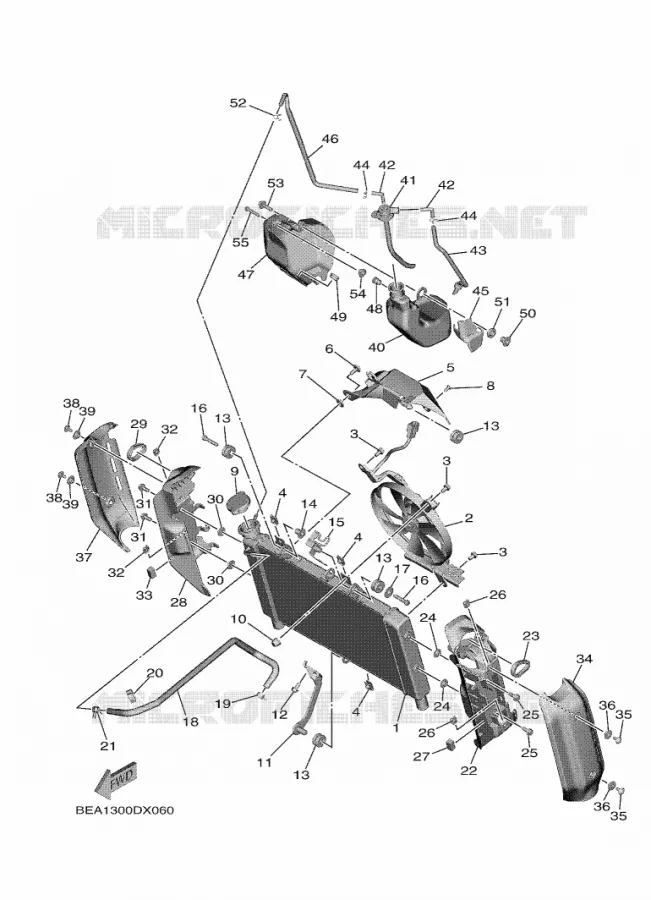

Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the RADIATOR / HOSES of your Yamaha XSR 900 of 2024. Let us know if you have any questions.
