FRONT MASTER CYLINDER

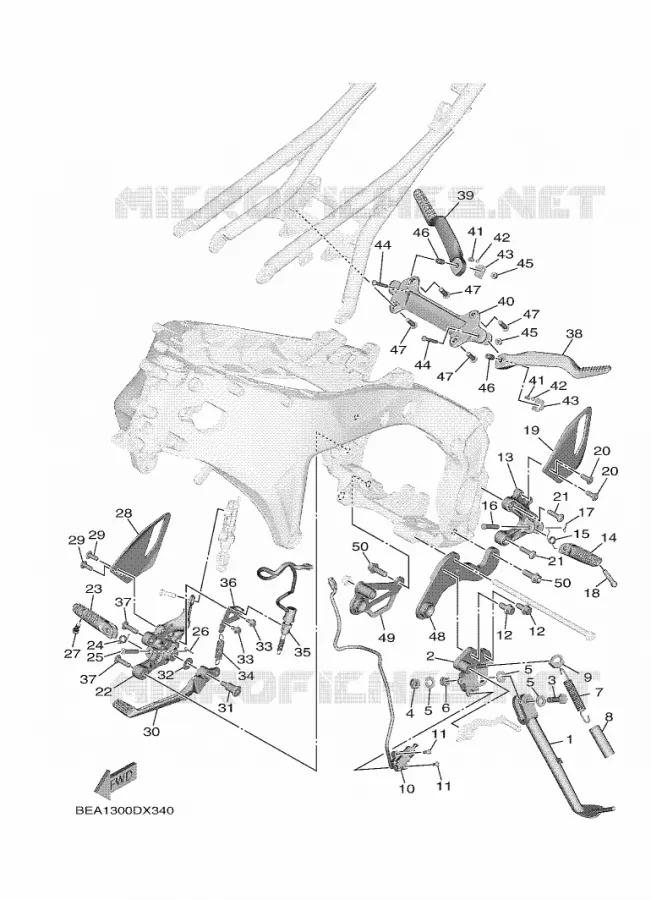

STAND / FOOTREST FOR YAMAHA XSR 2024

REAR BRAKE MASTER CYLINDER

Item numbers

STAND, SIDE

B7N273110000 B7N273110000

75,23 $

Unit Price

BRACKET, SIDE STAN

B7N273210000 B7N273210000

176,85 $

Unit Price

BOLT

901011003400 901011003400

13,82 $

Unit Price

NUT, SELF-LOCKING

901851001200 901851001200

7,59 $

Unit Price

WASHER, PLATE

902011007500 902011007500

2,56 $

Unit Price

COLLAR

903871002000 903871002000

15,07 $

Unit Price

SPRING TENSION

905062601400 905062601400

11,99 $

Unit Price

HOSE (L60)

90445197J200 90445197J200

7,38 $

Unit Price

LINK, SIDE STAND

B7N273150000 B7N273150000

2,97 $

Unit Price

SWITCH, SIDE STAND

B7N825660000

B7N825660100

83,95 $

Unit Price

SCREW

901490503700

901490503800

2,95 $

Unit Price

BOLT, FLANGE

901051019500

Not available

BRACKET 2

BEA274420000 BEA274420000

146,58 $

Unit Price

FOOTREST 3

B7N274510000 B7N274510000

23,02 $

Unit Price

SPRING, TORSION

905081813400 905081813400

9,01 $

Unit Price

PIN, CLEVIS

917010804000

917020804000

3,88 $

Unit Price

PIN, COTTER

914022501500

914902502000

3,93 $

Unit Price

BOLT

901090823100

901090820200

5,30 $

Unit Price

PLATE 1

BEA274450000 BEA274450000

82,73 $

Unit Price

BOLT, HEX. SOCKET BUTTON

901110809300 901110809300

3,02 $

Unit Price

BOLT (3XF1)

901100822000 901100822000

6,16 $

Unit Price

BRACKET 3

BEA274430000 BEA274430000

189,65 $

Unit Price

FOOTREST 4

B7N274610000 B7N274610000

23,02 $

Unit Price

SPRING, TORSION

905081813500 905081813500

9,42 $

Unit Price

PIN, CLEVIS

917010804000

917020804000

3,88 $

Unit Price

PIN, COTTER

914022501500

914902502000

3,93 $

Unit Price

BOLT

901090823100

901090820200

5,30 $

Unit Price

PLATE 2

BEA274460000 BEA274460000

82,73 $

Unit Price

BOLT, HEX. SOCKET BUTTON

901110809300 901110809300

3,02 $

Unit Price

PEDAL, BRAKE

BEA272110000 BEA272110000

153,38 $

Unit Price

BOLT

4C8274340000

4C8274341000

23,55 $

Unit Price

WASHER 6154275100

902010810300 902010810300

3,38 $

Unit Price

BOLT, FLANGE DEEP

95D020601200 95D020601200

0,29 $

Unit Price

SPRING, TENSION

905061802200 905061802200

6,62 $

Unit Price

STOP SWITCH ASSY

BAM825300000

Not available

STAY STOP SWITCH

B7N2144G0000 B7N2144G0000

12,48 $

Unit Price

BOLT (3XF1)

901100822000 901100822000

6,16 $

Unit Price

FOOTREST, REAR 1

BEA274310000 BEA274310000

264,94 $

Unit Price

FOOTREST, REAR 2

BEA274410000 BEA274410000

264,94 $

Unit Price

BRACKET 4

BEA2741L0000 BEA2741L0000

397,36 $

Unit Price

SPRING, COMPRESSION

905011500100 905011500100

2,59 $

Unit Price

BALL

935010401100 935010401100

0,74 $

Unit Price

WASHER, SPECIAL

5JJ274370100 5JJ274370100

10,14 $

Unit Price

BOLT, BUTTON HEAD

920170604000 920170604000

2,61 $

Unit Price

NUT, U FLANGE

956070620000

956040620000

4,30 $

Unit Price

COLLAR (8H9)

903870669700 903870669700

9,76 $

Unit Price

SCREW

901490805800 901490805800

5,44 $

Unit Price

STAY, MUFFLER 1

B7N214451000 B7N214451000

179,10 $

Unit Price

STAY, MUFFLER 2

B7N214461000 B7N214461000

102,33 $

Unit Price

BOLT, FLANGE

901051045200

901051018900

9,30 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the STAND / FOOTREST of your Yamaha XSR 900 35KW A2 of 2024. Let us know if you have any questions.
